Analog Input
Two card types (Cards are physically identical). LINE card can be upgraded to MIC/LINE by license.
8 ch. LINE input
8 ch. MIC/LINE input – Features…
Phantom power
Mic pre gain
Phase invert
Selectable max. line input level
+9 dBu to +30 dBu in steps of 0.1 dBLong Product Description (150 words or less): AD conversion for the DAD and Penta module product lines.
The options card adds Dante connectivity to our module systems, though the Pentas 721s includes this Dante module are standard feature.
Dante/AES67 Module
- 64 ch. Dante interface
- Support for AES67 with SAP
- Support for Dante Domain Manager
- Network delay setting up to 41 msec.
Penta - Audio Delay Processor
SPQ Card serves different functions for DAD Ax32, Penta 720 and 721s, based on different software:
The programmable delay for up to 128 ch.
Individual delay pr. channel
128 ‘channel-seconds of delay’
128 ch. can be delayed up to 1 sec.
1 ch. Can be delayed up to 128 sec.
Or any combination in-between
Delay can be set in steps of 1 sample
Suitable to achieve lipsync
You can add a wide variety of optional I/O cards to the modular Penta 721s and Penta 720. Once you start mixing and matching up to 8 card slots, you will find that the system is extremely flexible and therefore may be tailored to fit any audio-routing and/or conversion task imaginable.
ModularDual MADI Module
2 x MADI I/O
2 x 64 channels
Choice of physical interface
Select type of SFP module
Optical, MM or SM
Coax
Redundant mode
Auto switch-over in case of signal loss
Can operate as dual HotLink
2 x 128 ch.
In a world that seems to be gradually moving towards working and mixing 'in the box', there are still situations where hands-on control is second to none.
Monitor control is one of those cases. Enter MOM - our Monitor Operating Module.
MOM is the perfect, tactile match for one or more AVID MTRX, AVID MTRX Studio, AX32, DX32, Penta 720, and Penta 721s units equipped with the PRO|MON|3 monitor control license. The MOM is a remote control, connected via Ethernet, and no audio is actually passing through the unit. The audio-routing magic happens within the AX32 or DX32R and is set up via the DADman software. But once you connect the MOM, the magic now resides right at your fingertips. Main Features:
MOM will give you everything you would expect from a first-grade hardware monitor-controller:
Large Top-Quailty Rotary Knob
Switching Between Different Sources
Switching Between Different Monitor Configurations (from Mono to Atmos)
Mute/Solo Individual Monitor Channels
Talkback
Dim
Cut
Reference Level
Next-Generation Enterprise, Modular Router and Interface System'
Key Features
8 AES/EBU I/O and 1-3 MADI I/O
8 card slots for analog and digital I/O cards supporting hot-swop
IP audio L3 Ethernet I/O powered by Dante
TCP/IP control via NTP Router Control System and Stand alone control applications for PC
Single or Dual power supply
Key Benefits
Analogue and Digital audio interfacing
Each of the 8 expansion slots can be independent or combined domain properties. Allowing separate sample rate, clock sources and IP Submask independence.
Interfacing and routing of embedded audio in video SDI SD/HD/3G signals
Flexible patching and routing of digital audio signals providing
Stand alone IP audio interface and format converter
Interface for NTP TDM router systems
Low latency, tightly synchronised, transport of uncompressed audio over IP networks using off the shelf switches
The PENTA 721s has 1 large user-configurable slot for one of the seven optional I/O cards including a 128 ch Dante interface. There is a slot for the optional Dual MADI Module labeled Optical I/O and includes as standard a Dante/AES67 Interface using the two Ethernet ports on the rear.
The large slot can be configured with any one of the seven available analog and digital cards, in addition to the digital interfaces provided on the base unit. Check out the features of each of the available Penta I/O cards here. Signal Routing
PENTA 721s include a 512×512 multiplexer, enabling all analog and digital inputs and outputs to be routed in any combination; this enables the unit to also split signals for advanced signal distribution. The multiplexer can be used to establish the static connections of the signal inputs and outputs, and furthermore, it incorporates soft switching with a fade down and fade up the functionality of the signal level. Soft switching ensures that setting or changing a signal path can be made without any audible click or artifact.

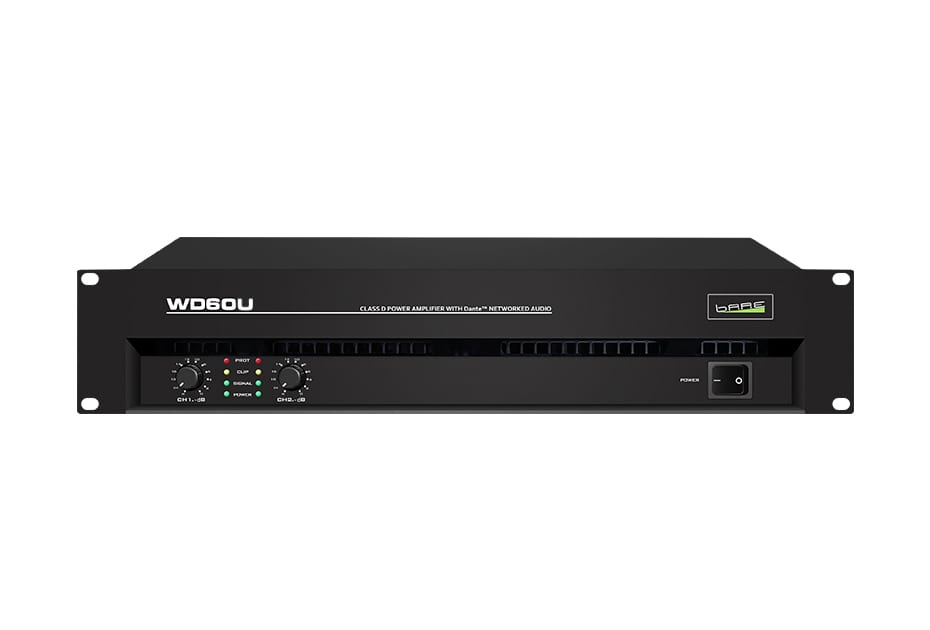

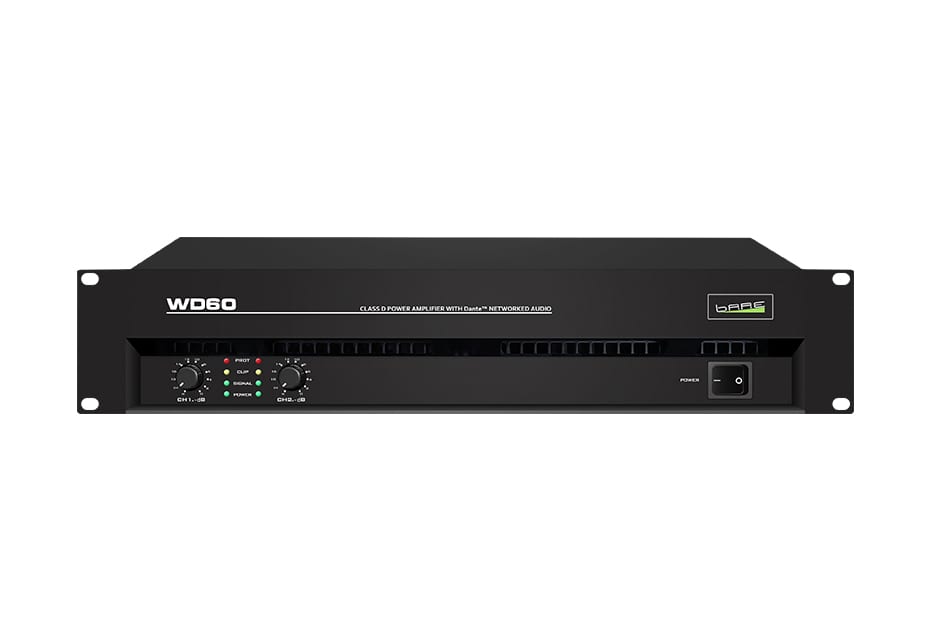

2 x 60 Watt Commercial Amplifier with Direct Drive Technology, Dante Networking, DDM Ready and Energy Star Certification. Delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations. Provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. FAD602 is easy to install and operate – even for non-technical personnel. Simply put, the FAD602 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.
It also consumes less mains power than competing models, this amazing technology makes it possible to design and build powerful amplifier systems that not only save money on the electrical bill, but also reduce the requirements and cost at the installation for the mains supply. In fact, it is likely that installation can be done utilizing the in-place mains infrastructure. This adds up to significant installation and operational savings and protects the environment.
2 x 240 Watt Commercial Amplifier with Direct Drive Technology, Dante Networking, DDM Ready and Energy Star Certification. Delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations. Provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. FAD2402 is easy to install and operate – even for non-technical personnel. Simply put, the FAD2402 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.
It also consumes less mains power than competing models, this amazing technology makes it possible to design and build powerful amplifier systems that not only save money on the electrical bill, but also reduce the requirements and cost at the installation for the mains supply. In fact, it is likely that installation can be done utilizing the in-place mains infrastructure. This adds up to significant installation and operational savings and protects the environment.
Energy Star Certified, Dante inputs, DDM ready and 2x120 Watt amplifier with Direct Drive Technology delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations. Provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. FAD1202 is easy to install and operate – even for non-technical personnel. Simply put, the FAD1202 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system. It also consumes less mains power than competing models, this amazing technology makes it possible to design and build powerful amplifier systems that not only save money on the electrical bill, but also reduce the requirements and cost at the installation for the mains supply. In fact, it is likely that installation can be done utilizing the in-place mains infrastructure. This adds up to significant installation and operational savings and protects the environment.
Equipped with Dante technology, the ZeeVee ZyPerUHD encoder will enable users to route any audio source within a ZyPerUHD deployment to a Dante network. Dante audio over IP includes support for features such as “human” readable names for all connected devices, automatic device discovery, one-click routing and low deterministic latency. In addition, it provides stable performance and enables automatic reconnection of system components after power cycles.
Eagles series audio interfaces are a Dante compatible networked audio technology device. They provide an economic solution for distributed audio via standard Ethernet switch and CAT5/CAT E6 cabling. They are PoE (power over ethernet) compatible, but can also be powered locally. They are available in 4input x 4output, all inputs/outputs can be set to either mic or line level.
Eagles series audio interfaces are a Dante compatible networked audio technology device. They provide an economic solution for distributed audio via standard Ethernet switch and CAT5/CAT E6 cabling. They are PoE (power over ethernet) compatible, but can also be powered locally. They are available in 4input x 4output, all inputs/outputs can be set to either mic or line level.
Eagles series audio interfaces are a Dante compatible networked audio technology device. They provide an economic solution for distributed audio via standard Ethernet switch and CAT5/CAT E6 cabling. They are PoE (power over ethernet) compatible, but can also be powered locally. They are available in 4input x 4output, all inputs/outputs can be set to either mic or line level.

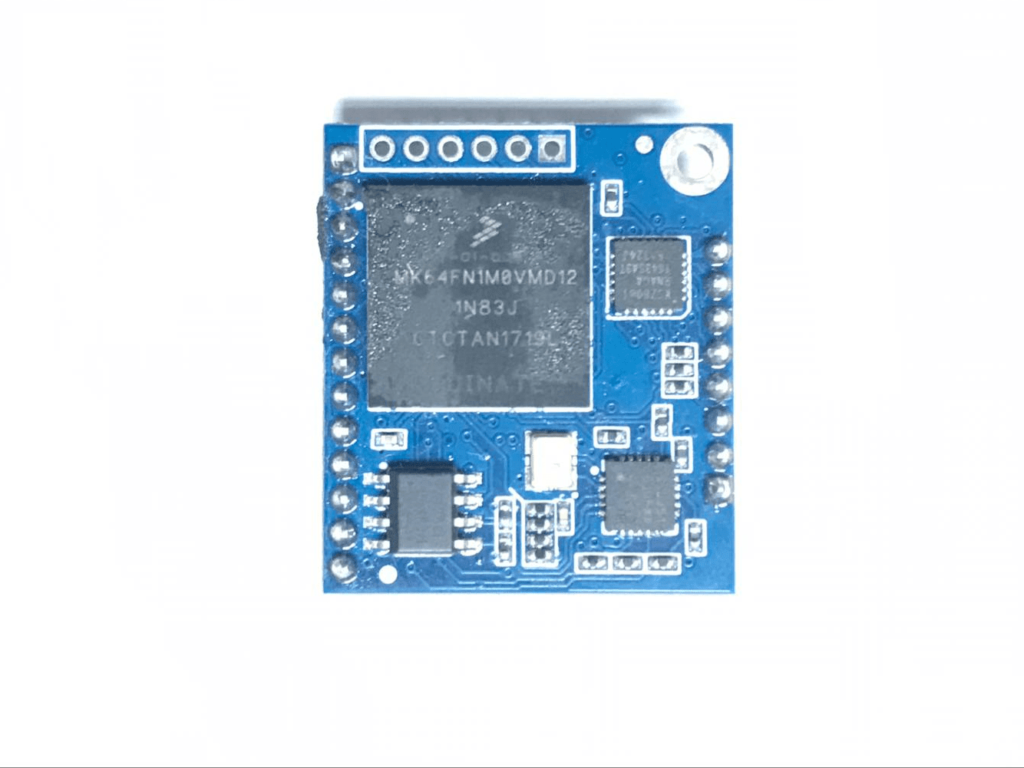

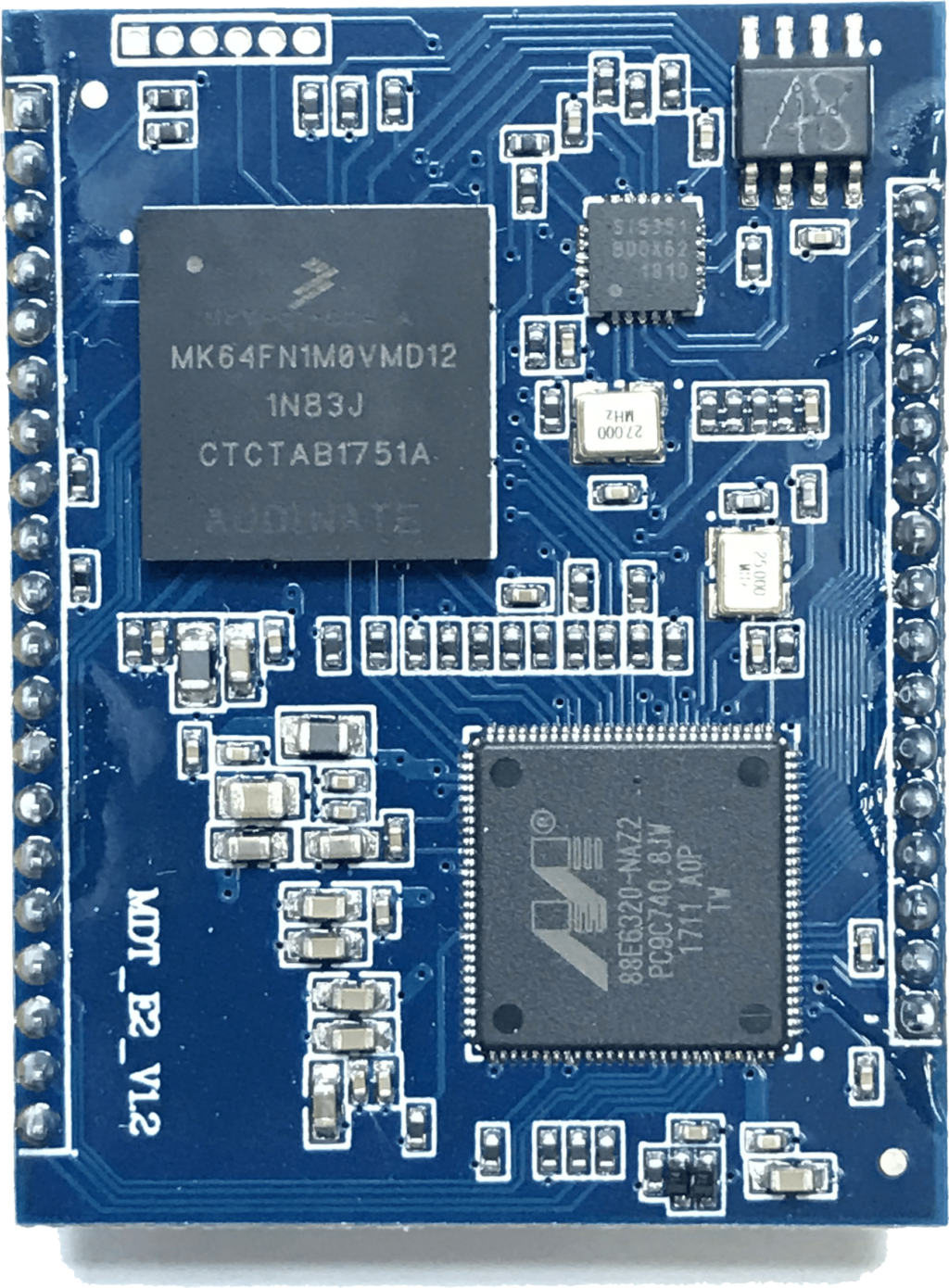

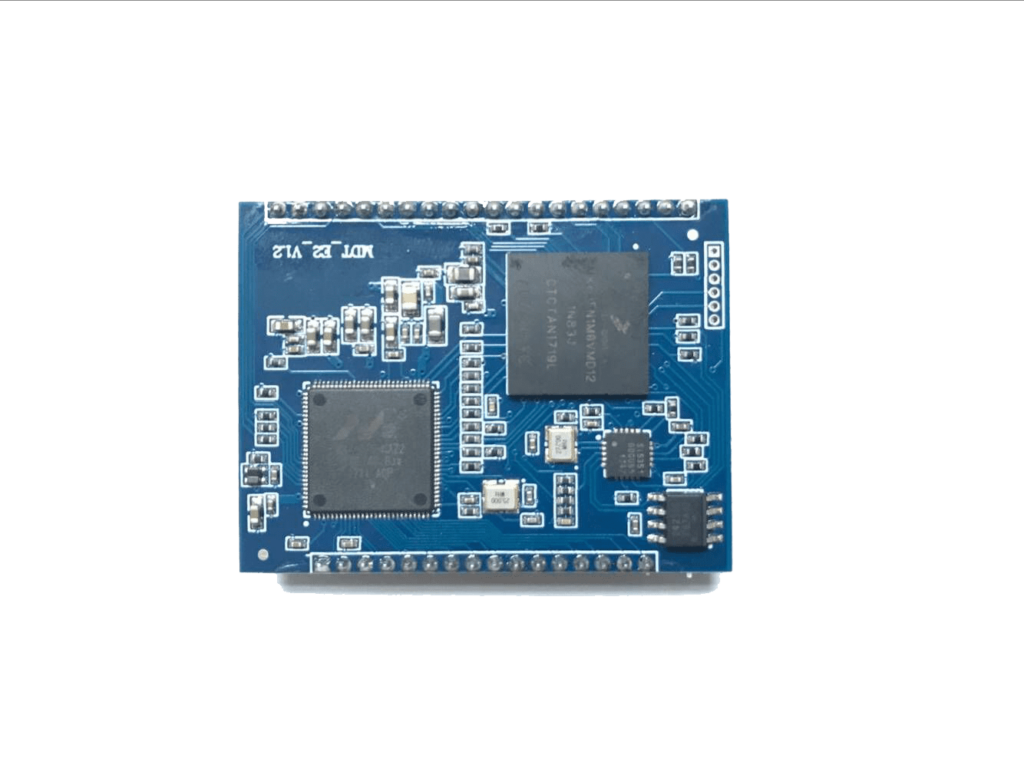

IF02_E2 is converted module with Dante audio in and analog audio out(balanced) , including single RJ45 and double RJ45, which can easily integrate power amplifier and active speaker into Dante audio network.
*E2 double network interface
*2 channel Dante network digital input, 2 channel analog output
*DC supply:±12V、+5V, +5V maximum operating current：400mA
*sample frequency 24bit-48k/96
*support PCM16、PCM24、PCM32 kinds of code
PA2310-D2 is a DSP class-D amplifier module used in active speakers. Based on DSP signal processing technology, network technology, class-D amplifier and switching power supply technology. Configured with 2-channel Dante input interface to easily integrate into Dante network audio system.
* 2*500W4Ω+ 1*1000W8Ω
*DSP process module: DA24CL/D
*support 180-265VAC input
*IPS colorful display
*Connect by 2*RJ45 of network or USB free-driver
PA1203-D2 is a DSP class-D amplifier module used in active speakers. Based on DSP signal processing technology, network technology, class-D amplifier and switching power supply technology. Configured with 2-channel Dante input interface to easily integrate into Dante network audio system.
* 2*500W4Ω or 1*1000W8Ω
*DSP process module: DA14CL/D
*support 180-265VAC input
*IPS colorful display
*Connet by 2*RJ45 of network or USB free-driver
PA1203-D2 is a DSP class-D amplifier module used in active speakers. Based on DSP signal processing technology, network technology, class-D amplifier and switching power supply technology. Configured with 2-channel Dante input interface to easily integrate into Dante network audio system.
* 2*500W4Ω or 1*1000W8Ω
*DSP process module: DA14CL/D
*support 180-265VAC input
*IPS colorful display
*Connet by 2*RJ45 of network or USB free-driver

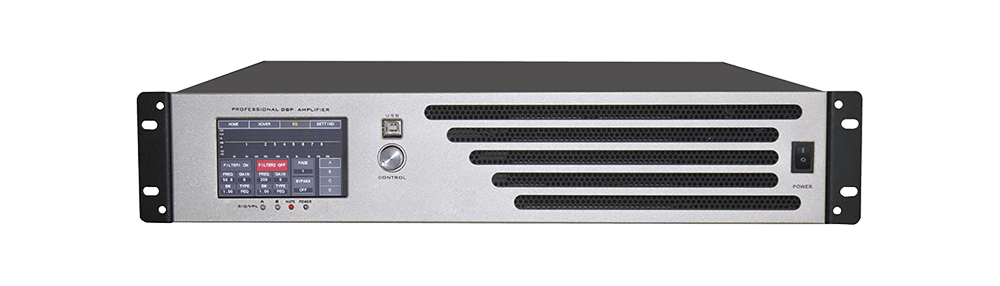

GPA410_D4 is a 4-channel class-D amplifiers with DSP functions and touch screen display, Integrated with 4 analog and 4 channel AES3 digital input, optional 4 channel Dante input. Each channel can select the signal independently and set the priority to realize the signal redundancy backup function. Power, current, voltage, temperature and impedance of power amplifier can be monitored in real time, and power limit and current and voltage limit can be set freely. Application used in performance and conference.
*support 4 channel *8Ω1000W
*support constant voltage and constant resistance: 8Ω, 4Ω, 100V, 70V
*FIR function, 4*2048 TAPS
*4.3 inch IPS display, 2U size
*Voltage operation with support for 180/264VAC
*Mconsole software control by network with 2*RJ45
NPA43-D4 is a 4*300W8Ω class-D amplifier, which configures with 4-channel Dante input interface and DSP processing solution such as compressor, limiter, noise gate, parameter equalization, matrix routing, delay, etc. Suitable for various scene with demands of sound reinforcement system. The whole series of products are equipped with TCP/IP communication interface, mobile phone App control, GPIO extension control and Mconsole unified management.
◆ Optional 4-channel Dante network audio input
◆ Support Mconsole and app TCON network control
◆ IPS color LCD
◆ Built in DSP digital processor
◆ Multiple control modes are supported: USB、TCP/IP、RS232、RS485
◆ Monitor the working state of power amplifier
◆ Call and standby the amplifier by remote
◆ Support balanced XLR input and unbalanced RCA input
◆ Support stereo, bridge, mono, matrix mode,switch by software
◆ Input sensitivity 0dBU / 6dbu setting by software or LCD
◆ Power on state: Power On/Standby
◆ Constant Pressure and Resistance support:100V、70V、8Ω、4Ω
NPA23-D2 is a 2*300W8Ω class-D amplifier, which configures with 2-channel Dante input interface and DSP processing solution such as compressor, limiter, noise gate, parameter equalization, matrix routing, delay, etc. Suitable for various scene with demands of sound reinforcement system. The whole series of products are equipped with TCP/IP communication interface, mobile phone App control, GPIO extension control and Mconsole unified management.
◆ Optional 2-channel Dante network audio input
◆ Support Mconsole and app TCON network control
◆ IPS color LCD
◆ Built in DSP digital processor
◆ Multiple control modes are supported: USB、TCP/IP、RS232、RS485
◆ Monitor the working state of power amplifier
◆ Call and standby the amplifier by remote
◆ Support balanced XLR input and unbalanced RCA input
◆ Support stereo, bridge, mono, matrix mode, switch by software
◆ Input sensitivity 0dBU / 6dbu setting by software or LCD
◆ Power on state: Power On/Standby
◆ Constant Pressure and Resistance support:100V、70V、8Ω、4Ω
DAP0306_D4 is a 3in6out analog professional audio processor, which can achieve a variety of functions as a DSP processor including an integrated compressor, limiter, frequency divider, decelerator, equalizer, mixing matrix, supports 7 brands input and 7 brands output PEQ. It also can be debugged and monitored quickly by exquisite intuitive Mconsole software, for the construction of professional audio amplification system and provides a wide operation space.
★96K24BIT sample rate
★4 input channels DEQ and 1024 FIR, 8 output channels 512*FIR
★Control interface: USB and RJ45 by TCPIP protocol, configuring RS232, RS485 central control interface, supporting GPIO external expansion control interface
★Support Mconsole and app TCON network control
★Support presets archiving and locking, hide setting parameters"

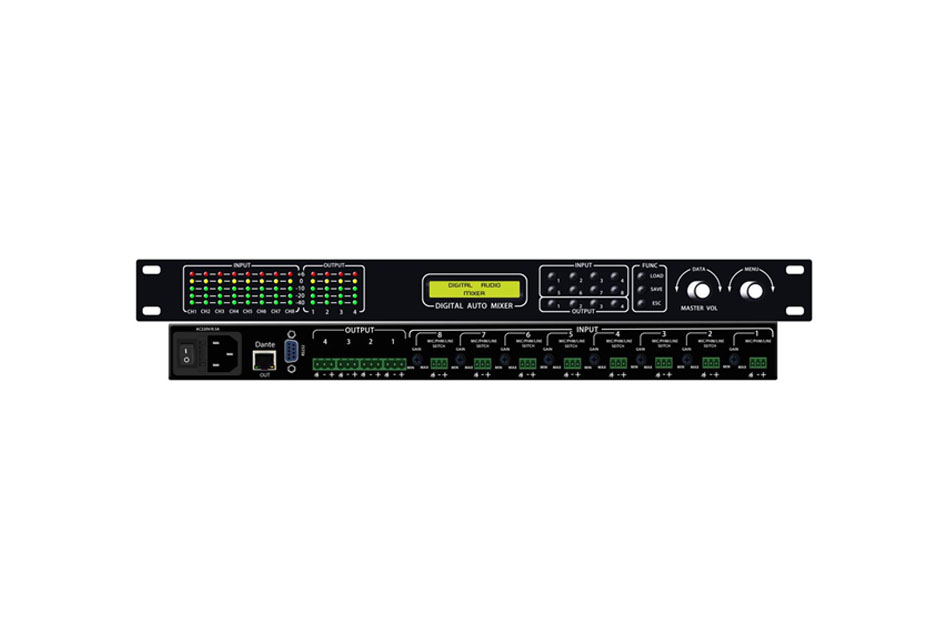

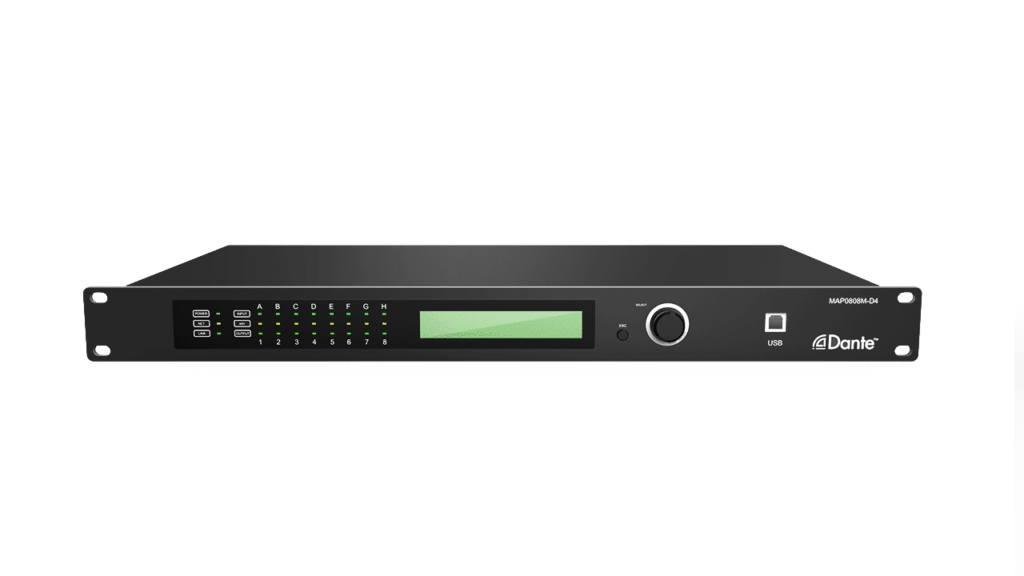

MAP08A_D8 is an 8-in-8-out auto-mixing media matrix, equipped with 8 analog inputs and 8 analog outputs, built-in feedback suppression, automatic mixing, AEC ,ANC, matrix mixing, equalizer, distributor, compressor and other DSP functions. This device supports 8 channel Dante network audio function expansion. It can be connected to computer software control via USB driver-free , RS232, RS485, TCP / IP connection and remote control. It is suitable for sound reinforcement projects in various occasions.
"★8 analog inputs and 8 analog outputs, support selecting microphone input and line input
★Optional 8-channel Dante network audio input and output
★9-level sensitivity adjustment for each microphone input
★48V phantom power switch for each input
★With AEC (echo cancellation), ANC (noise cancellation), use for interactive video teleconference
★Each input is equipped with AFC
★With Automix and matrix mixing
★Input 16 PEQs and output 10 PEQs
★With camera tracking control function
★Control interface: USB and RJ45 by TCPIP protocol, configuring RS232, RS485 central control interface, supporting GPIO external expansion control interface
★Support Mconsole and app TCON network control
★Support QB01A wire control
★Support presets archiving and locking, hide setting parameters"
MAP0808M_D4 is equipped with 8 analog inputs and 8 analog outputs, optional 4 channels Dante network audio input and output.
★8 analog inputs and 8 analog outputs, support selecting microphone input and line input
★Optional 4-channel Dante network audio input and output
★9-level sensitivity adjustment for each microphone input
★48V phantom power switch for each input
★Each input is equipped with AFC
★With Automix and matrix mixing
★Input 31 PEQs and output 10 PEQs
★With camera tracking control function
★Control interface: USB and RJ45 by TCPIP protocol, configuring RS232, RS485 central control interface, supporting GPIO external expansion control interface
★Support Mconsole and app TCON network control
★Support QB01A wire control
★Support presets archiving and locking, hide setting parameters"
DAP0408_D4 is a 4in8out analog professional audio processor, which can achieve a variety of functions as a DSP processor with integrated compressor, limiter, frequency divider, decelerator, equalizer, mixing matrix, supports 7 brands input and 7 brands output PEQ. It also can be debugged and monitored quickly by exquisite intuitive Mconsole software, for the construction of professional audio amplification system and provides a wide operation space.
★96K24BIT sample rate
★4 input channels DEQ and 1024 FIR, 8 output channels 512*FIR
★Control interface: USB and RJ45 by TCPIP protocol, configuring RS232, RS485 central control interface, supporting GPIO external expansion control interface
★Support Mconsole and app TCON network control
★Support presets archiving and locking, hide setting parameters"
Third party applications that use Dante Ready™ allow customers to purchase and activate Dante audio channels after installation using the Dante Activator tool in Dante Controller 4.5 or higher. Dante Activator is tied to an active Audinate user account and accepts standard credit card payments.
Activation instructions:
