Dante AVIO Adapters
Compact Dante interfaces for
Every Live Sound Challenge
Dante AVIO adapters connect analog, AES3, and USB gear to Dante systems. Compact, reliable, and ready to deploy fast, wherever the job takes you.
Dante AVIO adapters for Live are compact enough for your kit bag and rugged enough for the road, ready to deploy fast when it matters most.
Plug and Play
Plug into your gear, connect to the network, and start routing audio in Dante Controller.
Ready to Connect
Analog, AES3, and USB support to connect whatever the job requires.
Cable Built In
No digging around for cables. Everything you need to connect is already built in.
PoE Powered
No bulky power supplies to carry. Power and audio over a single Ethernet cable.
Plug into your gear, connect to the network, and start routing audio in Dante Controller.
Analog, AES3, and USB support to connect whatever the job requires.
No digging around for cables. Everything you need to connect is already built in.
No bulky power supplies to carry. Power and audio over a single Ethernet cable.
Dante AVIOs for Every Setup

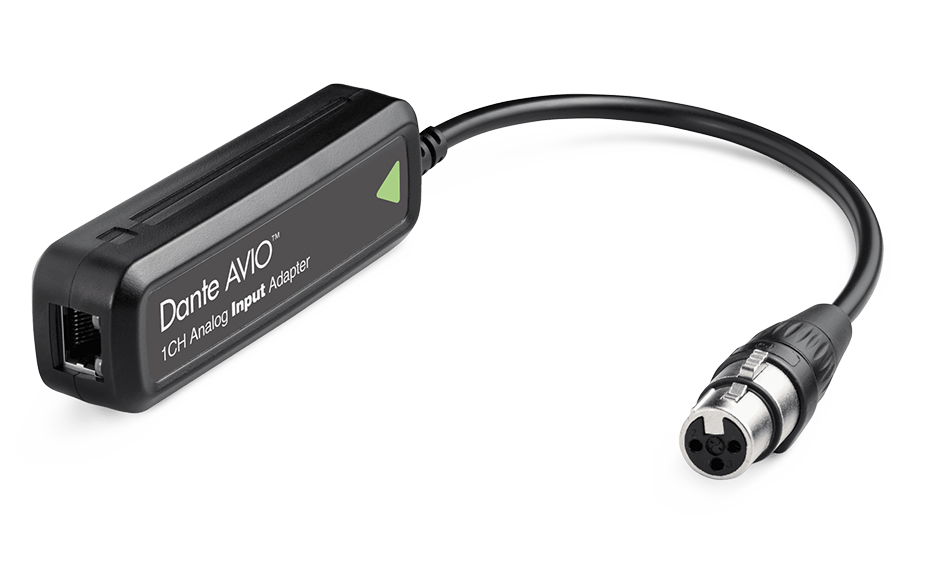

Dante AVIO Analog Input Adapters
Available in 1-Ch and 2-Ch models, bring wireless mic receivers, mixers, or any devices with a line-level output into Dante systems.
| Signal Flow | Analog → Dante |
| I/O | 1 in / 0 out or 2 in / 0 out |
| Audio Formats | Analog, Dante Audio over IP/AES67 |
| Connectors | XLR-F |
| Supported Sample Rates | 44.1/48/88.2/96 kHz |

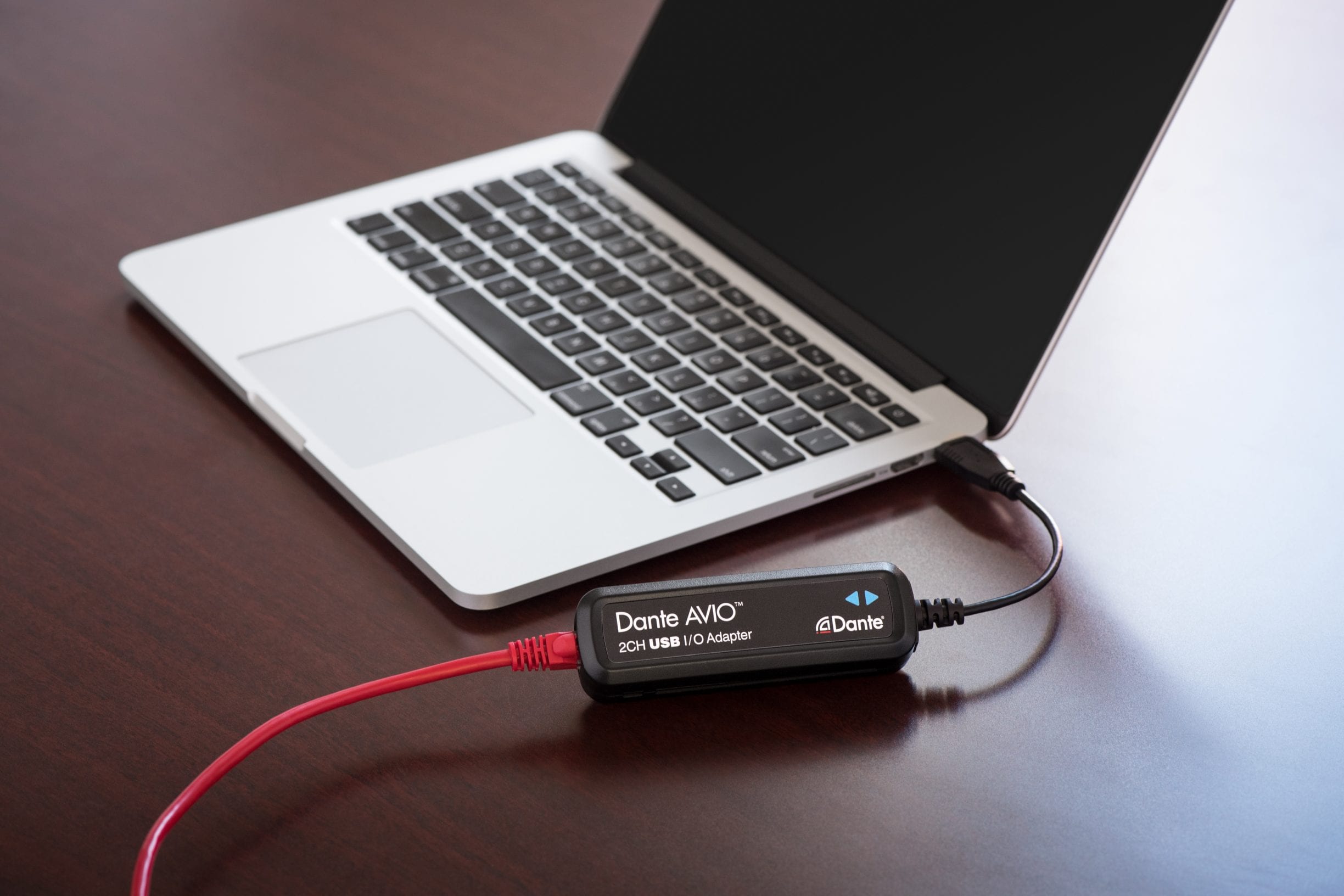

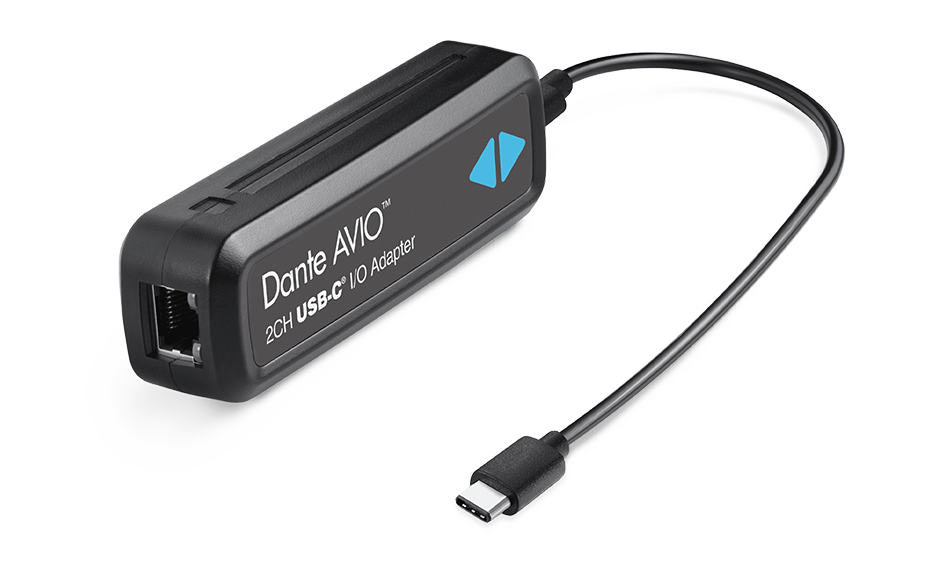

Dante AVIO USB Adapters
Available in USB-A and USB-C models, connect laptops, tablets, phones, and other USB devices to Dante systems with no software installation or drivers required.
| Signal Flow | USB ↔ Dante |
| I/O | 2 in / 2 out |
| Audio Formats | USB audio, Dante/AES67 |
| Connectors | USB-A or USB-C |
| Supported Sample Rates | 48 kHz |

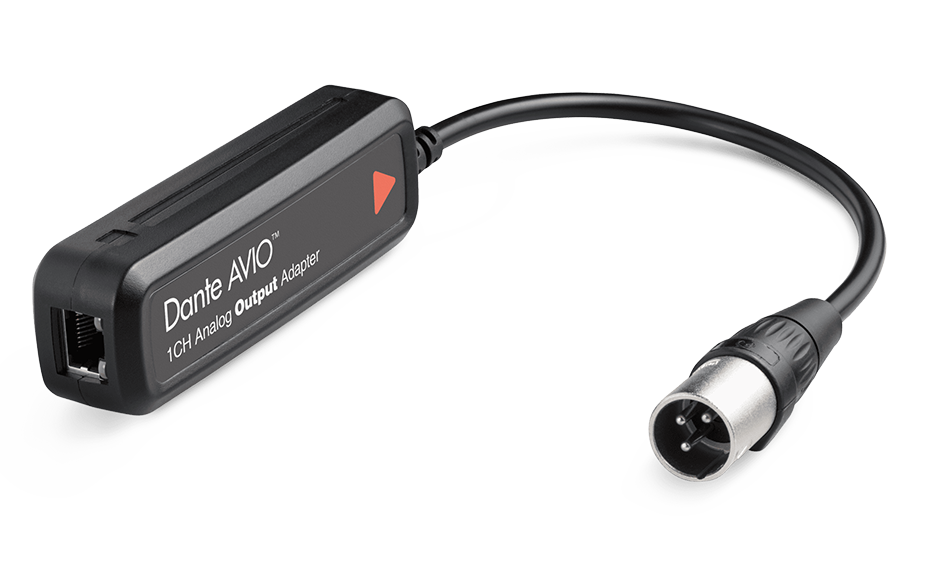

Dante AVIO Analog Output Adapters
Available in 1-Ch and 2-Ch models, route Dante audio to amplifiers, powered speakers, mixers, or any playback device.
| Signal Flow | Dante → Analog |
| I/O | 0 in / 1 out or 0 in / 2 out |
| Audio Formats | Analog, Dante Audio over IP/AES67 |
| Connectors | XLR-M |
| Supported Sample Rates | 44.1/48/88.2/96 kHz |

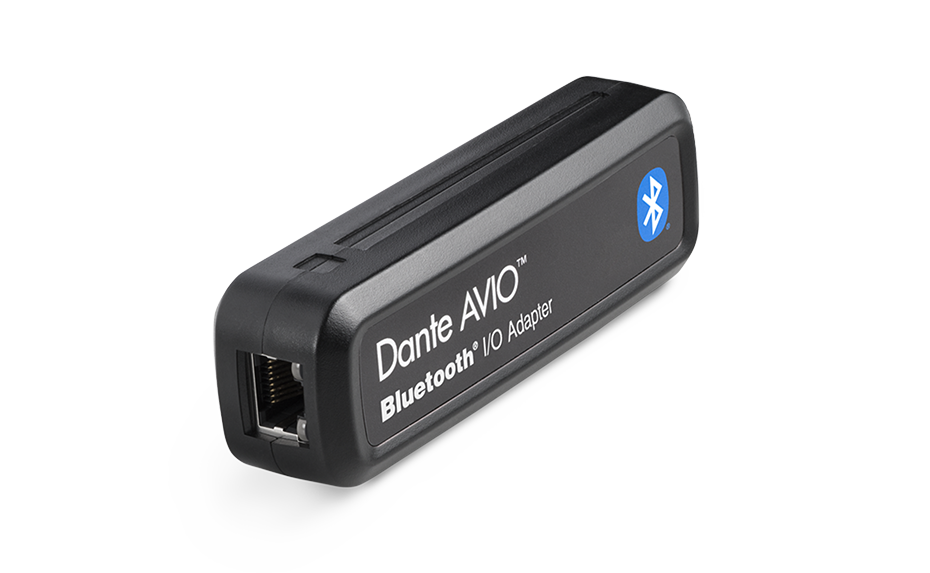

Dante AVIO Bluetooth Adapter*
Connect smartphones, tablets, and other Bluetooth devices to Dante systems for wireless audio playback.
| Signal Flow | Bluetooth ↔ Dante |
| I/O | 2 in / 1 out |
| Audio Formats | Bluetooth 5.0, Dante/AES67 |
| Connectors | Wireless |
| Supported Sample Rates | 48 kHz |
*Not available in the European Union

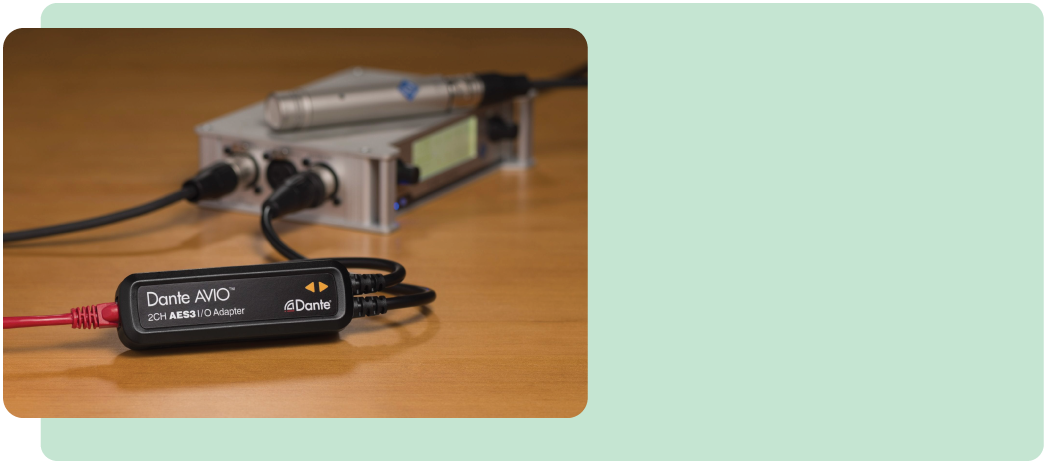

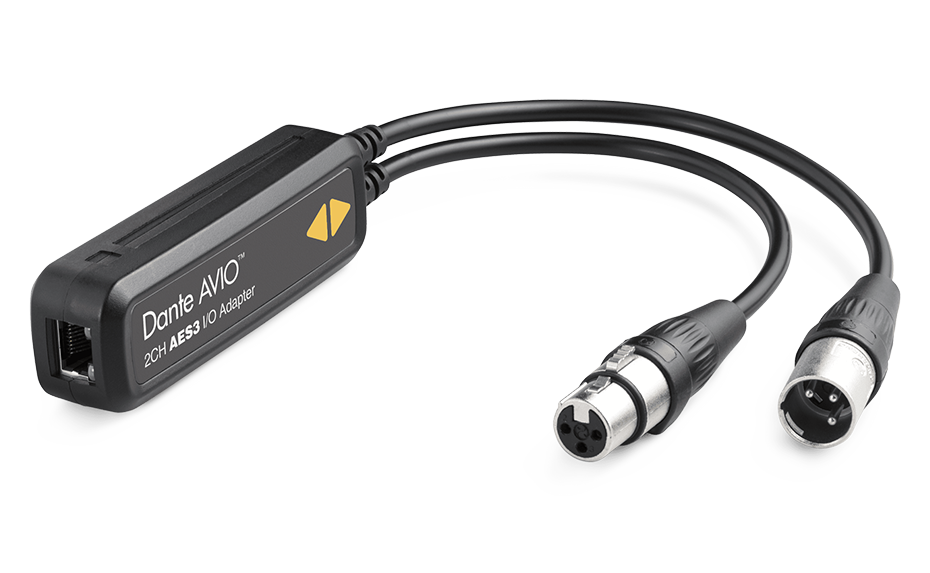

Dante AVIO AES3 Adapter
Bidirectional AES3 (AES/EBU) digital audio to Dante conversion in a single adapter, for effects processors, digital mixers, amplifiers, and other AES3-equipped gear.
| Signal Flow | AES ↔ Dante |
| I/O | 2 in / 2 out |
| Audio Formats | AES3 digital audio, Dante/AES67 |
| Connectors | XLR-F (input), XLR-M (output) |
| Supported Sample Rates | 44.1/48/88.2/96 kHz |
Need the full spec?
Download the datasheets
Everything You’d Expect from Dante
Don’t let the compact size fool you. Dante AVIO adapters deliver the reliable, bit-perfect audio reproduction and super-low 1ms network latency you’d expect from any Dante device, ensuring your audio arrives exactly as intended.
Keep the Gear You Love

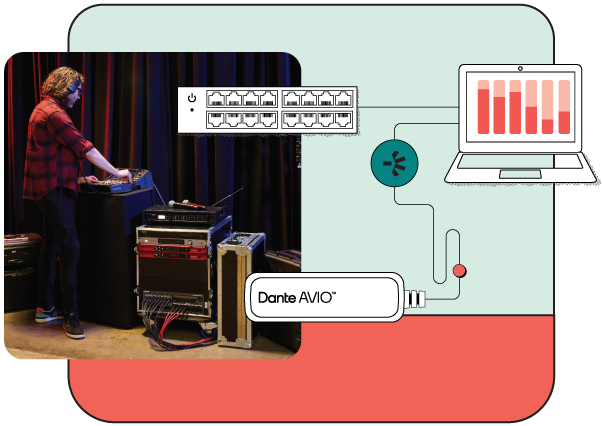

Convert the gear you know and trust to Dante without replacing it and use it alongside the latest Dante-enabled equipment. Once on the network, route audio anywhere, from front of house and monitors to overflow spaces and beyond.
Part of the Dante Family

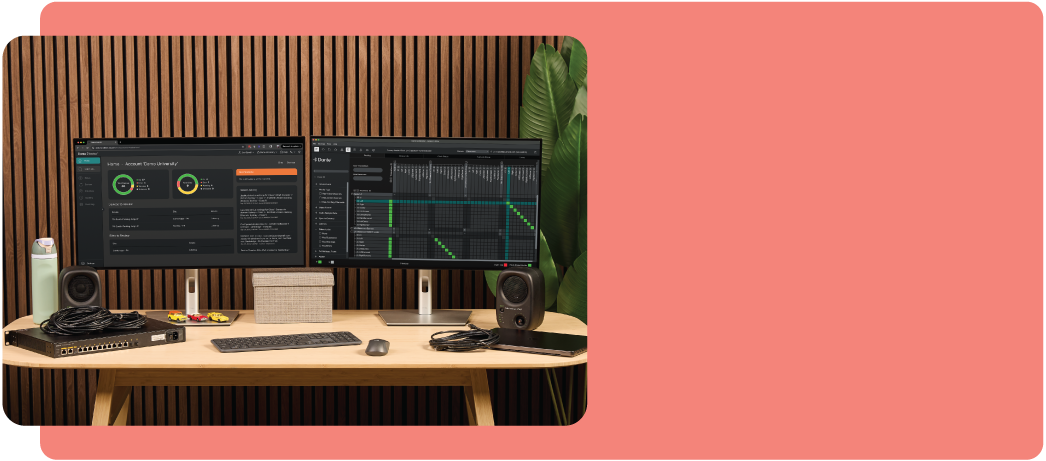

Dante AVIO adapters work within the broader Dante ecosystem, connecting with thousands of Dante-enabled devices across a wide range of manufacturers. Route audio and configure adapters directly in Dante Controller, the free software at the heart of every Dante system.
At Home on Any Stage
Houses of Worship
Expand a Dante-networked sanctuary system to connect worship spaces, overflow rooms, & beyond, all running over the network you already have.
Venues & Theaters
Accommodate touring productions and visiting acts by connecting their analog, AES3, and USB gear to your existing Dante house system.
Corporate & Campus Events
Connect laptops, playback systems, & analog sources to any Dante system for presentations, conferences, & events with minimal setup, wherever the event takes place.
Rental & Staging
Kit bag ready & compatible with any Dante system, Dante AVIO adapters are the versatile tools rental companies and touring engineers should always have on hand for whatever a client’s setup demands.
