Dante AVIO Install
Analog to Dante Connectivity for Any Install
Dante AVIO Install adapters provide a simple, cost-effective way to bring analog audio into any Dante-enabled system
Built for Permanent AV Installations
Industry-standard screw terminal connectors for fixed, permanent wiring in any install environment.
Power, audio, & control over a single network cable, with daisy chain support for up to four adapters per network drop, reducing switch port usage.
Snap multiple adapters together for surface, rack, or post installation, with mounting hardware included out of the box.
When to Use Dante AVIO Install
Specifying a NEW Dante system?
Add line mixers, amplifiers, DSPs and other analog endpoints to a broader Dante system design without adding complexity.
Retrofitting an EXISTING installation?
Bring existing analog equipment onto Dante without replacing it — protecting the client’s investment while integrating seamlessly with newer Dante-enabled devices.
Dante AVIO Install Adapter Range

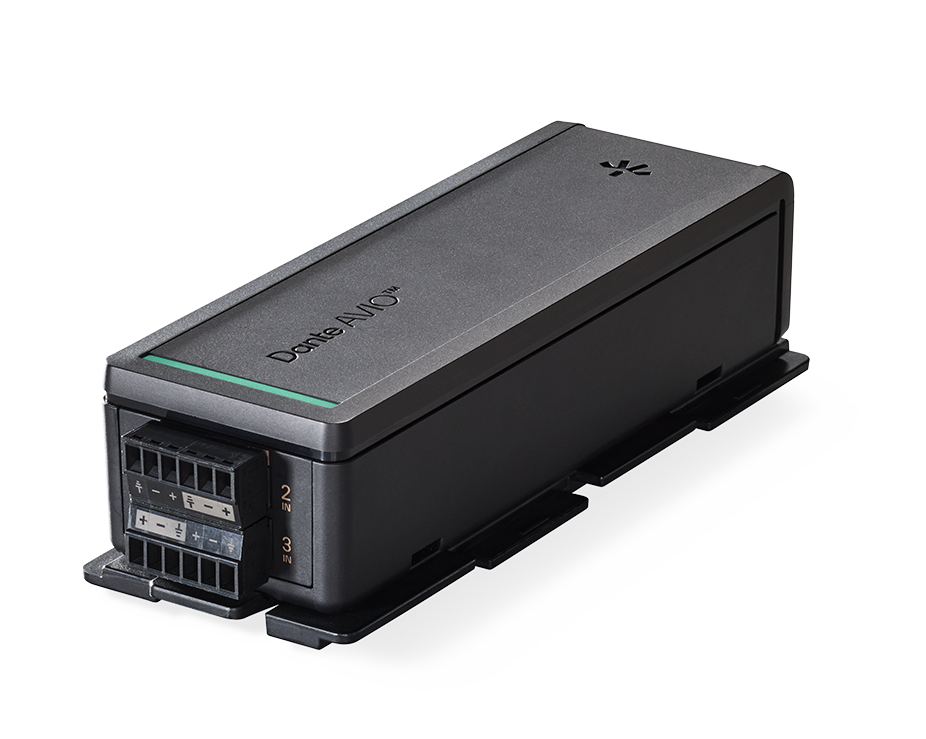

4-Ch Analog Input Adapter
| Signal Flow | Analog → Dante |
| I/O | 4 in/0 out |
| Sample Rate | [email protected]/48 kHz, [email protected]/96 kHz |
| Daisy Chain | Yes |

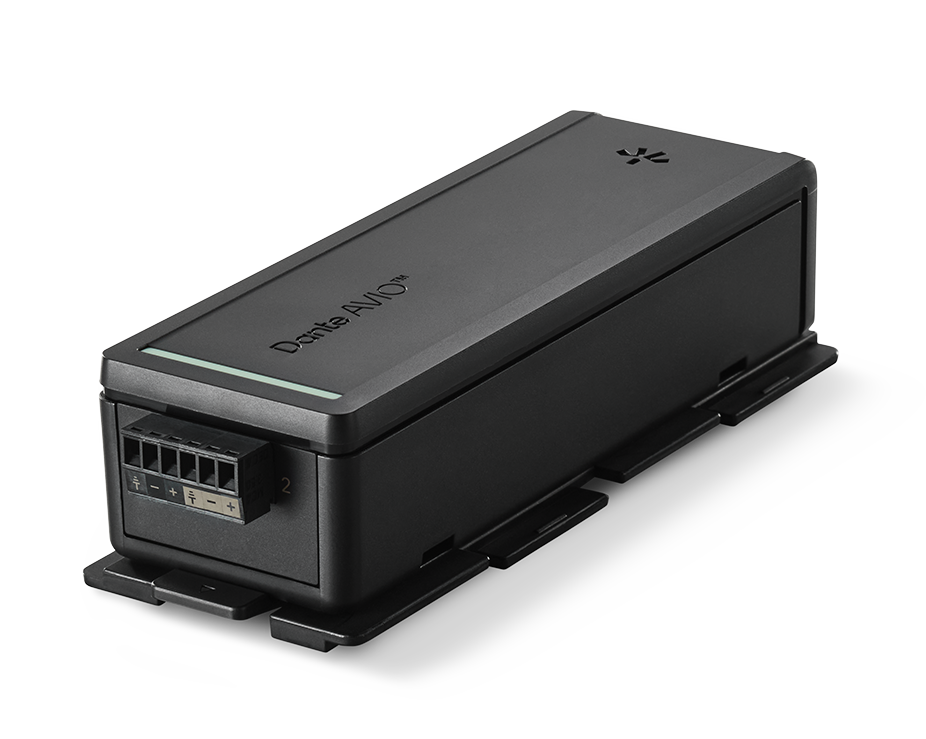

2-Ch Analog Input Adapter
| Signal Flow | Analog → Dante |
| I/O | 2 in/0 out |
| Sample Rate | 44.1/48/88.2/96 kHz |
| Daisy Chain | No |

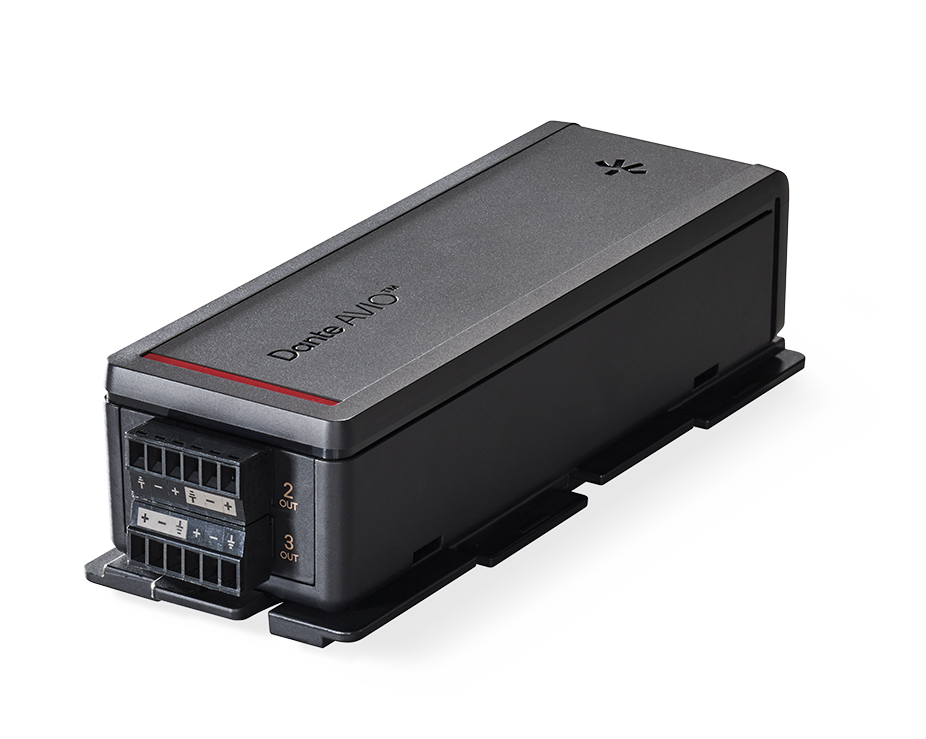

4-Ch Analog Output Adapter
| Signal Flow | Dante → Analog |
| I/O | 0 in/4 out |
| Sample Rate | [email protected]/48 kHz, [email protected]/96 kHz |
| Daisy Chain | Yes |

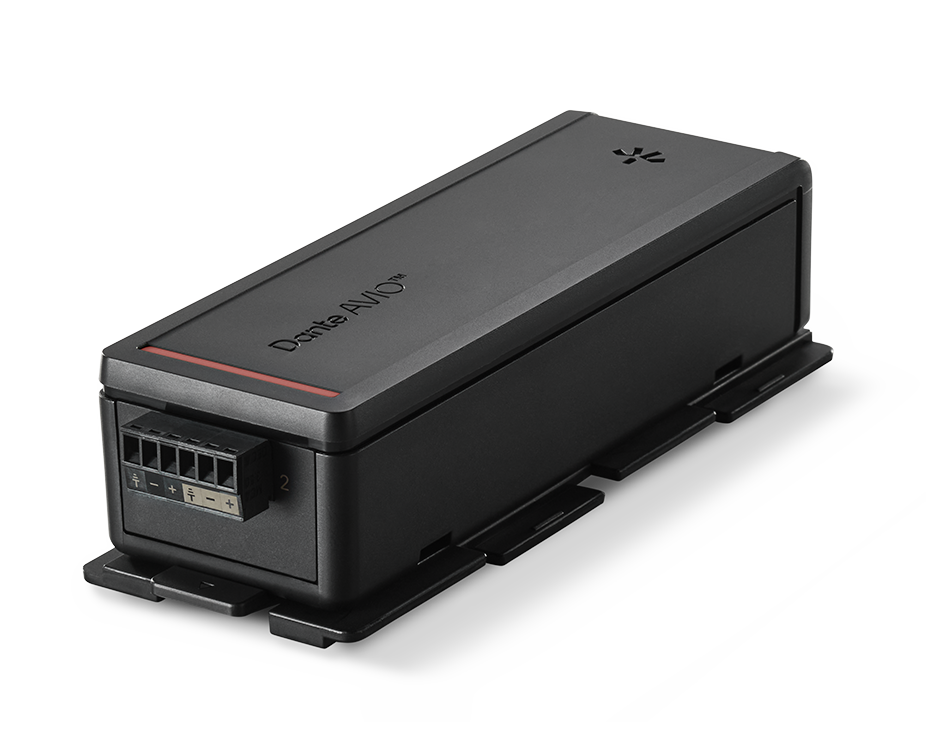

2-Ch Analog Output Adapter
| Signal Flow | Dante → Analog |
| I/O | 0 in/2 out |
| Sample Rate | 44.1/48/88.2/96 kHz |
| Daisy Chain | No |

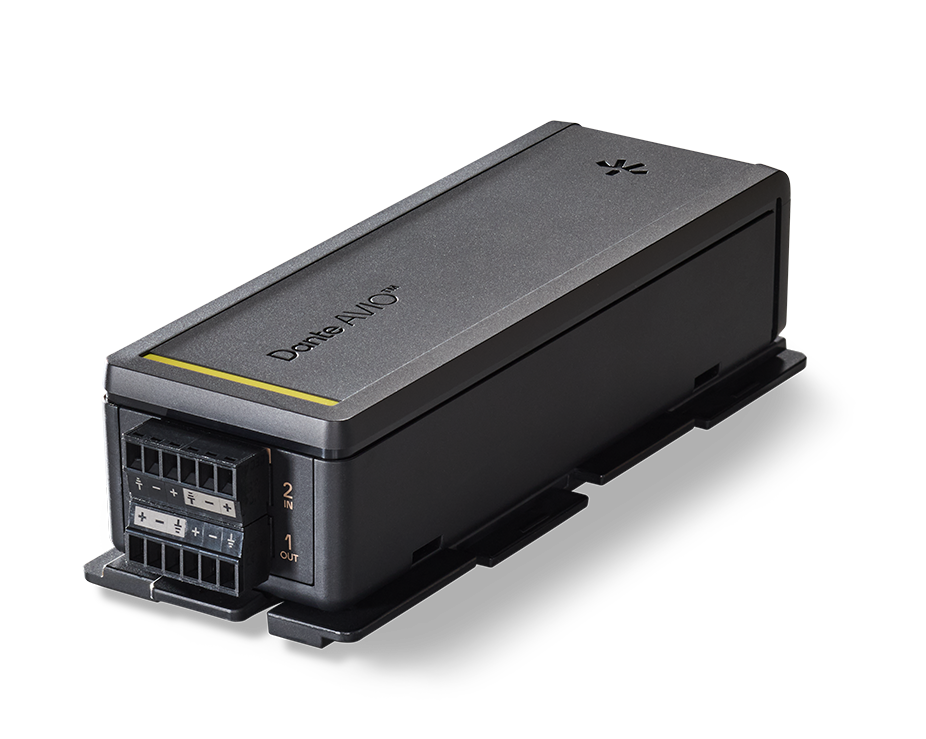

2-Ch In / 2-Ch Out Adapter
| Signal Flow | Bidirectional |
| I/O | 2 in/2 out |
| Sample Rate | 44.1/48/88.2 kHz |
| Daisy Chain | Yes |

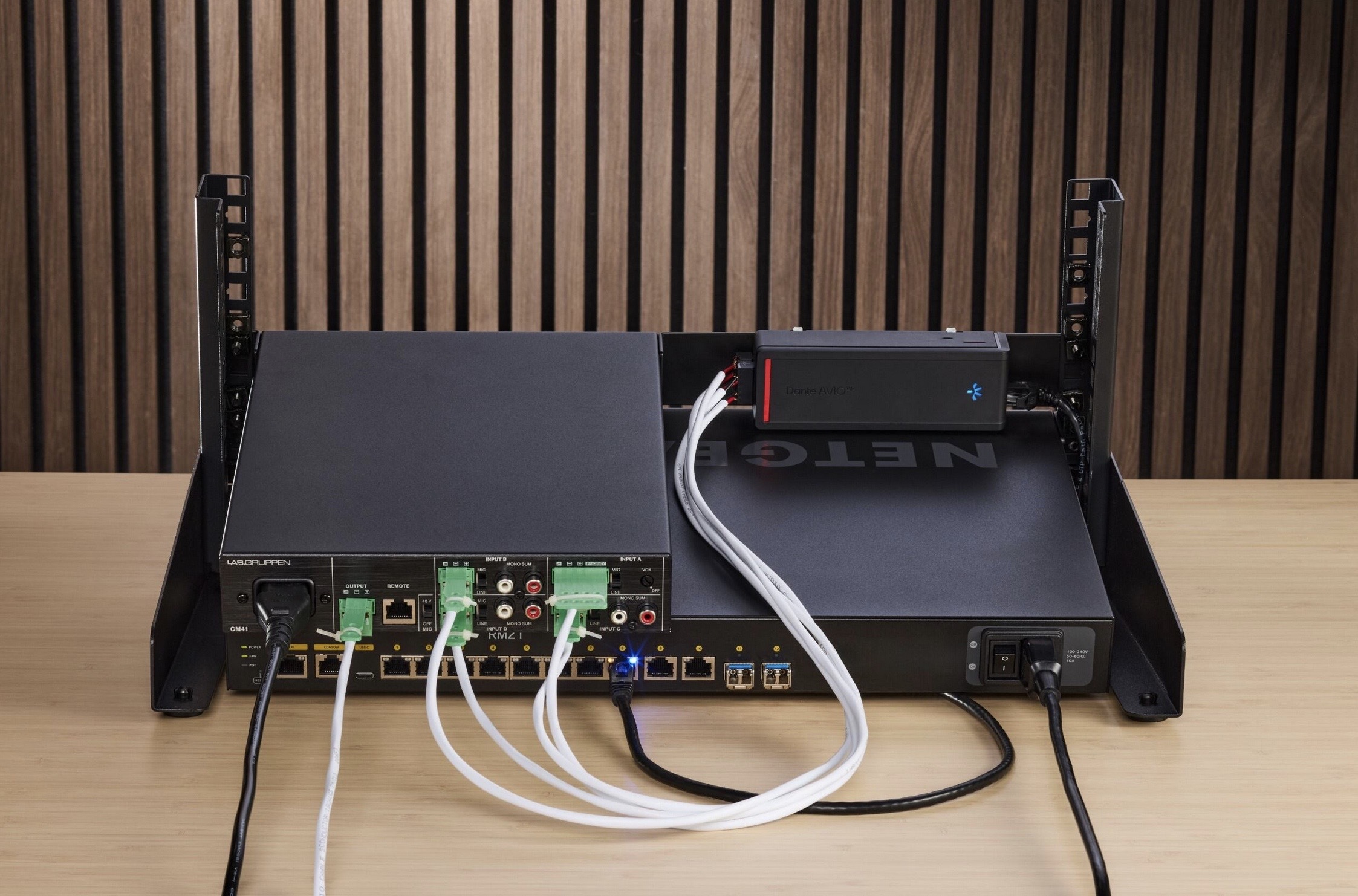

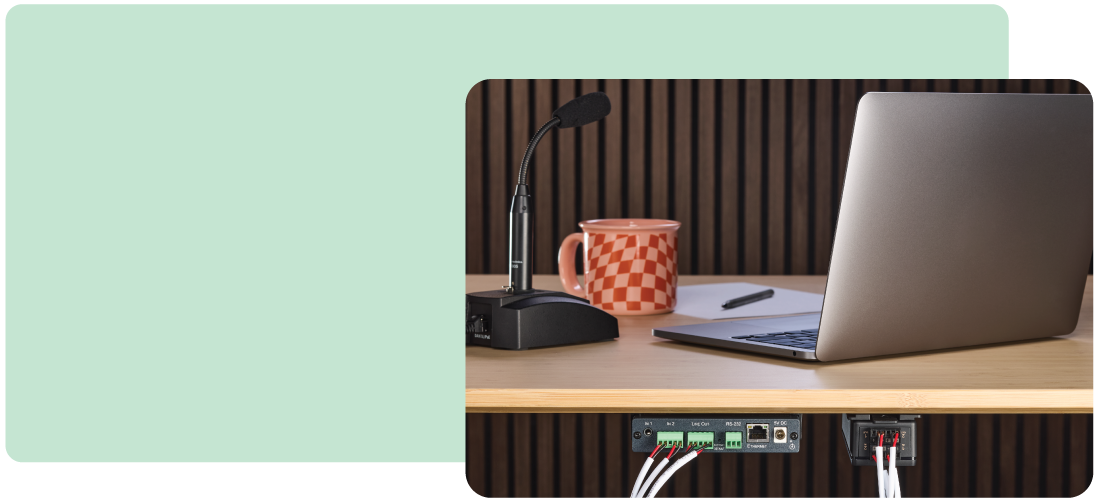

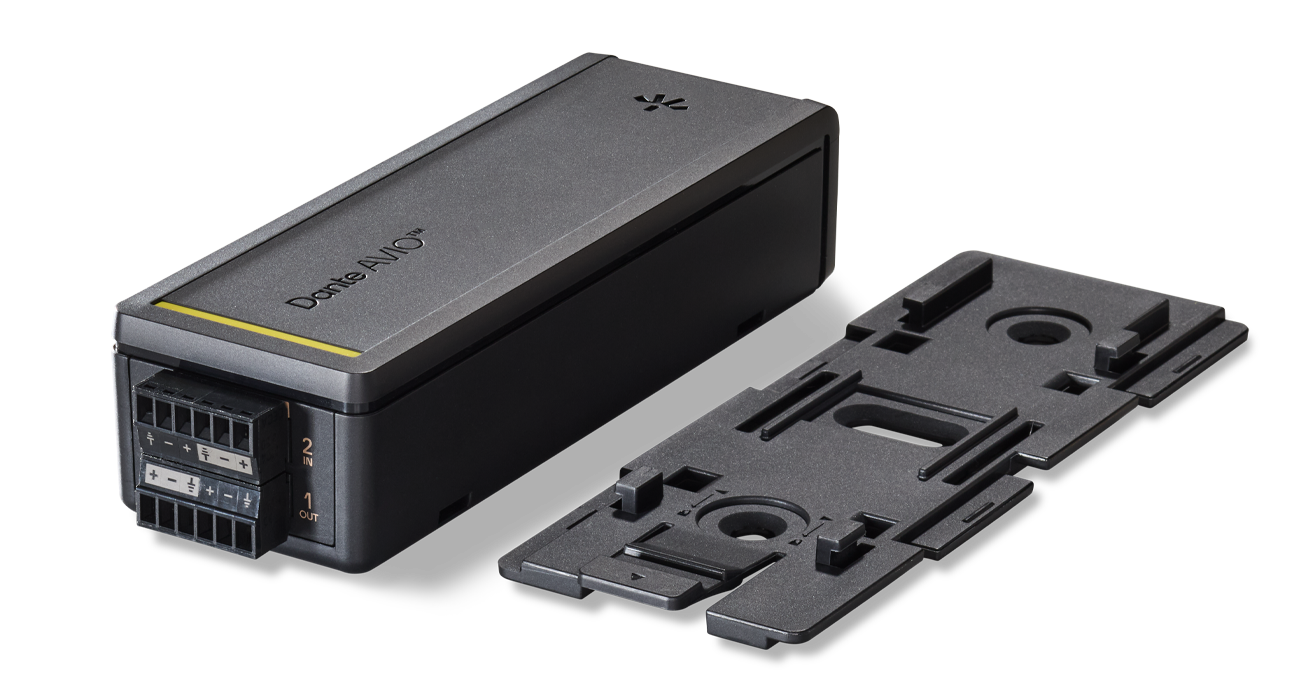

Adaptable Mounting Options
Keeping installations neat starts with flexible placement. The included bracket handles mounting to surfaces, rack rails, and posts without additional hardware, and where multiple adapters are needed, the Dante AVIO ClickGrid system snaps them together into clean, organized assemblies.

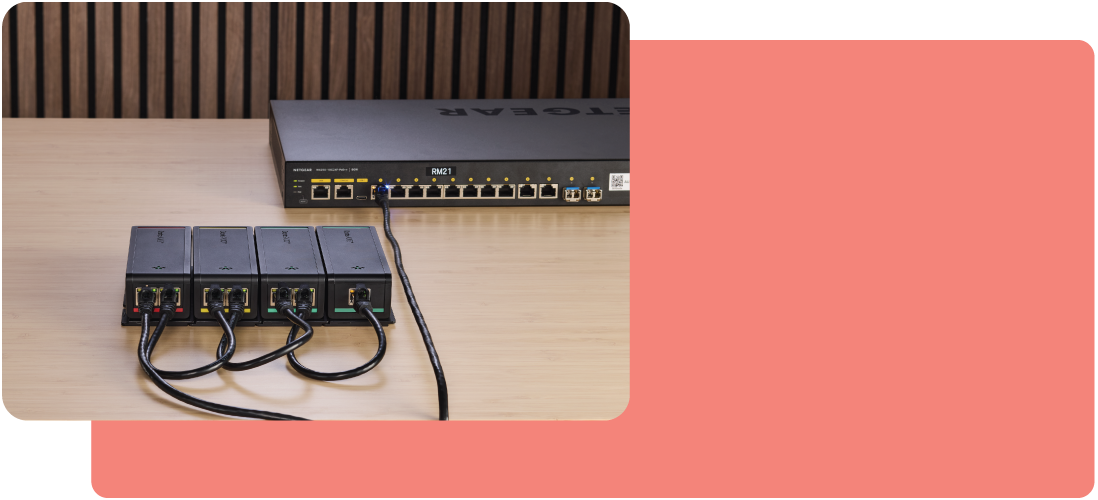

Simplify Cabling & Improve Network Efficiency
Reduce cabling complexity with PoE. Additionally, 4-Ch Input, 4-Ch Output, and 2-Ch In/Out models support daisy chaining of up to four units from a single switch port, with PoE passing downstream through the chain — no additional power supplies, fewer switch ports, lowered infrastructure costs.

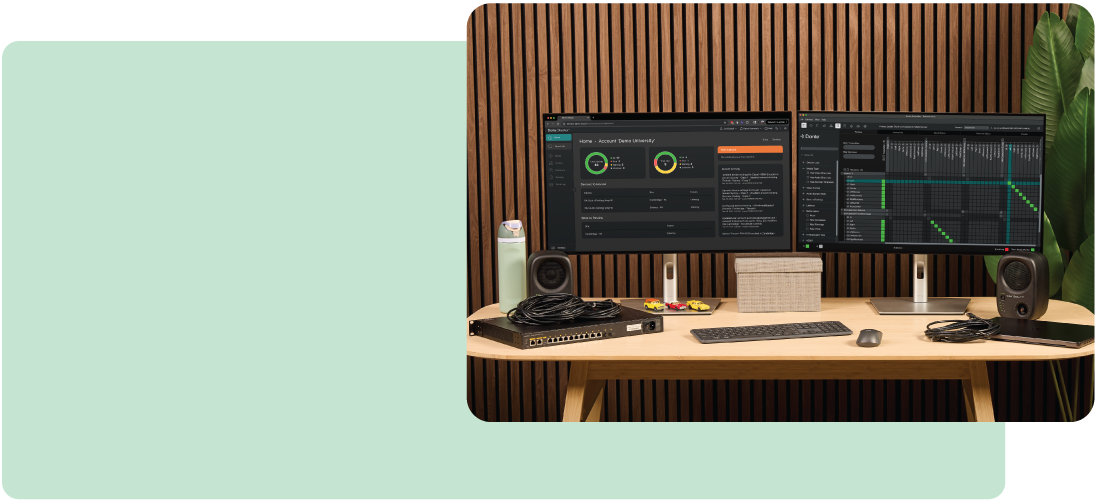

Compact Form. Full Dante Performance.
While small, these adapters are fully featured Dante devices delivering uncompressed audio at up to 96kHz/24-bit with ultra-low latency. Part of the Dante ecosystem, they connect with thousands of Dante-enabled devices and are configured and routed in Dante Controller as part of your standard setup. For larger installations, they can be enrolled in Dante Director or Dante Domain Manager adding remote monitoring, logging, user access control, and more.
