Audio Routing Matrix Switches

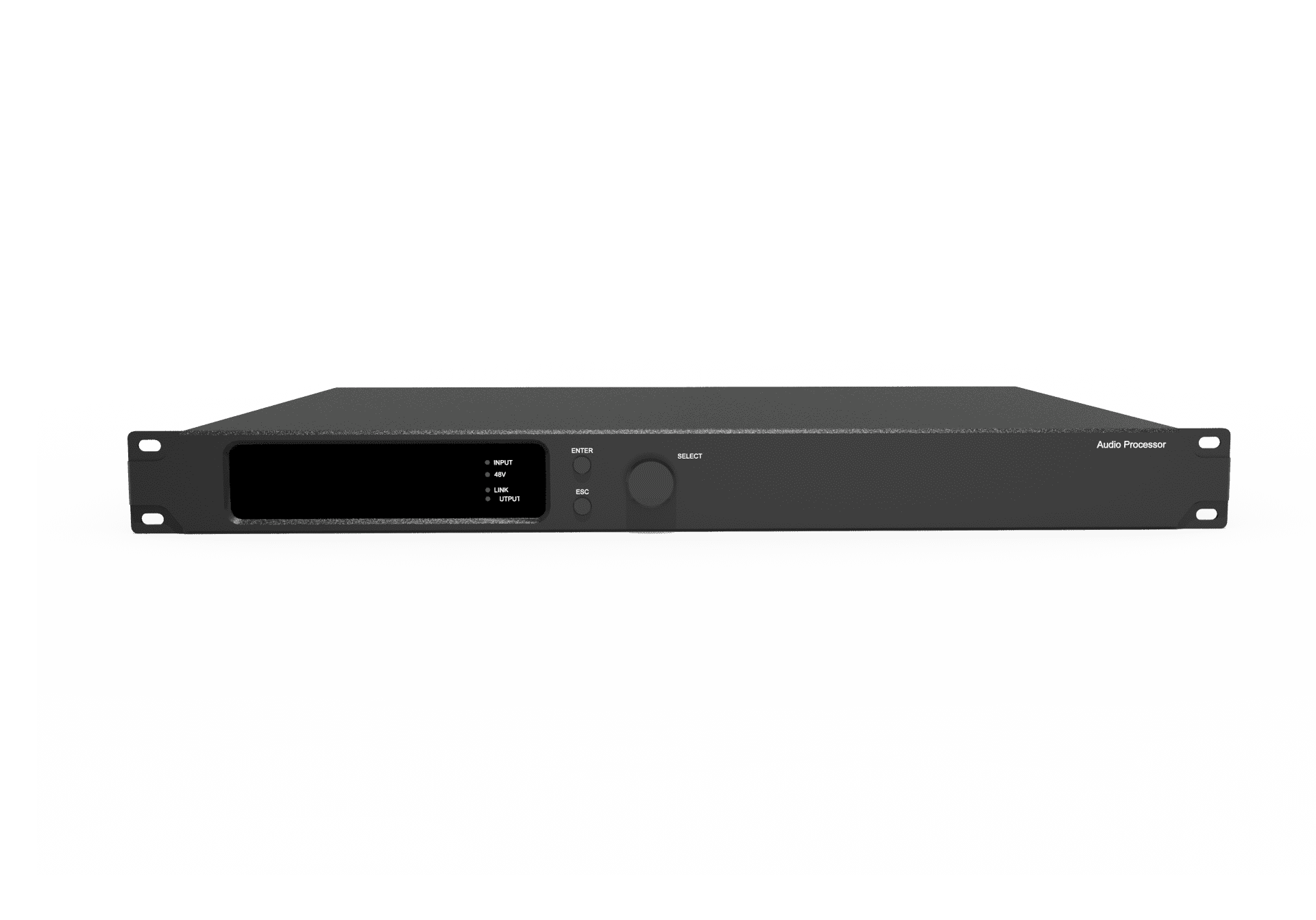

Kingray – MAP08A_D8

MAP08A_D8 is an 8-in-8-out auto-mixing media matrix, equipped with 8 analog inputs and 8 analog outputs, built-in feedback suppression, automatic mixing, AEC ,ANC, matrix mixing, equalizer, distributor, compressor and other DSP functions. This device supports 8 channel Dante network audio function expansion. It can be connected to computer software control via USB driver-free , RS232, RS485, TCP / IP connection and remote control. It is suitable for sound reinforcement projects in various occasions.

“★8 analog inputs and 8 analog outputs, support selecting microphone input and line input

★Optional 8-channel Dante network audio input and output

★9-level sensitivity adjustment for each microphone input

★48V phantom power switch for each input

★With AEC (echo cancellation), ANC (noise cancellation), use for interactive video teleconference

★Each input is equipped with AFC

★With Automix and matrix mixing

★Input 16 PEQs and output 10 PEQs

★With camera tracking control function

★Control interface: USB and RJ45 by TCPIP protocol, configuring RS232, RS485 central control interface, supporting GPIO external expansion control interface

★Support Mconsole and app TCON network control

★Support QB01A wire control

★Support presets archiving and locking, hide setting parameters”
