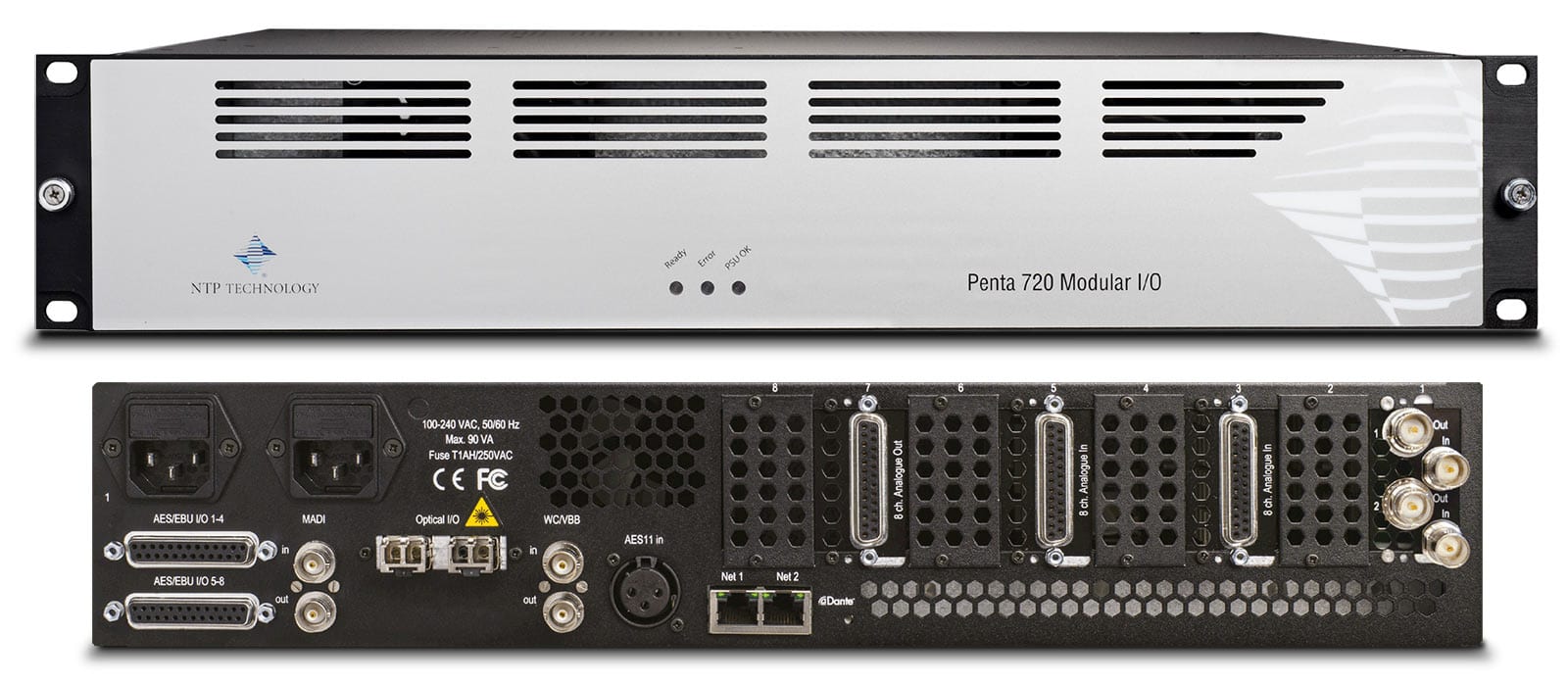

NTP Technology – PENTA 720

I/O Interfaces

More details

Similar Products

lynx-aurora-8_1200px|lynx-aurora-8_1200px
  • Lynx Studio Technology

Lynx Studio Technology – Aurora 8-DNT

The Lynx Aurora 8-DNT is an Aurora 8 combined with a factory installed LT-DANTE interface LT card. The Aurora 8-DNT features 8 channels of up to 24 Bit/192 kHz Mastering Quality analog to digital and digital to analog conversion in single-rack space with an on-board 16 Channel Digital Mixer Providing Flexible I/O Routing. The Aurora™ line of digital audio converters from Lynx Studio Technology offers unprecedented audio quality and control in single-rack space eight and sixteen channel models. The Aurora 8-DNT features 192 kHz analog to digital and digital to analog conversion with front panel control of all routing and sample rate options with Dante audio network connectivity. Extended functions in Aurora are accessible via computer with the Lynx AES16, AES16e and MIDI . The rear panel has Clock and MIDI In and Out connectors and an LSlot bay, for the optional use of other audio interfaces. Other features include:
  • Simultaneous 8 Channel Analog I/O and 8 Channel AES/EBU I/O
  • 24 Bit / 192 kHz Mastering Quality A/D and D/A Conversion
  • 192 kHz AES/EBU I/O Supporting Single and Dual Wire Modes
  • Extensive Remote Control Capability via Lynx AES16, AES16e, and MIDI
  • On-board 16 Channel Digital Mixer Provides Flexible I/O Routing
  • Word clock I/O with Lynx SynchroLock™ Sample Clock Technology
  • Digital I/O DB-25 connectors follow Yamaha pinout protocol
  • Analog I/O DB-25 connectors follow Tascam pinout protocol
  • RoHS compliant
  • Available in 100V, 115V and 230V models
    I/O Interfaces
  • Dante Ch: 32x32
  • 24-bit
See the product
rdl-dd-bn2m_1200px_0|rdl-dd-bn2m_1200px_0
  • RDL

RDL – DD-BN2M

The DD-BN2M is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, plus two line outputs on a rear-panel detachable terminal block. The DD-BN2M is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN2M. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom; the second switch selects the mic or line gain range; the third switch sets the gain. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN2M fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN2M is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN2M. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN2M in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN2M is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN2M’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
See the product
pbxxxd2
  • Profitt

Profitt – PBX-xxD-(12G)

A pair of PBX series devices allows you to implement transmission over a single fiber:

up to 4 x 12 G /3G/HD-SD SDI, ASI signals

AoIP (4 channels of audio, two inputs and two outputs on each side), Dante / AES 67 protocol , Primary / Secondary ports

The Audio to IP Converter ( AoIP ) is designed to connect microphone or line analog audio signals to local Ethernet transmission networks using the Dante protocol or the AES67 standard , for intercom over IP networks and / or for switching audio signals in a network.

An additional Ethernet port provides connection to a secondary ( Secondary ) audio transmission network, and can also be used for cascading devices (Switched).

There are two versions of the device:

models with transport up to 3 G SDI

models with transport up to 12 G SDI ( index -12 G in device code)

To transmit signals over a single fiber, the principle of CWDM (wavelength division) is used in the range of 1470 nm :1570 nm or 1270nm:1410 nm (index ' H ' in the block code). This allows you to organize both one-way and two-way video transmission.

The optical expansion port UPGRADE (1310 nm ) allows the transmission of additional signals transmitted at wavelengths of 1260nm: 1450 nm .

Thus, by connecting through the UPGRADE expansion port the second body ' P roBox ', operating at wavelengths of 1270nm:1410 nm (index ' L' in the block code), it is possible to transmit 8 3G / HD-SD SDI, ASI signals plus implement two independent AoIP lines through one fiber.

Power is supplied from an external adapter 12 V@1000 mA.

    I/O Interfaces
See the product
