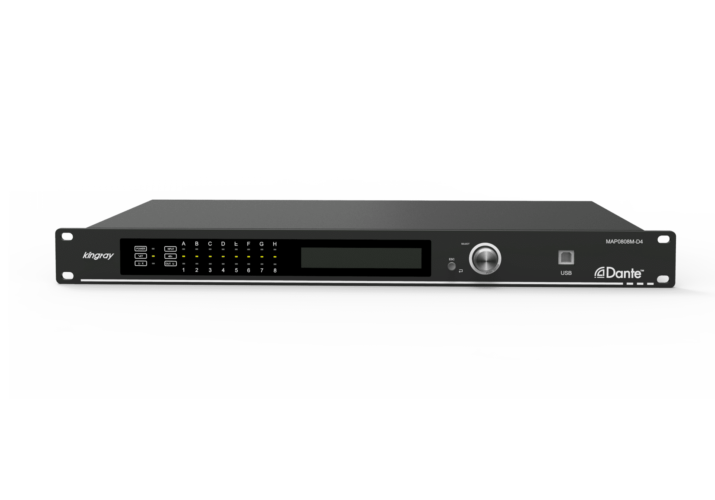

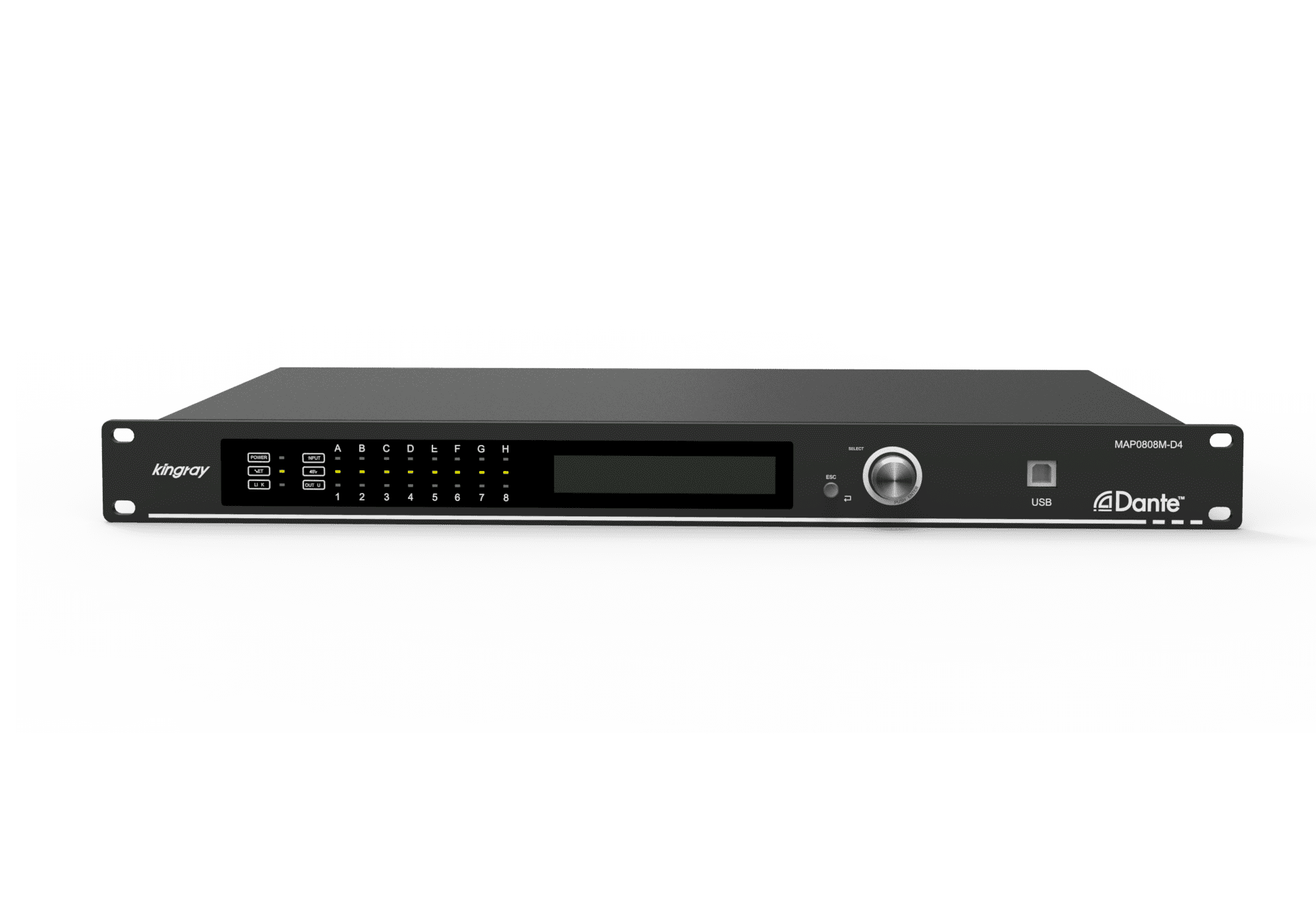

Kingray – MAP0808M_D4

MAP0808M_D4 is equipped with 8 analog inputs and 8 analog outputs, optional 4 channels Dante network audio input and output.

★8 analog inputs and 8 analog outputs, support selecting microphone input and line input

★Optional 4-channel Dante network audio input and output

★9-level sensitivity adjustment for each microphone input

★48V phantom power switch for each input

★Each input is equipped with AFC

★With Automix and matrix mixing

★Input 31 PEQs and output 10 PEQs

★With camera tracking control function

★Control interface: USB and RJ45 by TCPIP protocol, configuring RS232, RS485 central control interface, supporting GPIO external expansion control interface

★Support Mconsole and app TCON network control

★Support QB01A  wire control

★Support presets archiving and locking, hide setting parameters”
