Dante-enabled Product Catalog

Audio DSP and amplified loudspeaker controller; 2 channels sharing 4800W with Dante and AVB. Key Features

• Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
• 2 class D channels sharing 4800 watts
• Power sharing provides up to 100% of total power or 4800 W through any single channel
• High peak voltage output capability: 237 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ for the entire frequency band
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

Audio DSP and amplified loudspeaker controller; 4 channels sharing 4800W with Dante and AVB. Key Features

• Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
• 4 class D channels sharing 4800 watts
• Power sharing provides up to 75% of total power or 3600 W through any single channel
• High peak voltage output capability: 237 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ for the entire frequency band
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

Audio DSP and Amplified Loudspeaker Controller - 4 Channels sharing 600W with Dante & AVB. Key Features

• Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
• 4 class D channels sharing 600 watts
• Power sharing provides up to 75% of total power or 450 W through any single channel
• High peak voltage output capability: 145 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ for the entire frequency band
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

4-channel amplified loudspeaker controller, 4800 Watts total power. Key Features

• Audio DSP and amplified loudspeaker controller plus some headroom for Tesira custom processing and hosting of expanders
• 4 class D channels sharing 1200 watts
• Power sharing provides up to 75% of total power or 3600 W through any single channel
• High peak voltage output capability: 237 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ below 160 Hz
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

Audio DSP and amplified loudspeaker controller; 2 channels sharing 1200W with Dante and AVB. Key Features

• Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
• 2 class D channels sharing 1200 watts
• Power sharing provides up to 83% of total power or 1000 W through any single channel
• High peak voltage output capability: 145 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ for the entire frequency band
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

Audio DSP and amplified loudspeaker controller; 4 channels sharing 2400W with Dante and AVB. Key Features

• Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
• 4 class D channels sharing 2400 watts
• Power sharing provides up to 75% of total power or 1800 W through any single channel
• High peak voltage output capability: 160 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ for the entire frequency band
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

Audio DSP and Amplified Loudspeaker Controller - 4 Channels sharing 1200W with Dante & AVB. Key Features

• Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
• 4 class D channels sharing 1200 watts
• Power sharing provides up to 75% of total power or 900 W through any single channel
• High peak voltage output capability: 145 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ for the entire frequency band
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

4-channel amplified loudspeaker controller, 1200 watts total power. Key Features

• Audio DSP and amplified loudspeaker controller plus some headroom for Tesira custom processing and hosting of expanders
• 4 class D channels sharing 1200 watts
• Power sharing provides up to 75% of total or 900 W power through any single channel
• High peak voltage output capability: 145 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ below 160 Hz
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

8-channel amplified loudspeaker controller, 1200 watts total power. Key Features

• Audio DSP and amplified loudspeaker controller plus some headroom for Tesira custom processing and hosting of expanders
• 4 class D channels sharing 1200 watts
• Power sharing provides up to 50% of total power or 1200 W through any single channel
• High peak voltage output capability: 145 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ below 160 Hz
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

4-channel amplified loudspeaker controller, 2400 watts total power. Key Features

• Integrated DSP provides essential capabilities for loudspeaker management
• Up to 4800 W in single RU
• Up to 8 channels in single RU
• No central resource to limit system size
• High peak voltage output capability (up to 237Vpk)
• Power sharing provides up to 75% of total power through any single channel
• Each model supports AVB, Dante, and AES67
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Onboard processing means system cost scales with power requirements
• The ALAMOS loudspeaker profile library, with nearly 700 unique profiles covering over 200 Biamp models, saving valuable time during design and deployment
• Group-controlled raised cosine EQ making it attractive for large systems
• Accurate raised cosine EQ for the entire frequency band
• Comprehensive limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through PoE during power failures, avoiding reboots
• Support for failover-to-analog operation
• Wide dynamic range
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

8-channel amplified loudspeaker controller, 2400 watts total power. Key Features

• Audio DSP and amplified loudspeaker controller plus some headroom for Tesira custom processing and hosting of expanders
• 4 class D channels sharing 1200 watts
• Power sharing provides up to 50% of total power or 1200 W through any single channel
• High peak voltage output capability: 237 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ below 160 Hz
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

Audio DSP and Amplified Loudspeaker Controller - 2 Channels sharing 2400W with Dante & AVB. Key Features

• Powerful onboard DSP with ample headroom for large systems – the equivalent of a TesiraFORTÉ for Tesira custom processing and hosting of expanders
• 2 class D channels sharing 2400 watts
• Power sharing provides up to 83% of total power or 2000 W through any single channel
• High peak voltage output capability: 160 Vpk
• Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
• Each model supports AVB, Dante, and AES67
• Accurate raised cosine EQ for the entire frequency band
• Group-controlled raised cosine EQ making it attractive for tuning large systems
• Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
• Processor can be sustained through POE – no main power required and no reboots
• Support for failover-to-analog from networked audio input operation
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready

Biamp’s new Cambridge Qt X Series is a complete, all-in-one sound masking solution that delivers the flexibility, reliability, and ease of installation that integrators desire. It is engineered to incorporate Biamp’s industry-leading QtPRO™ direct-field and DynasoundPRO™ indirect technologies, making the Qt X ideally suited for office environments that require both system types in a single facility. Qt X is easily interfaced with a building’s life-safety system out of the box, ensuring proper coordination during emergencies.

Additionally, Qt X features built-in support for paging and background music sources. Sources connected to any Qt X controller can be routed to any other networked Qt X controller to be played within zones under its control, making building-wide paging and music distribution flexible and simple.

The series is available in eight models and supports Dante™ and AVB media distribution. Qt X is compatible with existing Qt direct-field and DynasoundPRO indirect emitters. In addition, the new sound masking family seamlessly integrates with Biamp’s extensive portfolio of AV technologies as well as third-party Dante-based devices.

TesiraFORTÉ X 400 is a meeting room DSP featuring multiple network and analog audio connection points, with 4 channels of Acoustic Echo Cancellation (AEC) assignable across any digital or analog input. Five 1-Gigabit Ethernet ports are provided, four of which are PoE+ powered, and which support media and control traffic of various types including AVB, Dante and VoIP.

The NPX H1100 is a 10-button convenience paging station with handheld microphone for use in Qt X and Tesira systems. The H1100 features embedded DSP and on-board memory to support standard and advanced public address functionalities. Digital audio and control data can be transmitted by either AVB or Dante®. The NPX H1100 can store 999 user-configurable page codes and up to 10 prerecorded messages. Additionally, the H1100 supports both tabletop and wall mounting with a removable “foot” that allows the paging station to be mounted flat against any surface, and a K-slot is included for enhanced physical security via an optional Kensington® lock. The NPX H1100 meets convenience paging requirements for facilities of all sizes.

The NPX H1040 is a 4-button convenience paging station with handheld microphone for use in Qt X and Tesira systems. The H1040 features embedded DSP and on-board memory to support standard and advanced public address functionalities. Digital audio and control data can be transmitted by either AVB or Dante. The NPX H1040 can store four user-configurable page codes and up to 10 prerecorded messages. Additionally, the H1040 supports both tabletop and wall mounting with a removable “foot” that allows the paging station to be mounted flat against any surface, and a K-slot is included for enhanced physical security via an optional Kensington® lock. The NPX H1040 meets convenience paging requirements for facilities of all sizes.

The NPX G1100 is a 10-button convenience paging station with gooseneck microphone for use in Qt X and Tesira systems. The G1100 features embedded DSP and on-board memory to support standard and advanced public address functionalities. Digital audio and control data can be transmitted by either AVB or Dante. The NPX G1100 can store 999 user-configurable page codes and up to 10 prerecorded messages. Additionally, the G1100 supports both tabletop and wall mounting with a removable “foot” that allows the paging station to be mounted flat against any surface, and a K-slot is included for enhanced physical security via an optional Kensington® lock. The NPX G1100 meets convenience paging requirements for facilities of all sizes.

The NPX G1040 is a 4-button convenience paging station with gooseneck microphone for use in Qt X and Tesira systems. The G1040 features embedded DSP and on-board memory to support standard and advanced public address functionalities. Digital audio and control data can be transmitted by either AVB or Dante®. The NPX G1040 can store four user-configurable page codes and up to 10 prerecorded messages. Additionally, the G1040 supports both tabletop and wall mounting with a removable “foot” that allows the paging station to be mounted flat against any surface, and a K-slot is included for enhanced physical security via an optional Kensington® lock. The NPX G1040 meets convenience paging requirements for facilities of all sizes.

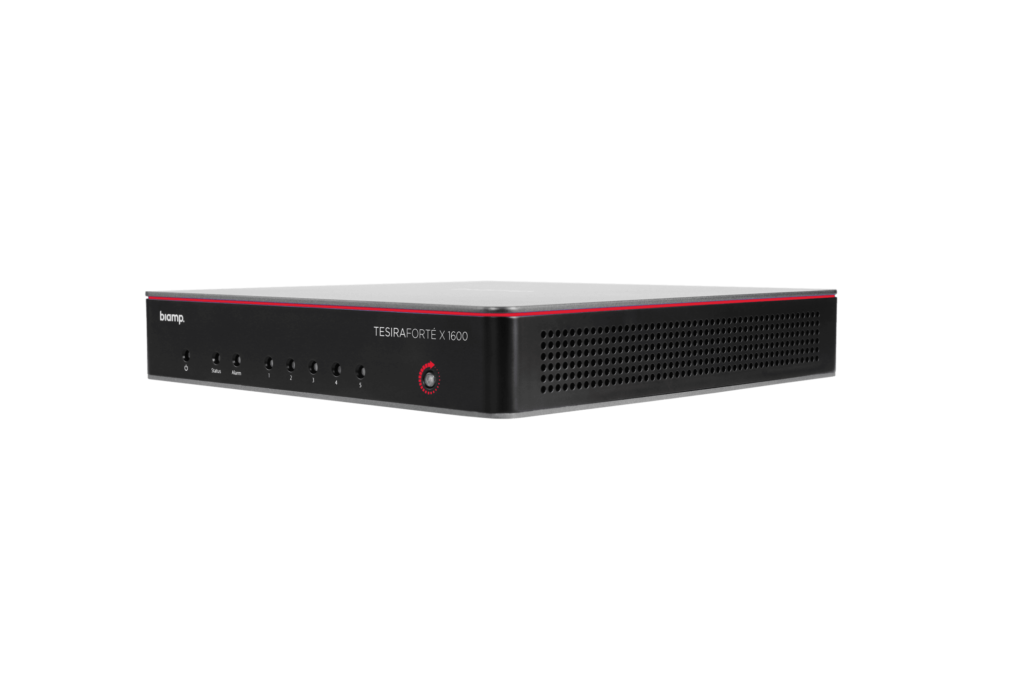

TesiraFORTÉ X 1600 is a meeting room DSP featuring multiple network and analog audio connection points, with 16 channels of Acoustic Echo Cancellation (AEC) assignable across any digital or analog input. Five 1-Gigabit Ethernet ports are provided, four of which are PoE+ powered, and which support media and control traffic of various types including AVB, Dante and VoIP.

TesiraFORTÉ X 800 is a meeting room DSP featuring multiple network and analog audio connection points, with 8 channels of Acoustic Echo Cancellation (AEC) assignable across any digital or analog input. Five 1-Gigabit Ethernet ports are provided, four of which are PoE+ powered, and which support media and control traffic of various types including AVB, Dante and VoIP.

TesiraCONNECT™ TC-5D serves as the central connection point for all Biamp® and Dante™ devices in a conference room. It simplifies installations by providing power and media over a single category cable between devices such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers and microphones as well as 3rd party Dante devices. Four of the five Gigabit RJ-45 ports provide PoE+ power (IEEE 802.3at Class 4, 30W) to connected endpoints, while the remaining RJ-45 port is used for DSP connection or daisychaining
TesiraCONNECT devices together. TC-5D eliminates the need for third-party switches; it works out-of-the box with Tesira and Dante products and does not require any device configuration. The small form factor allows it to be easily mounted to a wall or under a table, or placed above the ceiling or inside a credenza in the conference room.

Features:

• Five 1 Gbps RJ-45 ports
• Four ports support PoE+ power (IEEE 802.3at Class 4, 30W)
• Up to 4 TesiraCONNECT devices can be daisychained together
• Supports upto 32x32 channels of Dante audio
• Auto-detects media network on each port
• Front panel LEDs indicate port connections, device status, and fault conditions
• Supports Dante Domain Manager
• Dante routing configured in Dante Controller
• Out-of-the-box compatibility with Biamp AVB products and Dante products
• Fault reporting and device monitoring supported in SageVue
• External universal power supply
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

ALCs provide all of the signal routing, zone switching, DSP processing, protective limiting, remote monitoring, and amplification functions needed between a mixer and the loudspeakers in virtually any Community Professional Loudspeakers application. Standard Ethernet communication protocols allow for fast system design, system control, and remote system monitoring. Analog and Dante® inputs are included in each model, for quick and easy integration into any new or existing system. Community-authored loudspeaker presets include equalization, high pass filters, and multi-stage limiters tailored to each model, ensuring consistent sound quality and full loudspeaker protection in every application.

In-depth control and monitoring is accomplished via ArmonìaPlus System Manager Software.  Tailoring the sound and managing the system can be done at a remote, decentralized location.  The ALC-3202D can also be trusted in mission critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS in addition to the per-channel, user-assignable fault-indicating GPIO connectors on the rear panel.

ALCs provide all of the signal routing, zone switching, DSP processing, protective limiting, remote monitoring, and amplification functions needed between a mixer and the loudspeakers in virtually any Community Professional Loudspeakers application. Standard Ethernet communication protocols allow for fast system design, system control, and remote system monitoring. Analog and Dante® inputs are included in each model, for quick and easy integration into any new or existing system. Community-authored loudspeaker presets include equalization, high pass filters, and multi-stage limiters tailored to each model, ensuring consistent sound quality and full loudspeaker protection in every application.

In-depth control and monitoring is accomplished via ArmonìaPlus System Manager Software.  Tailoring the sound and managing the system can be done at a remote, decentralized location.  The ALC-1604D can also be trusted in mission critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS in addition to the per-channel, user-assignable fault-indicating GPIO connectors on the rear panel.

ALCs provide all of the signal routing, zone switching, DSP processing, protective limiting, remote monitoring, and amplification functions needed between a mixer and the loudspeakers in virtually any Community Professional Loudspeakers application. Standard Ethernet communication protocols allow for fast system design, system control, and remote system monitoring. Analog and Dante® inputs are included in each model, for quick and easy integration into any new or existing system. Community-authored loudspeaker presets include equalization, high pass filters, and multi-stage limiters tailored to each model, ensuring consistent sound quality and full loudspeaker protection in every application.

In-depth control and monitoring is accomplished via ArmonìaPlus System Manager Software.  Tailoring the sound and managing the system can be done at a remote, decentralized location.  The ALC-404D can also be trusted in mission critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS in addition to the per-channel, user-assignable fault-indicating GPIO connectors on the rear panel.

The TesiraFORTÉ DAN VT4 is a digital audio server with 4 analog inputs and 4 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 4 inputs. The TesiraFORTÉ DAN VT4 is a digital audio server with 4 analog inputs and 4 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 4 inputs. Each model also includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, and a standard FXO telephone interface. TesiraFORTÉ DAN VT4 includes Dante digital audio networking.

• 32 x 32 channels of Dante (DAN model only)
• 12 mic/line level inputs with AEC, 8 mic/line level outputs
• Gigabit Ethernet port › RS-232 serial port
• 4-pin GPIO
• 2-line OLED display with capacitive-touch navigation
• Rack mountable (1RU)
• System configuration and control via Ethernet
• Internal universal power supply
• SIP VoIP interface via RJ-45 connector
• Standard FXO telephone interface via RJ-11 connector
• Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

The TesiraFORTÉ VT is a digital audio server with 12 analog inputs and 8 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 12 inputs.  The TesiraFORTÉ VT is a digital audio server with 12 analog inputs and 8 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 12 inputs. It includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, and a standard FXO telephone interface. TesiraFORTÉ DAN VT adds Dante digital audio networking.

• 32 x 32 channels of Dante (DAN model only)
• 12 mic/line level inputs with AEC, 8 mic/line level outputs
• Gigabit Ethernet port
• RS-232 serial port
• 4-pin GPIO
• 2-line OLED display with capacitive-touch navigation
• Rack mountable (1RU)
• System configuration and control via Ethernet
• Internal universal power supply
• SIP VoIP interface via RJ-45 connector
• Standard FXO telephone interface via RJ-11 connector
• Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

With the VI, VoIP teleconferencing has never been easier. Having the USB port and VoIP capabilities gives you two options for conferencing, and even more ways to manage your network. Each TesiraFORTÉ® model is designed and optimized to address a different business challenge, with the ability to accommodate future AV technology advancements. The Dante-equipped (DAN) models allow you to interface with other audio devices that communicate over Dante. Audio solutions using VoIP can be challenging, complex, and time-consuming to design and install. Biamp has leveraged their years of experience creating high-quality VoIP solutions to bring you the VI model. With the VI, VoIP teleconferencing has never been easier. Having the USB port and VoIP capabilities gives you two options for conferencing, and even more ways to manage your network. Specialized Features

• AEC on all inputs
• SIP VoIP interface via an RJ-45 connector
