Dante-enabled Product Catalog

The TeamConnect Ceiling Medium Ceiling Tile (TCC M CT) allows for even easier installation of the TCC M into suspended grid ceilings, thereby reducing installation time and costs for integrators on site. The tile comes in a 60 cm square solution and a 2 ft square solution, primarily for the US market. The TCC M allows integrators the versatility to offer elevated meeting experiences across a range of flexible and hybrid meeting spaces and learning environments. With its adaptive, intelligent beamforming technology, the TCC M ensures Trusted Sennheiser Audio Quality every time. Seamless integration with single cable mode and numerous design and installation options ensure TCC M transforms any room into a hub of collaboration. ​ ​

The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit’s wireless transmission. It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity. The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.

• 19’’ 1 RU Base Station with redundant power supplies
• Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license
• 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage
• Redundant Dante® audio interface
• Two optional slots for redundant MADI (OM or BNC)
• Sample rates of 48 kHz and 96 kHz
• Individual sample rate converters for all audio interfaces
• Wordclock I/O BNC
• Synchronized clock for all audio over RF allows 3D recordings and playback
• Adjustable RF power from 10 – 100 mW (country specific)
• RJ45 network interface for full remote control with secured interface
• 11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM
• Secure transmission of confidential content using AES 256 encryption
• Future expansion via Cascade port
• Selective headphone output with volume control on front panel
• OLED display, jog wheel navigation, and rugged metal housing
• Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)

The TC Bar M is an all-in-one device for mid-size meeting rooms, featuring six microphones and four speakers for high-quality Sennheiser audio. Integrated beamforming technology allows seamless transitions between presenters, complemented by AI video features like auto-framing and person tiling. Its 4K Ultra HD camera and intelligent video technology enhance hybrid meetings by providing remote participants with a clear view of everyone in the room. The TC Bar M can be fine-tuned using Sennheiser’s Control Cockpit software, offering features like Exclusion Zones to filter noise and Priority Zones to highlight specific areas. It also includes a Dante port for extension microphones, facilitating easy coverage expansion where needed. This flexibility and clarity make it ideal for mid-size meeting spaces, enhancing both in-room and remote participant experiences.

The TC Bar S is an all-in-one device for small meeting rooms, featuring four microphones and two speakers for high-quality Sennheiser audio. Integrated beamforming technology allows seamless transitions between presenters, complemented by AI video features like auto-framing and person tiling. Its 4K Ultra HD camera and intelligent video technology enhance hybrid meetings by providing remote participants with a clear view of everyone in the room. The TC Bar S can be fine-tuned using Sennheiser’s Control Cockpit software, offering features like Exclusion Zones to filter noise and Priority Zones to highlight specific areas. It also includes a Dante port for extension microphones and PoE capabilities, facilitating easy coverage expansion where needed. This flexibility and clarity make it ideal for small meeting spaces, enhancing both in-room and remote participant experiences.

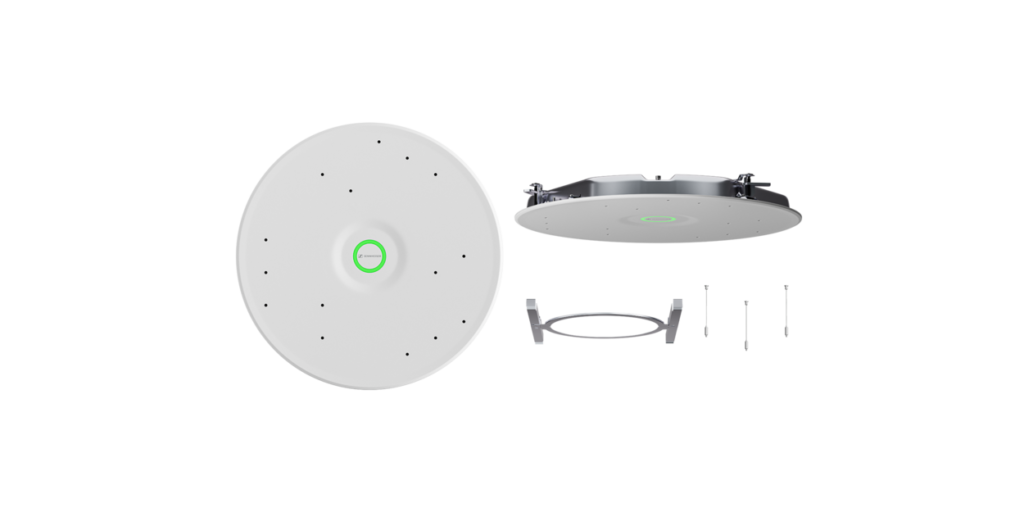

Mounted discreetly on the ceiling, the TCC M unlocks the full potential of the mid-sized meeting space. Tabletops remain clutter-free, and room layouts can be easily adapted while maintaining full microphone coverage and excellent speech intelligibility. More challenging spaces can be easily managed with the free-to-use Control Cockpit software. This software allows the designation of exclusion and priority zones and facilitates the control and monitoring of the TCC M over the network. Precise positional data from the TCC M’s automatic dynamic beamforming technology makes it the perfect partner for voice-based camera tracking, enhancing hybrid meeting experiences. Many 3rd party plugins are readily available from partners such as Crestron, Extron, Q-SYS, Kramer, Lumens and AVer to streamline the integration process. This guarantees a complete meeting experience for all participants, including those joining remotely, making TeamConnect Ceiling Medium an invaluable asset for any medium-sized meeting room.

Four-channel digital full-rack (19") receiver with internal PSU and Dante® for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Extended 88 MHz switching bandwidth, intermodulation-free operation [intermodulation-free equidistant channel spacing] for up to 293 channels with secure AES 256 encryption and four modular network ports.

Higher channel density with maximum signal reliability at the same time: Digital 6000 is intermodulation-free and assures through its equidistant frequency grid excellent spectral efficiency and the simplest frequency configuration– even in the toughest frequency environments where other systems already fail. Error correction and audio error masking recognize and fix problems long before they even become audible. When it comes to setup and the user interface, the EM 6000 stands out for clarity, relevance and short pathways.

Digital 6000 can be seamlessly integrated into existing digital or analog infrastructures. The EM 6000 receiver has a digital AES-3 output with word clock inputs and outputs, high-quality transformer-balanced analog XLR and 6.3 mm jack outputs as well as a 6.3 mm headphone output. The Dante™ version with an Audinate Brooklyn ll card additionally offers two Amphenol RJ-45 connectors for integrating the receiver into a Dante™ network, for redundant networks or daisy chain cabling.

Whether we’re talking about reducing information down to the really meaningful key values or smart menus on a high-contrast OLED display, every operating element is a result of practical experience and designed for practical use. All the vital parameters are summarized in one view. Important functions can be reached directly via home screens without long navigation paths. The auto-setup enables scanning and frequency distribution to all connected devices directly via the receiver; naturally Digital 6000 can also be monitored and configured via the Wireless System Manager (WSM).

The EM 6000 is compatible with UHF Sennheiser antenna systems.

Sennheiser MobileConnect streams audio content via WiFi live and in superior quality to any mobile device. Following the Bring-Your-Own-Device concept, it is an easy-to-use and intuitive Assistive Listening system. Cost and maintenance effort for operators is kept at a minimum.

MobileConnect is optimized for use in existing network infrastructures. The MobileConnect system consists of three components: the MobileConnect Station, the MobileConnect Manager and the MobileConnect App. The MobileConnect Station is integrated into the existing campus network and distributes the audio content via WiFi to the MobileConnect App on the user‘s personal smartphone. With the MobileConnect Manager, all MobileConnect Stations in the network can be administrated conveniently and managed remotely from anywhere on the campus.

The SpeechLine Multi-Channel Receiver with its 10 variants in 2 or 4 channels is the perfect addition to the SpeechLine series. Thanks to its unobtrusive design, the Multi-Channel Receiver can be installed quickly and easily in any room, whether on the wall or ceiling. The device can be operated with a single network cable, thanks to PoE and Dante. Complex analog audio cabling is a thing of the past.

The Multi-Channel Receiver also offers a convenient solution for existing installations. Thanks to an integrated auto mixer and the analog mix output, all audio channels can be used simply as a sum signal. The audio mix is also available digitally via Dante, which allows an extension of the existing setup without exchanging the DSP.

Due to the bidirectional communication between receiver and transmitter, all settings of the mobile transmitters can easily be made in the Sennheiser Control Cockpit. The receiver’s automatic frequency management eliminates the need for manual frequency settings and the automatic interference management guarantees maximum transmission reliability.

The user-friendly pairing function ensures a reliable connection between transmitter and receiver. Network integration also makes it possible to remotely control and monitor the receiver via a media control system (e.g. AMX, Crestron). Due to the integrated antennas, a complex antenna installation is no longer necessary.

Features

• Automatic Gain Control
• Automatic Frequency management
• AES 256 encryption
• 2-port Dante
• PoE
• Analog Mix Output
• One status LED per Link
• Remote control via Control Cockpit or media control
• Wall, ceiling or mic stand mounting
• Integrated Automixer

The SL MCR DW comes in 10 variants

• SL MCR 2 DW-3 (2 channel EU)
• SL MCR 2 DW-4 (2 channel US)
• SL MCR 2 DW-5 (2 channel Japan)
• SL MCR 2 DW-6 (2 channel Taiwan)
• SL MCR 2 DW-7 (2 channel Brazil)
• SL MCR 4 DW-3 (4 channel EU)
• SL MCR 4 DW-4 (4 channel US)
• SL MCR 4 DW-5 (4 channel Japan)
• SL MCR 4 DW-6 (4 channel Taiwan)
• SL MCR 4 DW-7 (4 channel Brazil)

Sennheiser's EM 6000 is a digital 2-channel receiver for live productions and transmissions, even in the toughest environments. Huge spectral efficiency with equidistant frequency grid and true bit diversity. Analog and digital outputs (XLR, jack, AES-3, redundant Dante™), high-contrast OLED display with LQI indicator.   Sennheiser's EM 6000 is a digital 2-channel receiver for live productions and transmissions, even in the toughest environments. Huge spectral efficiency with equidistant frequency grid and true bit diversity. Analog and digital outputs (XLR, jack, AES-3, redundant Dante™), high-contrast OLED display with LQI indicator. Higher channel density with maximum signal reliability at the same time: Digital 6000 is intermodulation-free and assures through its equidistant frequency grid excellent spectral efficiency and the simplest frequency configuration– even in the toughest frequency environments where other systems already fail. Error correction and audio error masking recognize and fix problems long before they even become audible. When it comes to setup and the user interface, the EM 6000 stands out for clarity, relevance and short pathways. Digital 6000 can be seamlessly integrated into existing digital or analog infrastructures. The EM 6000 receiver has a digital AES-3 output with word clock inputs and outputs, high-quality transformer-balanced analog XLR and 6.3 mm jack outputs as well as a 6.3 mm headphone output. The Dante™ version with an Audinate Brooklyn ll card additionally offers two Amphenol RJ-45 connectors for integrating the receiver into a Dante™ network, for redundant networks or daisy chain cabling. Whether we’re talking about reducing information down to the really meaningful key values or smart menus on a high-contrast OLED display, every operating element is a result of practical experience and designed for practical use. All the vital parameters are summarized in one view. Important functions can be reached directly via home screens without long navigation paths. The auto-setup enables scanning and frequency distribution to all connected devices directly via the receiver; naturally Digital 6000 can also be monitored and configured via the Wireless System Manager (WSM). The EM 6000 is compatible with UHF Sennheiser antenna systems.

The new ceiling array microphone offers superior audio quality for voice and video conferences thanks to its automatic adaptive beamforming technology. It provides the greatest versatility and interoperability with support for Dante networks, including compatibility with Dante Domain Manager (DDM), and Power over Ethernet. The new ceiling array microphone offers superior audio quality for voice and video conferences thanks to its automatic adaptive beamforming technology. It provides the greatest versatility and interoperability with support for Dante networks, including compatibility with Dante Domain Manager (DDM), and Power over Ethernet. deal for mid to large sized meeting rooms, TeamConnect Ceiling 2 can be installed virtually invisibly into the ceiling to allow for truly flexible usage of a space. As well as freeing tables of cables and mics, it ensures that meeting participants no longer need to adjust their seating arrangements or conversational style to suit the audio set up in the room. Unique on the market, Sennheiser’s adaptive beamforming technology automatically follows the active speaker’s voice letting people speak naturally – whether they are sitting, standing or moving around the room. It’s that simple, and is ready to use without complex configuration. Thanks to 28 omni-directional microphone capsules integrated within the discrete ceiling array, TeamConnect Ceiling 2 delivers excellent audio quality that is free from distracting ambient noise. This enhances the conference experience for remote participants through crystal clear speech, which ensures stress-free listening and interaction for more productive meetings. As well as optimizing the end user experience, Sennheiser’s original TeamConnect Ceiling impressed installers and IT managers alike with its incredible flexibility and simplicity. The microphone ensures that after initial installation no ongoing maintenance is required. TeamConnect Ceiling 2 takes these advantages even further: Integration into existing infrastructure is made easier thanks to support for the Dante™ multi-channel audio networking standard, which builds on existing IP and Ethernet networking technology. With both an analog audio output and two digital Dante audio outputs that support redundancy mode, TeamConnect Ceiling 2 offers connectivity with any conferencing system and with digital audio networks. Support for the Power over Ethernet standard via the Ethernet port adds to the ease of integration and installation. TeamConnect Ceiling 2 will also offer support for Sennheiser Control Cockpit, Sennheiser’s unique network control software. Providing a digital workflow for network enabled devices from Sennheiser, the professional remote software allows centralized administration, configuration and monitoring of one or multiple ceiling mics within the network. Accessible on any device via a browser, Sennheiser Control Cockpit makes TeamConnect Ceiling 2 installations effortless to manage. For integration into larger media control systems, integrators can make use of Sennheiser’s open media control protocol (API) to offer remote configuration, control and monitoring of the TeamConnect Ceiling 2. The ceiling microphone will be fully compatible with the Crestron control platform.

This product has reached "end of life" and is discontinued by the manufacturer The SL DI 4 XLR four input Dante preamp is the ideal interface for wireless microphone receivers, and adding mic/line inputs to a Dante system. The small form factor to the SL DI 4 XLR allows them to be mounted almost anywhere, putting them close to audio sources and minimizing interference-prone analog wiring. The SL DI 4 XLR features four balanced mic/line inputs, each with software selectable +48V phantom power and 8 gain levels. Front panel indicators show each channel’s gain and phantom power status for easy troubleshooting. The SL DI 4 XLR has two network connections to allow Dante Daisy Chaining. Dante Daisy Chaining further simplifies system infrastructure wiring by allowing multiple SL DI 4 XLRs to use a single CAT 5 home run connection to a network switch. Power can also be daisy chained. The SL DI 4 XLR is powered by either external +12VDC or any PoE network switch. All adjustable parameters, like mic/ line gain and phantom power, are software controlled.

The Digital 6000 is Sennheiser's first digital two channel solution in one rack. Digital 6000 features Digital 9000’s unparalleled long range transmission mode, coupled with a massive 244 MHz of switching bandwidth.  The Digital 6000 is Sennheiser's first digital two channel solution in one rack. Digital 6000 features Digital 9000’s unparalleled long range transmission mode, coupled with a massive 244 MHz of switching bandwidth. The innovative user interface makes it easier to use. Sennheiser’s True Bit Diversity and predictive algorithms create a reliable wireless link which remains stable when other systems fail. The Digital 6000 components:

• EM 6000
• SK 6000
• L 6000
• SKM 6000

The Sennheiser Dante™ card for the EM 9046 receiver enables its top-of-the-range Digital 9000 microphone system to be integrated into Dante audio-over-IP networks. The EM 9046 DAN extension card inserts into the EM 9046 eight-channel receiver expansion slot. Sixteen audio inputs can send both digital audio and command signals over the Dante network using the card. Two Gbit RJ45 sockets are provided that serve to establish two redundant network circuits or daisy-chain the signals. Sampling rates of 44.1/48/88.2 and 96 kHz at a resolution of 24 bits are possible with the card. Download firmware for Digital 9000 Microphone System to support Sennheiser EM 9046 DAN Dante option card

The Sennheiser EM 9046 microphone receiver incorporates up to 8 digital receiving channels, each with 328 MHz of switching bandwidth covering the UHF spectrum from 470 to 798 MHz.  A highly intuitive, icon-based user interface provides a complete system overview via a large TFT display. Designed for maximum spectral efficiency, the EM 9046 can safely accommodate as many as 40 channels within a 24 MHz frequency window. Complex intermodulation calculations are no longer necessary - operating frequencies can now be evenly spaced. The new EM 9046 multichannel receiver is destined to become the reference standard throughout the broadcast and theatre production industries, like the legendary Sennheiser EM 1046 that came before.

The Digital 9000 system has been developed for all professional users in broadcast studios, theatres and live performances unwilling to comprise on sound. Its unique uncompressed digital audio transmission offers artefacts free sound with great dynamics.
