The FDX-SAB4A is an analog audio board with four unbalanced inputs and four balanced/unbalanced outputs.
The FDX-SOA12A is an 12-output unbalanced audio board designed for FDX-S series Modular Matrix Switchers.
The FDX-SAB64D is a Dante network audio board designed for FDX-S series Modular Matrix Switchers.

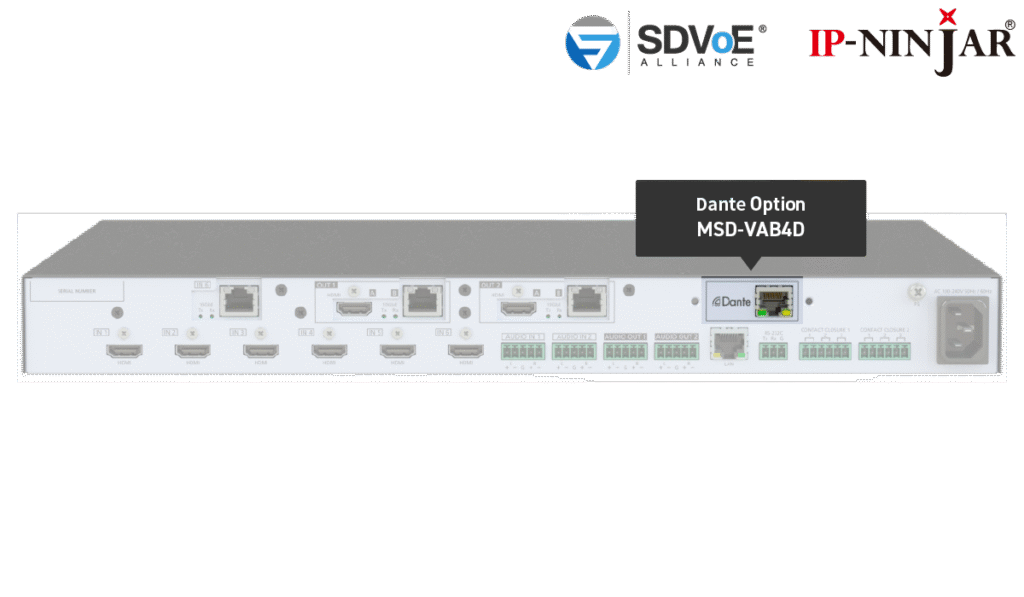

The MSD-VAB4D is a Dante audio option for the MSD-V6 series digital multi-switcher.
Up to four inputs and four outputs of Dante signals can be used, with two 2-channel audio inputs and outputs.
Dante output can also be switched in conjunction with video signal switching.
Multi-channel audio is downmixed and output via Dante.
Dante input audio can also be embedded in HDMI or output as analog audio.

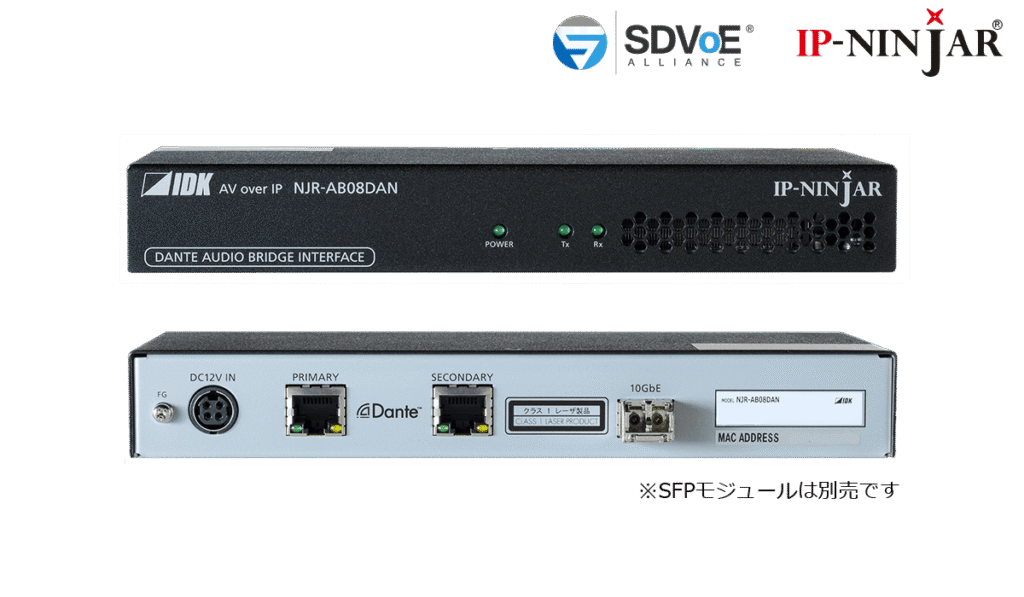

The NJR-AB08DAN is an audio bridge interface that converts audio signal protocols between IP-NINJAR and Dante networks. The NJR-AB08DAN converts audio packet on the IP-NINJAR network into the suitable Dante packets and vice versa for routing signals efficiently to the correct destination. It supports up to 8×8 audio I/O channels.
Transcode Audio signal between IP- NINJAR (SDVoE) and Dante protocol
Receives up to four (4) audio streams from IP-NINJAR transmitters and output as Dante protocol up to eight (8) channels
Receives up to 8 channel Dante audio from Dante devices and output as IP-NINJAR (SDVoE) protocol up to four (4) audio streams
Dante audio embedded on HDMI signal at IP-NINJAR receiver
Dante audio de-embedded to analog audio signal at IP-NINJAR receiver
This 8-input, 4-output digital multi-switcher features a built-in
scan converter. It features 8 digital and 2 analog video inputs, accepting HDMI, HDBaseT, DVI, composite video, Y/C, analog RGB, and analog YPbPr signals.
The input video signal is converted to a maximum resolution of 4K@30 and output as an HDMI or HDBaseT signal.
The HDBaseT input connector can also supply power to an HDMI Cat 3D transmitter with PoH power.
It features 8 digital and 2 analog audio inputs, outputting the selected audio signal as digital audio. One of the four digital audio outputs can be selected and converted to analog audio for output. It also features a lip sync function to correct video and audio misalignment.
RS-232C and LAN control ports enable remote control of various settings. In addition to remote control, you can also program control commands to control external devices connected to the unit via RS-232C, LAN, CEC, or contact closure. Control commands have a wait function (to wait for execution). This allows you to set the control command to be sent after the cooling time has elapsed, for example, for power control of a projector.
Control commands can be executed from the front keys, RS-232C, or LAN, or by operating the input channel selection buttons or turning the power button ON or OFF.
In addition to the standard model, the lineup also includes a Dante output model.
Using network audio allows you to transmit 64 channels of audio at a sampling frequency of 48 kHz over a single LAN cable.
This 8-input, 3-output digital multi-switcher features a built-in scan converter. It features 8 digital and 2 analog video inputs, accepting HDMI, HDBaseT, DVI, composite video, Y/C, analog RGB, and analog YPbPr signals. The input video signal is converted to a maximum resolution of 4K@30 and output as an HDMI or HDBaseT signal. The HDBaseT input connector can also supply power to an HDMI Cat 3D transmitter with PoH power.
It features 8 digital and 2 analog audio inputs, and outputs the selected audio signal as digital audio. One of the three digital audio outputs can be selected and converted to analog audio for output. It also features a lip sync function to correct video and audio misalignment.
RS-232C and LAN control ports enable remote control of various settings. In addition to remote control, you can also program control commands to control external devices connected to the unit via RS-232C, LAN, CEC, or contact closure. Control commands have a wait function (to wait for execution). This allows you to set the control command to be sent after the cooling time has elapsed, for example, for power control of a projector.
Control commands can be executed from the front keys, RS-232C, or LAN, or by operating the input channel selection buttons or turning the power button ON or OFF.
In addition to the standard model, the lineup also includes a Dante output model.
Using network audio allows you to transmit 64 channels of audio at a sampling frequency of 48 kHz over a single LAN cable.
Third party applications that use Dante Ready™ allow customers to purchase and activate Dante audio channels after installation using the Dante Activator tool in Dante Controller 4.5 or higher. Dante Activator is tied to an active Audinate user account and accepts standard credit card payments.
