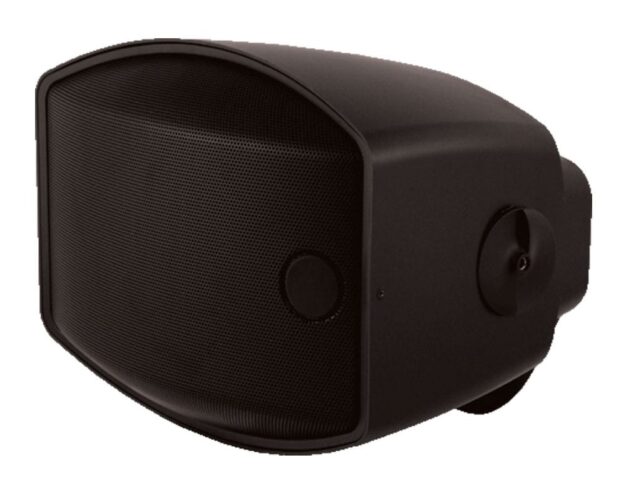

SoundTube – IPD-SM500i-II


More details

Similar Products

CX112P
  • DMIX

DMIX – CX112P

Speaker model: CX112P

Speaker type: 12”Active coaxial loudspeaker

Unit configuration: LF:12" unit 2.5"(65mm)Voice coil

HF:1.7"(44mm)Voice coil driver

Frequency response: 70Hz-17kHz(-10dB)

Rated power: LF:250W, HF:50W

Sensitivity: LF:101dB, HF:109dB

Sound pressure level: 131dB (peak)

Radiation Angle: 60°×60°

Crossover point: DSP control

Size (mm) : 583×376×377 (W×H×D)

Module amplifier power: HF:150W,LF:500W (Class D)

Module input link: 1 balanced XLR input / 1 set of Dante signal input and output / 1 set of LINK output

Module DSP control: RS485、USB or Dante

    Speakers
CA306D_0
  • DMIX

DMIX – CA-306D

Technical parameters:

Speaker model: CA-306D

Unit configuration: 6×3"(75mm) Full frequency unit

Frequency range: 130Hz-20kHz

Rated power: 120W

Sound pressure level: 118dB

Sensitivity: 95dB

Coverage Angle: 100°×50°

DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment

Connection mode: RJ45 interface

Size (mm) : 124×548×154 (W×H×D)

    Speakers
Column-Series-Speakers_6
  • Smart Pi

Smart pi – Smart pi EDC

The Smart pi EDC is a partnership with EDC Acoustics to integrate EDC’s Plane Array™ technology which allows systems the ability to create 3D wave fronts. Each speaker is capable of vertical and/or horizontal steering as well as customizable wave shaping, allowing re-configurable pattern control to suit any venue or area further increasing speech intelligibility in difficult acoustic environments.

    Speakers
