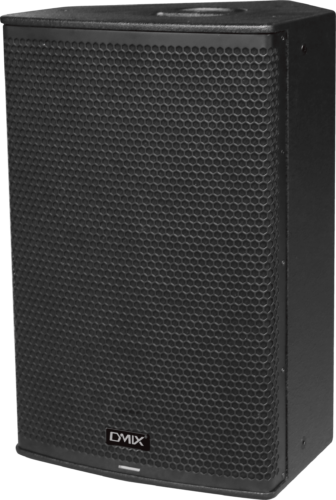

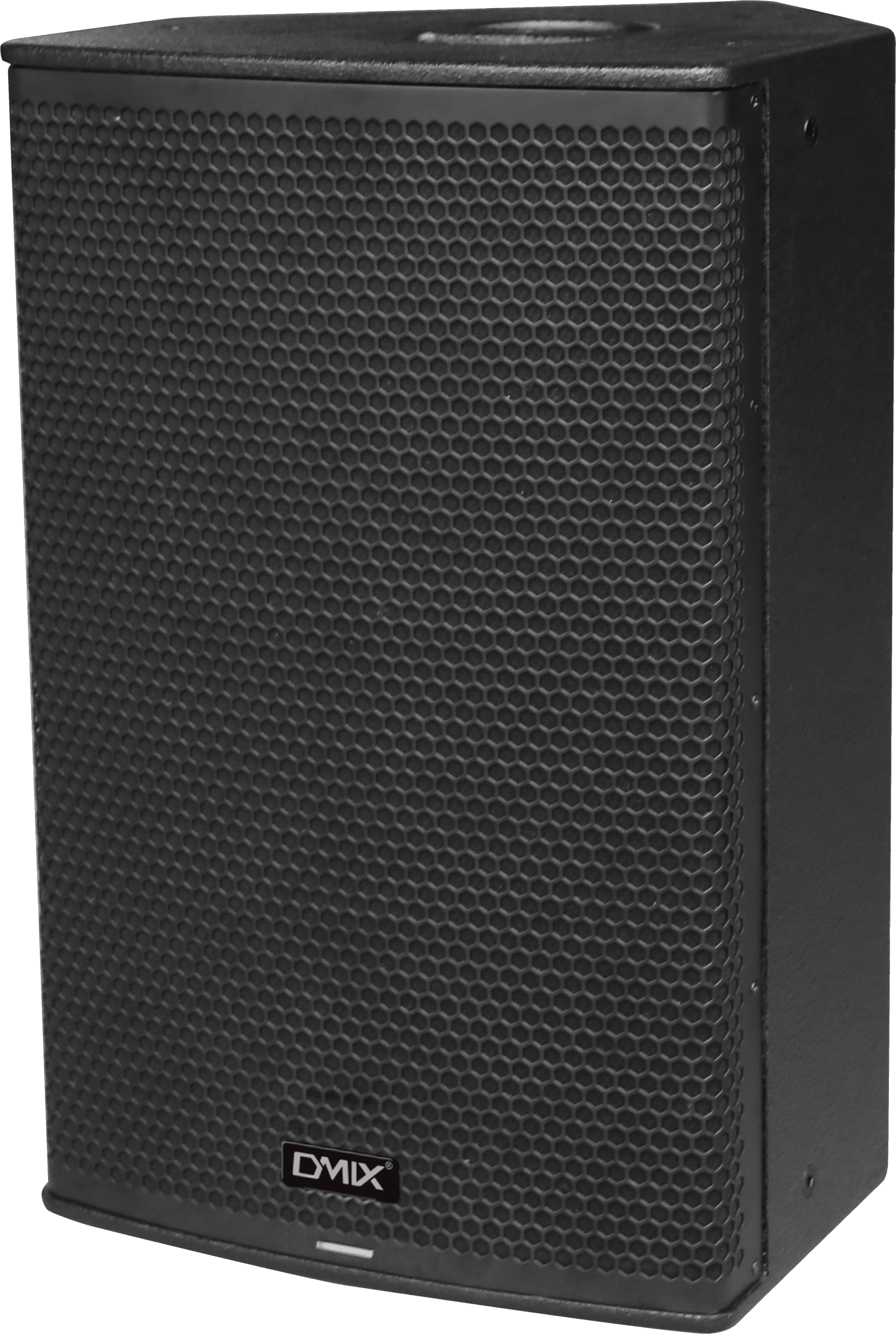

Dmix - CX112P

Speaker model: CX112P

Speaker type: 12”Active coaxial loudspeaker

Unit configuration: LF：12″ unit 2.5″(65mm）Voice coil

HF：1.7″（44mm）Voice coil driver

Frequency response: 70Hz-17kHz(-10dB)

Rated power: LF：250W， HF：50W

Sensitivity: LF：101dB， HF：109dB

Sound pressure level： 131dB (peak)

Radiation Angle: 60°×60°

Crossover point: DSP control

Size (mm) : 583×376×377 (W×H×D)

Module amplifier power: HF：150W，LF：500W (Class D)

Module input link: 1 balanced XLR input / 1 set of Dante signal input and output / 1 set of LINK output

Module DSP control: RS485、USB or Dante
