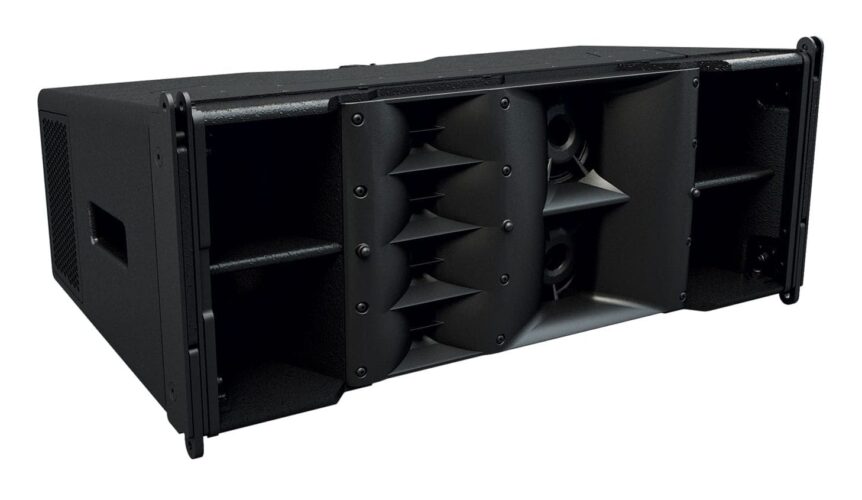

Martin Audio – Wavefront Precision WPC

Speakers

More details

Similar Products

MLA208a
  • DMIX

DMIX – MLA 208a

Speaker model: MLA 208a

Speaker type: Dual 8 "dichotomous active line array loudspeakers

Unit configuration: LF: 2×8"woofer 2"(50mm) Voice coil

HF: 2×1.4"(34mm) Voice coil high frequency driver

Frequency response: 75Hz-19kHz (-10dB)

Rated power: LF: 300W , HF: 60W

Sensitivity: LF: 98dB , HF: 107dB

Sound pressure level： 130dB (peak)

Radiation Angle: 110°×10° (adjustable)

Crossover point: DSP control

Size (mm) : 740×259×416 (W×H×D)

Module amplifier power: HF：300W，LF：1000W (Class D)/8Ω

Module input link: 2 balanced XLR inputs or 2 AES inputs or a set of Dante signal inputs and outputs

Module DSP control: RS485、USB or Dante

    Speakers
See the product
CS4D
  • DMIX

DMIX – CS-4D

Dante Network Transmission

Dante is used for audio transmission to achieve digital and network transmission management. Dante is based on layer 3 IP network technology and adopts Zeroconf protocol to simplify the network operation mode. It can realize long-distance transmission of two-way high-quality big data and perfect synchronous playback with low delay. The device is plug and play, system construction has no topology limitation, installation and configuration is convenient, and wiring is simple and easy.

PoE power supply

Ethernet power supply and audio and data transmission are integrated, simplifying cable layout and meeting Ethernet engineering specifications. PoE network cabling uses 50V dc power supply for bearing Ethernet cables, without restrictions on high-voltage ac cabling, and better meets site safety and fire prevention specifications.

Technical parameters：

Speaker model: CS-4D

Unit configuration: 4"(100mm) Speaker unit

Frequency range: 125Hz-20kHz

Rated power: 30W

Sound pressure level: 108dB

Sensitivity: 91dB

Coverage Angle: 100°×100°

DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment

Connection mode: RJ45 interface

Product size (mm) : 204×185 (Ф×H)

Opening size (mm) : Ф169

    Speakers
See the product
aimline-alx4-dante_1200px|aimline-alx4-dante_1200px
  • Aimline

Aimline – ALX 4.0 DANTE

The Aimline ALX4 DANTE is a digital steerable active column-speaker with DANTE®-Input. The Aimline ALX4 DANTE is a digital steerable active column-speaker with DANTE®-Input. The internal digital signal processor also enables a compressor, a gate, a 10-band-parametric equalizer and a delay to be placed into the audio-input path. With simple Windows-software every parameter can be set in real time. All speakers are recognized within a network by their IP-address. ALX-cabinets can be fully monitored for surveillance-issues. Thanks to its very small and unobtrusive enclosure the AIM­LINE-Speaker is a fit for most architecturally sensitive environment including mu­seums, churches, conference-rooms and many more challenging spaces and environments. With its two-channel DANTE®-input integration into existing IP-networks as well as a direct integration to other DANTE®-enabled products is simple.
    Speakers
See the product
