Technical parameters：

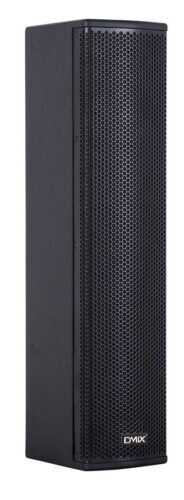

Speaker model: CA-306D
Unit configuration: 6×3″(75mm) Full frequency unit
Frequency range: 130Hz-20kHz
Rated power: 120W
Sound pressure level: 118dB
Sensitivity: 95dB
Coverage Angle: 100°×50°
DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment
Connection mode: RJ45 interface
Size (mm) : 124×548×154 (W×H×D)
BARE BR-10P8 POE Ceiling Speakers
● Drive: 1x8 "+ 3x0.5" Coaxial
● Frequency response range: 75Hz-20KHz (± 3dB)
● Maximum sound pressure level: 108dB
● Continuous power: 30W
● Impedance: 8Ω
● Cover angle (H × V): 90 ° × 90 °
● Audio input type Dante
Dante DP3 PoE Speaker is equipped with POE power supply, audio transmission and signal control via a RJ45 Ethernet port. It can obtain power from any Ethernet switch of 802.3 or above standard. Dante DP3 adopts SSA inverter technology allowing that the high-quality enlargement of superior sound quality on this compact speaker of low power design. The system is built with a plastic body and 4pcs 3 inch high efficient Neodymium driver. Over Dante™ Ethernet that transmits 24-bit audio (44.1K/48KHz) and its control signal can be routed through the Dante™ Controller. Dante DP3 integrates versatile functions like gain control, mute control, 5-band equalizer control and DSP with limit control. All these functions can perform remotely on the PC or Mac by DS Controller Software.
Features:
1. Built-in Dante module
2. Built-in power amplifier module and system efficiency > 70%
3. DSP controlling software
4. PoE power supply
5. Over-current protection, Thermal protection and Overload protection
