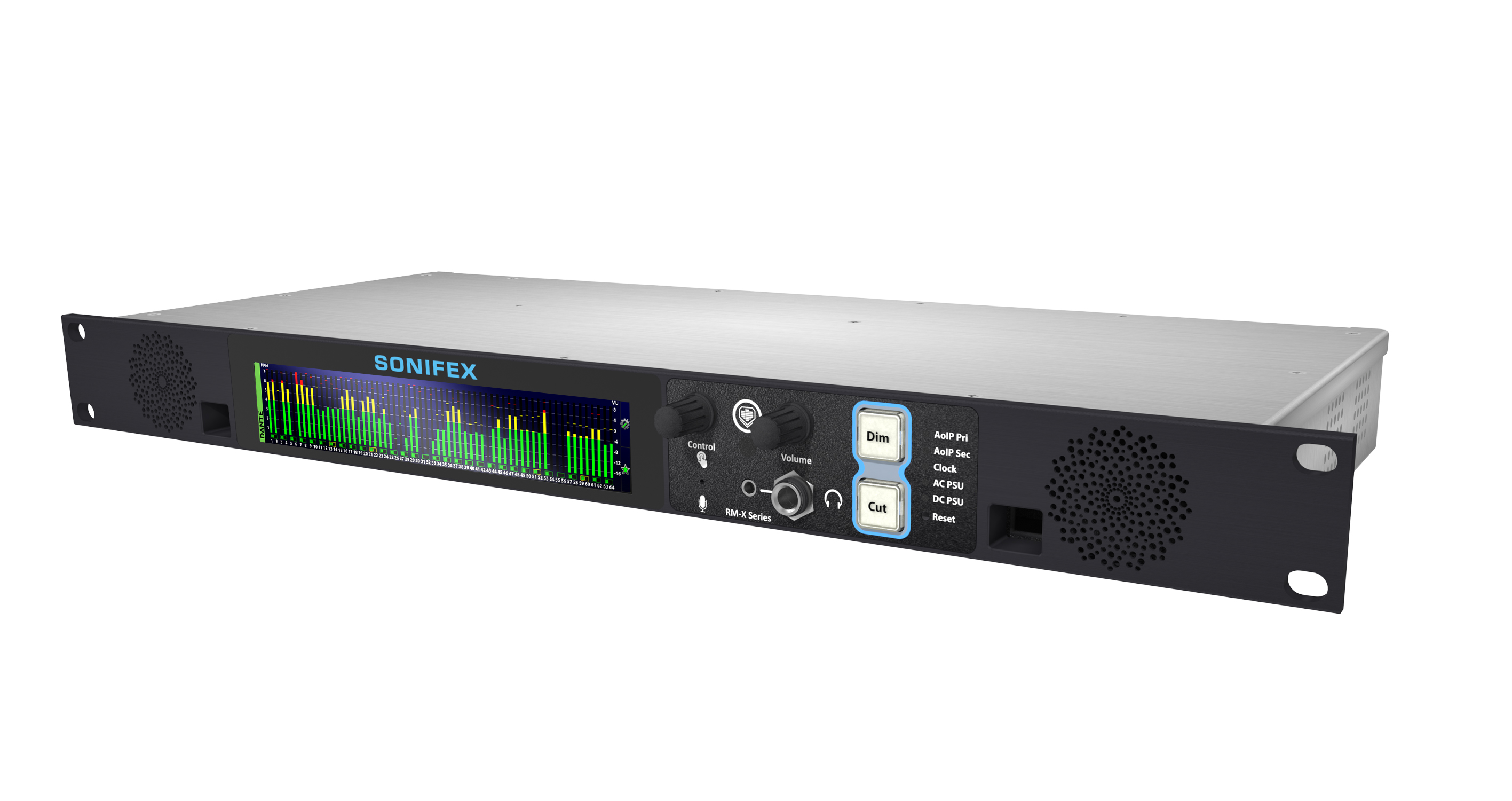

RM-X-64-DNT

Product Information

Designed for modern broadcast, live production, and critical audio environments, the RM-X-64-DNT reference monitor range delivers uncompromising flexibility and reliability in a compact 1U form factor. As standard, the unit features seamless Dante AoIP and MADI integration, intuitive control, fast source selection, and full redundancy, serving as the monitoring backbone of any professional workflow.

Product Features

128 channels, 64-channel Dante AoIP and 64-channel MADI.
2 expansion slots for additional sources.
Expansion source options:
- 8 Analogue input channels.
- 8 Stereo Digital inputs (16-channels).
- 12G-SDI inputs (up to 64-channels).
Built-in ported speakers with integrated grille.
Built-in microphone for talkback.
Digital & analogue XLR line out.
Full power and data redundancy.
AC and 12V DC power inputs.
Ambient light sensor.
Fully Dante compliant.
AES67 compatible.
Compact 1U design.
Depth less than 20.5cm (8 inches).

Specifications

Dante Input Channels: 64
Bit Depth: 16-bit, 24-bit, 32-bit
Sample Rate: 48kHz
AES67 Enabled

ASL – Enchorus ENC 1202

The ENCHORUS ENC 1202 Dante™-based audio network module offers eight line outputs with individual delay (at a maximum of 2.7sec.) and four line inputs, with a four-band equalizer on each input and output. The ENC 1202 features eight built-in mixing engines and support for sample frequencies up to 192kHz. The device is easy to control and monitor through a web interface. A built-in audio matrix allows flexible routing of all inputs, outputs, and mixer signals. The ENCHORUS Dante™-based audio network was designed specifically for stage applications, offering professional connectors and superior audio quality. All ENCHORUS models include filtering and mixing capabilities and can be configured very rapidly via the integrated web interface. ENCHORUS modules are tough enough on their own but also include rubber bumpers that allow them to be easily and safely stacked on stage.

Throw-down Box
8x line outputs with delay (max. 2.7sec.)
4x line inputs
Support of redundant Dante networks or daisy chainable
4-band EQ for each input and output
8x built-in mixing engines (16 inputs, stereo output)
Built-in audio matrix for flexible routing of all signals
Control via web interface
Sample rates: 44.1kHz/48kHz/88.2kHz/96kHz/176,4kHz/192kHz

I/O Interfaces, Mixers, Personal Mixing & Monitoring, Stageboxes

See the product

ASL – ENCHORUS ENC 1101

The ENCHORUS ENC 1101 Dante™-based audio network module offers eight AES3 outputs with individual delay (at a maximum of 2.7 seconds) and four AES3 inputs, with a four-band equalizer on each input and output. The ENC 1101 features eight built-in mixing engines and support for sample frequencies up to 192kHz. The device is easy to control and monitor through a web interface. A built-in audio matrix allows flexible routing of all inputs, outputs, and mixer signals. The ENCHORUS Dante™-based audio network was designed specifically for stage applications, offering professional connectors and superior audio quality. All ENCHORUS models include filtering and mixing capabilities and can be configured very rapidly via the integrated web interface. ENCHORUS modules are tough enough on their own but also include rubber bumpers that allow them to be easily and safely stacked on stage.

Throw-down Box
8x AES3 outputs with delay (max. 2.7 sec.)
4x AES3 inputs
Support of redundant Dante networks or daisy chainable
Four-band EQ for each input and output
8x built-in mixing engines (16 inputs, stereo output)
Built-in audio matrix for flexible routing of all signals
Control via web interface
Sample rates: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz
Sample rate converter on AES3 inputs from 8kHz to 192kHz
19” rack-mounting kit available

I/O Interfaces, Mixers, Personal Mixing & Monitoring, Stageboxes

See the product
