Product Information

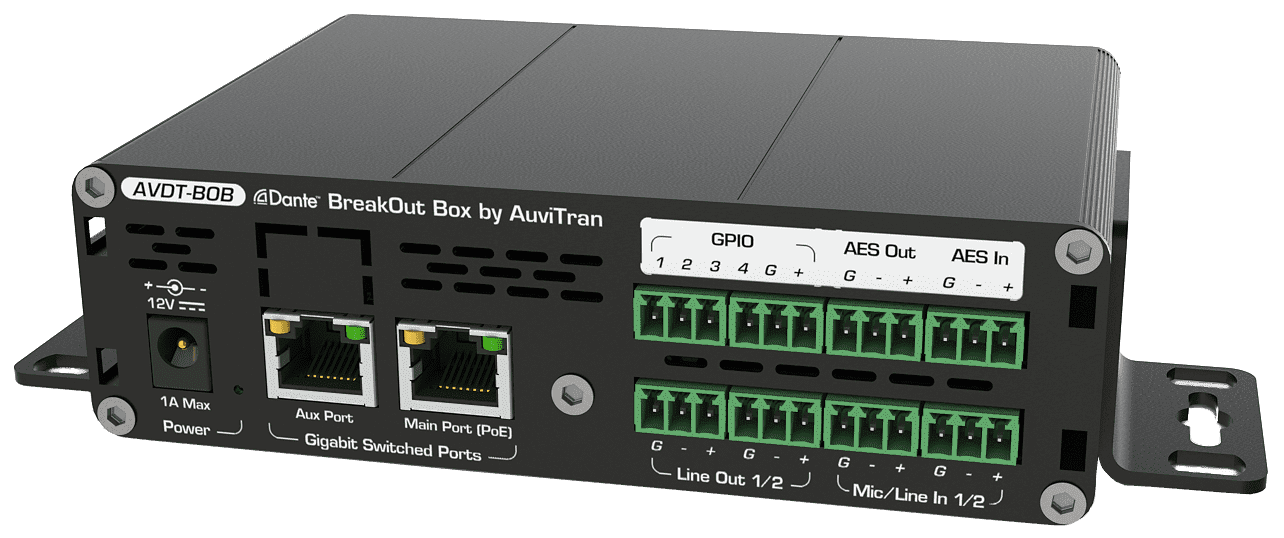

AVDT-BOB-ADE8IO is a compact Dante analog break-out box with embedded Digital Signal Processing. It provides two state-of-the-art analog microphone preamplifiers inputs, two analog line outputs, one stereo AES/EBU input, one AES/EBU output and four GPIOs on terminal block connectors.
AVDT-BOB-ADE8IO is a compact Dante analog break-out box with embedded Digital Signal Processing. It provides two state-of-the-art analog microphone preamplifiers inputs, two analog line outputs, one stereo AES/EBU input, one stereo AES/EBU output and four GPIOs on terminal block connectors.
Embedded DSP allows for full mixing of the four Dante inputs/outputs, the two analog inputs/outputs and the four AES/EBU inputs/outputs plus effects like parametric equalization, dynamic compression and fine pitch digital gain adjustment.
Four analog/digital GPIOs allows for hardware remote control of the device (e.g. volume control via potentiometer).
Two Gigabit switched ports allows for daisy-chained connection without any bandwidth bottleneck. One port provides Power-Over-Ethernet for direct power supply.
The embedded dual core processor runs a Web 2.0 server with user-friendly interface for multiplatform remote control over IP (iOS, Android, Windows, Mac OS, Linux).
Accessories like long-ears kit allows for mounting of up to three AVDT-BOB on 1U 19” rack.
Specifications
- Dante Ch: 4x4
- Bit Depth: 24-bit
- Sample Rate: 44.1kHz, 48kHz
