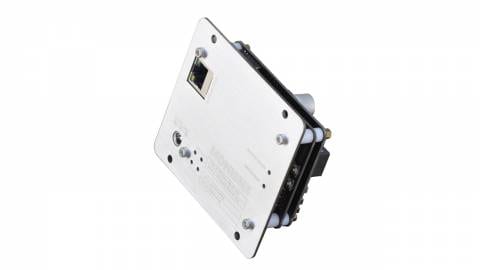

MONISMS – MNS-AMPMC30XXA-1P Series

I/O Interfaces

More details

Similar Products

musicrown-df16-16mne|musicrown-df16-16mne
  • Musicrown

Musicrown – DF16.16MNE

Musicrown's DF16.16MNE is a network digital matrix processor. Musicrown's DF16.16MNE is a network digital matrix processor.
  • 32 bit SHARC DSP, 96kHz sampling rate, 24 bit AD/DA convert.
  • 48x48 channels core matrix design, including 16 local analog input channels, 16 local analog output channels, 32 Dante network input channels and 32 Dante network output channels.
  • Fully supports scalable DANTE digital network audio card and AEC automatic echo noise cancellation card, the users can freely configure and choose according to their requirements.
  • Dante digital network audio card configuration is a double standard network interface, which fully supports the function of unite switching and hot backup, hardware system can distinguish automatically, can use immediately when it inserts. Software internal and local analog signal can realize fully sound mixing matrix processing. Each channel has independent DSP processing function.
  • Optional AEC automatic echo cancellation card has powerful automatic echo cancellation function, automatic feedback cancellation and system environmental noise filtering. Effectively reducing the pickup of the speakers and the terrible echo which caused by the reflection of wall. It can also eliminate environmental noise that generated by the feedback of pickup, moreover the noise of air conditioner and fan. Making sure any environment have a noise-free, high definition audio and video system for many conference applications.
  • Each analog input channels with +48V phantom power, MIC/LINK input gain switchable, MIC input sensitivity adjustable.
  • Input including low cut, independent feedback inhibition, PEQ, noise gate, gain, mute, phase, linkage adjustment and volume adjustment.
  • Output including X-over, PEQ, Gain, mute, compressor/limiter, phase, delay, linkage adjustment and volume adjustment.
  • All PEQ Gain, bandwidth, frequency continues adjustment. Type can be select by PEAK, L-SHELF, H-SHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2.
  • All high cut, low cut type can be select by Butterworth, Link witz-Riley, Bessel, slope can be chosen.
  • Noise gate’s threshold, time, ratio can be adjustment for inputs, compressor, limiter, ratio, time can be adjustment for outputs.
  • Maximal delay time 680mS for all output channels.
  • Pre settings can copy for every single channel, every channel can do link adjust.
  • Inside single generator(pink, white noise and 20-20K sine wave, amplitude adjustable).
  • Front panel has level indicator for input/output, USB port, standard Ethernet remote control RJ45 port and RS232&485 at rear panel. IP and ID address can set, network and unite management can realize maximal 255 units link control, but also has remote visit password protected function, make the system more stable and safe.
  • Design has thorough control code, fully support the third-party centre control and management, including all volume control, preset scene recall, parameter inquire and return code, current level return display, every input and output channels control. Etc.
  • 12 user presets, device and each preset can be save and recall alone. System can chose work at immediate storage status, adjusted parameter can store at preset immediately.
    I/O Interfaces
See the product
m5482_f_2000-1024x123
  • Studio Technologies

Studio Technologies – Model 5482 Dante Bridge

The Model 5482 Dante Bridge provides a high-performance means of interconnecting ("bridging") Dante audio-over-Ethernet channels associated with two independent local-area-networks (LANs) or Dante domains. The unit is compatible with the Dante Domain Manager™ (DDM) software application and is complaint with the AES67 technical standard. The Model 5482 allows up to 64 audio channels to pass in each direction. Internal sample rate conversion (SRC) capability provides sample rate, bit-depth, and timing conversion to ensure that audio signal integrity is maintained.

    I/O Interfaces
See the product
SSL-Network-IO_A32
  • Solid State Logic

SSL – Network I/O A32

The A32 provides SSL SuperAnalogueTM I/O to Dante and AES 67 based IP networks. The A32 provides SSL SuperAnalogueTM I/O to Dante and AES 67 based IP networks. A32 includes redundant network connections* and PSUs. It features 32 line inputs and 32 line outputs.
    I/O Interfaces
See the product
