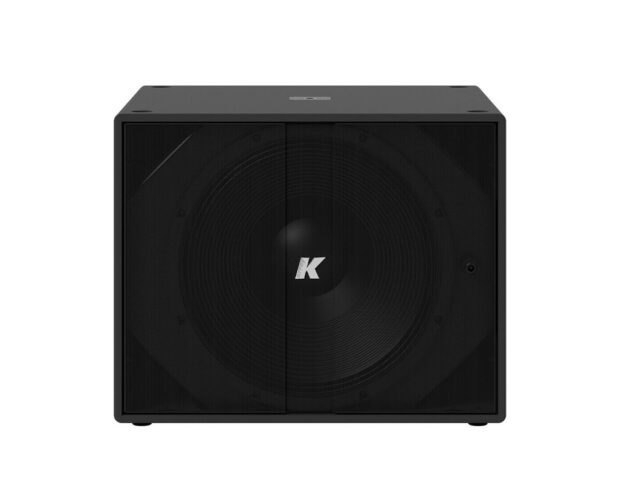

Thunder-KS3 I

Speakers

More Details

Similar Products

MLA208a
  • DMIX

DMIX – MLA 208a

Speaker model: MLA 208a

Speaker type: Dual 8 "dichotomous active line array loudspeakers

Unit configuration: LF: 2×8"woofer 2"(50mm) Voice coil

HF: 2×1.4"(34mm) Voice coil high frequency driver

Frequency response: 75Hz-19kHz (-10dB)

Rated power: LF: 300W , HF: 60W

Sensitivity: LF: 98dB , HF: 107dB

Sound pressure level： 130dB (peak)

Radiation Angle: 110°×10° (adjustable)

Crossover point: DSP control

Size (mm) : 740×259×416 (W×H×D)

Module amplifier power: HF：300W，LF：1000W (Class D)/8Ω

Module input link: 2 balanced XLR inputs or 2 AES inputs or a set of Dante signal inputs and outputs

Module DSP control: RS485、USB or Dante

    Speakers
See the product
alm8-4
  • Aimline

Aimline – ALM 8.4

The new ALM series transmits clear intelligible live announcements and precise messages. Thanks to the digitally controllable directional effect, the entire frequency spectrum can be heard in the desired sound coverage area. The combination of a long range and a wide horizontal opening angle has the advantage that just a few ALM loudspeakers cover a large area. Therefore, the ALM loudspeakers are particularly suitable for installations where a high level of speech intelligibility is required, for example in lecture halls, places of worship, airport terminals or shopping center. The ALM series is also equipped with a 24 volt power supply and is compatible with an EN 54 certifie emergency power supply system.

Configuring line array speakers has never been easier

Because of it´s modular structure of up to three lengths, the ALM series is easy to install. The automatic detection of your own IP address in the PAN C software accelerates the configuration process. The intuitive and uncomplicated PAN C software makes the configuration of line array speakers easier than ever. The software calculates the adjustable sound alignment as well as all internal parameters in real time.

Each ALM loudspeaker is designed as a real two-way system and has vertically arranged broadband loudspeakers for the low and mid-range as well as 4 tweeters for a silky, brilliant reproduction of the high-frequency range. Each individual loudspeaker is powered and controlled by a separate power amplifier and DSP channel. Using a complex computational algorithm in the DSP units, the vertical dispersion can be continuously controlled in the range between 5° – 40°. The desired range (focus distance) can also be adjusted continously.

Two analog channels, two DANTE® channels plus a 100 V input are available as inputs. The input DSP offers an adjustable limiter, a gate, delay function and a 10-band parametric Equalizer with IIR filters for each input. Due to the discrete visual design and the appealing housing the ALM series can be easily integrated into architecturally demanding environments. The variable sound dispersion makes difficult acoustic situations easy to handle and can be installed just with little effort.

    Speakers
See the product
amk-DS64|amk-DS64
  • AMK

AMK – DS64-C-X

The AMK DS64-C-X is a Dante™ audio network addressable and self-amplified ceiling speaker system. The speaker is powered by PoE+ network switch meaning no external power supply is required. The audio network system is also compatible with AES67 and it is Dante Domain Manager Ready. Which makes this speaker system to be flexible with other audio network systems as well. The AMK DS64-C-X is a Dante™ audio network addressable and self-amplified ceiling speaker system. The speaker is powered by PoE+ network switch meaning no external power supply is required. The speaker includes a Class D amplifier which provides effective use of power. This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations. The audio network system is also compatible with AES67 and it is Dante Domain Manager Ready. Which makes this speaker system to be flexible with other audio network systems as well. The system comes with 6.5” coaxial 25W loudspeaker driver, CX602, that has excellent dispersion, wide bandwidth and a smooth frequency response which makes this the top choice for today’s overhead commercial applications. One PoE+ amplified speaker can power a total of (4) speakers, including (3) additional passive speakers, with (2) speakers per audio zone. This assembly can be used in wide range of projects for paging and background music applications. The DS64-C-X is ideal for hotels, education, hospitals, retail stores, performing art centers, restaurants, airports, houses of worship, and board rooms.
    Speakers
See the product
