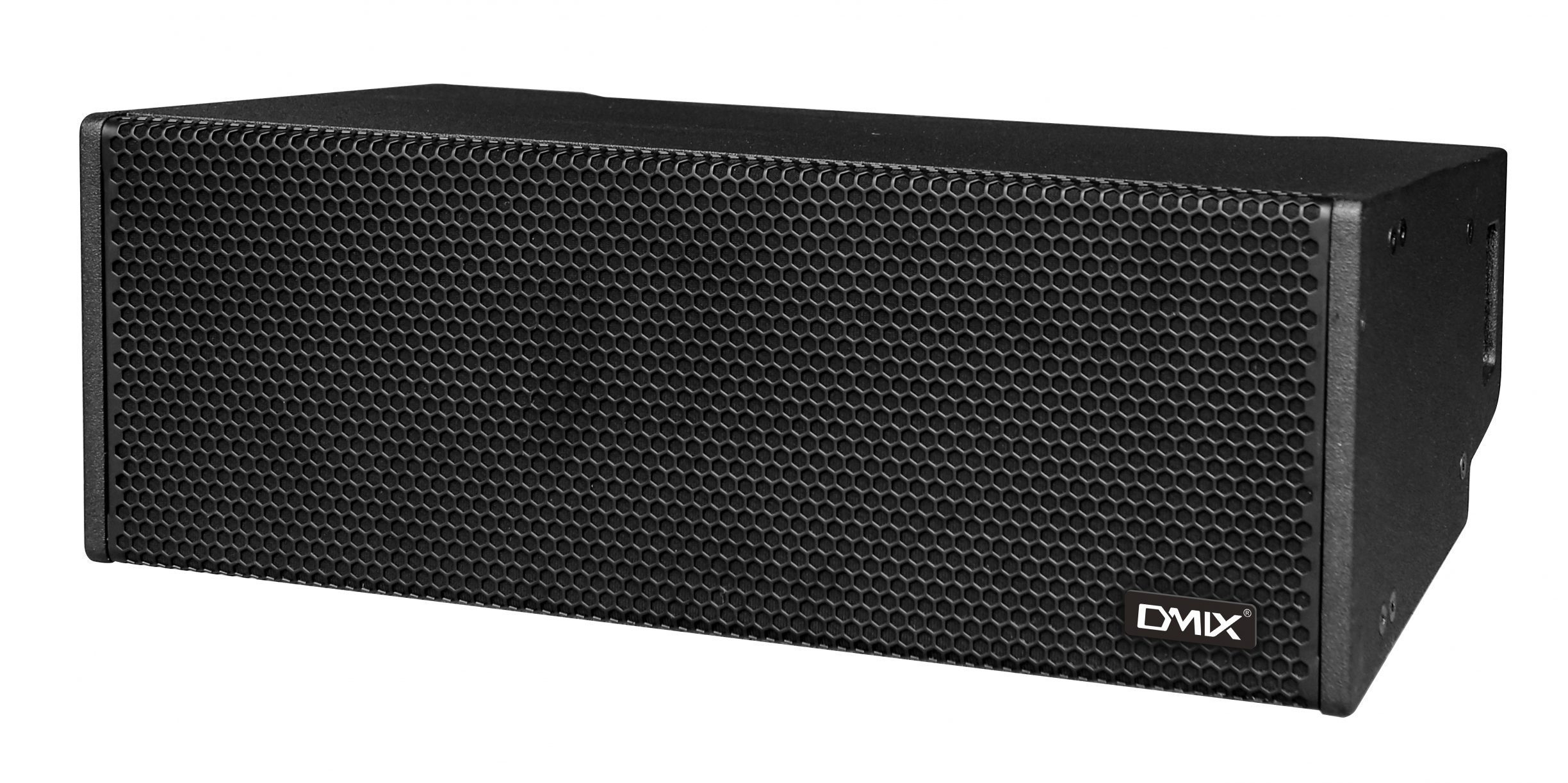

Dmix – MLA 208a

Speaker model: MLA 208a

Speaker type: Dual 8 “dichotomous active line array loudspeakers

Unit configuration: LF: 2×8″woofer 2″(50mm) Voice coil

HF: 2×1.4″(34mm) Voice coil high frequency driver

Frequency response: 75Hz-19kHz (-10dB)

Rated power: LF: 300W , HF: 60W

Sensitivity: LF: 98dB , HF: 107dB

Sound pressure level: 130dB (peak)

Radiation Angle: 110°×10° (adjustable)

Crossover point: DSP control

Size (mm) : 740×259×416 (W×H×D)

Module amplifier power: HF:300W,LF:1000W (Class D)/8Ω

Module input link: 2 balanced XLR inputs or 2 AES inputs or a set of Dante signal inputs and outputs

Module DSP control: RS485、USB or Dante
