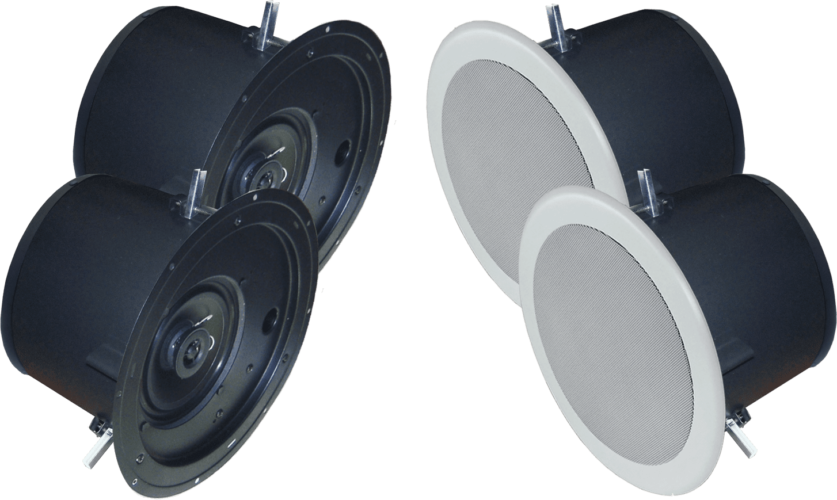

AMK – DS64-C-X

Speakers

More details

Similar Products

steffens-Evo-PBS
  • Steffens Systems

Steffens Systems – Evo-PBS

Evo-PBS is a self-powered, modular, electronically steerable column array speaker with excellent speech intelligibility and sound quality even in difficult acoustic environments. Evo-PBS is a self-powered, modular, electronically steerable column array speaker with excellent speech intelligibility and sound quality even in difficult acoustic environments. Evo PBS modules can be combined to build column arrays consisting of up to six modules. Each of the eight individual audio channels per module is driven by a 100W class D amplifier. The advanced beamsteering algorithm enables configuration of up to six individually controllable beams per array, each with a freely selectable acoustic centre. Additionally, side lobes can be suppressed by up to 20dB, maximizing speech intelligibility even in the most challenging acoustic environments. Each module contains:
  • 8x 4¼” neodymium full-range speakers and
  • 16x 1.1” neodymium tweeters
Additional features:
  • FIR-based beamforming algorithm
  • User-definable 8-Band parametric equalizer
  • Look-ahead RMS and peak Limiter
  • User-definable delay.
  • Side Lobe Suppression (SLS)
Interfaces:
  • Power (100 to 240 VAC, 50 to 60 Hz)
  • Balanced analogue line in (THD+N < 0,01%)
  • AES in
  • AES out
  • RS485
  • Network (for configuration)
  • DANTE (optional)
Dimensions: 930mm x 156mm x 170mm per module RAL 9010 (custom RAL colour optional)
    Speakers
See the product
ALPoE4-1
  • Aimline

Aimline – AL 4.1 PoE+

The Aimline PoE+ series includes column loudspeaker with an integrated power amplifier that uses Power over Ethernet (PoE+). There is no need for any additional power supply. Thanks to highly efficient power electronics and a specially developed power amplifier an output of 30 W / 60 W peak (when using a PoE+ supply) can be achieved. Two channels DANTE® are available with 10-Bd IIR filters, delay and the 24 internal presets offer all necessary configurations. It is controlled and monitored using the IP-based PAN C software.

All active AIMLINE digital systems can therefore be controlled via just one software interface.

Easy connection – just one cable

This system will solve the issue of having to provide a separate amplifier or I/O interfaces for speaker installations using just a single CAT cable over long distance. This assembly can be used in wide range of projects for paging and background music applications. The AIMLINE AL 4.1 PoE+ is ideal for hotels, education, huddle rooms, hospitals, retail stores, restaurants, airports, houses of worship, and boardrooms.

    Speakers
See the product
amk-DS62|amk-DS62
  • AMK

AMK – DS62-A-X

The AMK DS62-A-X is a Dante™ audio network addressable and self-amplified ceiling speaker system. The speaker is powered by PoE+ network switch meaning no external power supply is required. The audio network system is also compatible with AES67 and it is Dante Domain Manager Ready. Which makes this speaker system to be flexible with other audio network systems as well. The AMK DS62-A-X is a Dante™ audio network addressable and self-amplified ceiling speaker system. The speaker is powered by PoE+ network switch meaning no external power supply is required. The speaker includes a Class D amplifier which provides effective use of power. This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations. The audio network system is also compatible with AES67 and it is Dante Domain Manager Ready. Which makes this speaker system to be flexible with other audio network systems as well. The system comes with 6.5” coaxial 25W loudspeaker driver, CX602, that has excellent dispersion, wide bandwidth and a smooth frequency response which makes this the top choice for today’s overhead commercial applications. One PoE+ amplified speaker can power a total of (2) speakers, one active and one passive speaker. This assembly can be used in wide range of projects for paging and background music applications. The DS62-A-X is ideal for hotels, education, hospitals, retail stores, performing art centers, restaurants, airports, houses of worship, and board rooms.
    Speakers
See the product
