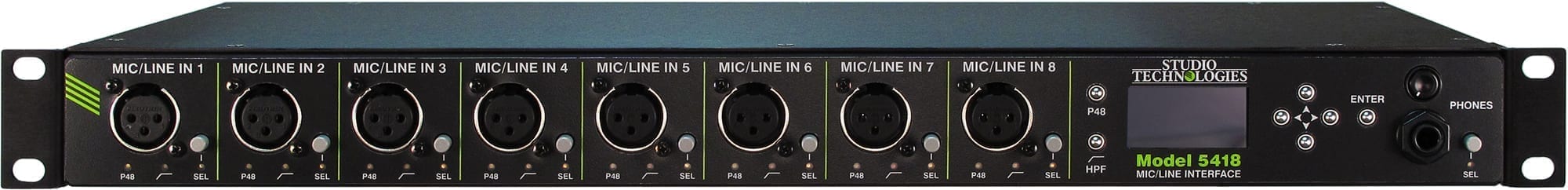

Studio Technologies – Model 5418 Mic/Line Interface

Microphone Preamps

More details

Similar Products

Whirlwind_-_ES4_Digital_Snake|Whirlwind_-_ES4_Digital_Snake
  • Whirlwind

Whirlwind – ES4 Digital Snake

The ES4 system offers sixteen channels of American made, professional quality microphone preamplification and eight line level return channels via a choice of digital transport formats. The ES4 system offers sixteen channels of American made, professional quality microphone preamplification and eight line level return channels via a choice of digital transport formats. Each ES4T (transmitter) and ES4R (receiver) can be configured for Cobranet®, or Dante® formats by simply changing the network module in the unit. The exceptional performance, ease of use, and extreme flexibility make the ES4 series products excellent I/O devices for any digital audio network. The typical Whirlwind ES4 system consists of two components: the ES4T transmitter module, which has sixteen balanced mic/line inputs and eight line level outputs. The matching ES4R receiver module has sixteen line level outputs and eight line level inputs. All inputs have variable gain controls and LED level monitoring.
    Microphone Preamps
See the product
studio-technologies-m5205_600px|studio-technologies-m5205_600px
  • Studio Technologies

Studio Technologies – Model 5205 Mic/Line to Dante Interface

The Model 5205 Mic/Line to Dante Interface is a general-purpose audio device that supports applications utilizing the Dante® audio-over-Ethernet media networking technology. The Model 5205 Mic/Line to Dante Interface is a general-purpose audio device that supports applications utilizing the Dante® audio-over-Ethernet media networking technology. Two analog microphone or line-level audio signals can be connected to the Model 5205. They are amplified as required and then converted to digital audio channels on an associated Dante connection. With the inherent interoperability of Dante, the Model 5205 can be used with other Studio Technologies Dante-enabled products or a multitude of devices from many other manufacturers. Microphone or line-level balanced analog audio signals are connected using two 3-pin XLR connectors. The gain of the associated preamplifier circuitry can be selected for 0, 20, 30, 40, 50, or 60 dB. P48 phantom power is provided to support condenser microphones. LEDs display the status of the gain and phantom power functions. Multi-step LED meters provide confirmation of the level of the two Dante transmitter (output) audio channels. The gain of the preamplifiers and on/off status of the P48 phantom power sources can be selected locally using the pushbutton switches. They can also be monitored and selected remotely using the STcontroller application. The audio quality of the Model 5205's two audio channels is excellent, with low distortion, low noise, and high headroom. Careful circuit design and rugged components ensure long, reliable operation. A wide range of applications can be supported, including TV, radio, and streaming broadcast events, corporate and government AV installations, and post-production facilities. The Model 5205 requires an Ethernet connection to supply both the data interface as well as Power-over-Ethernet (PoE) power. This requires an Ethernet connection from a PoE-enabled Ethernet switch. Alternately, the Model 5205 can be powered by an external midspan PoE power injector. Key Features
  • Dante audio-over-Ethernet technology
  • Two analog mic/line inputs to Dante digital audio outputs
  • Selectable preamplifier gain and P48 phantom power
  • Audio channel level metering
  • Excellent audio quality
  • Power-over-Ethernet (PoE) powered
  • Standard connectors; compact, lightweight design
  • Configured using STcontroller application
    Microphone Preamps
See the product
grace-design-m802_600px|grace-design-m802_600px
  • Grace Design

Grace Design – m802

This product has reached “end of life”.  Please refer to Grace Design's m108 mic preamp. Possibly the world’s most evolved mic preamplifier, the m802 delivers functionality and performance which simply doesn’t exist in any other mic preamp design. The core is a high fidelity 8 channel microphone preamplifier designed to be extremely transparent and musical. But that’s just the beginning. The m802 is fully remote controllable. With our full featured stand alone hardware RCU (optional), up to 64 channels (a system of 8 m802’s) can be addressed and controlled seamlessly from up to 1000’ away. All preamplifier functions, including gain, phase, 48V phantom are instantly accessible and adjustable. These settings can then all be stored into preset locations and instantly recalled. The m802 can also be controlled directly from Digidesign® ProTools|HD® systems, compatible control surfaces and many other MIDI devices. Working with Digidesign®, we have adapted their control spec to directly address the m802 as an integrated part of a ProTools|HD® system. Additionally, the m802 can be controlled by a wide variety of MIDI mappable devices, making it easily integrated into a wide variety of remote recording situations. Next, consider the optional 8 channel 24bit/192kHz A/D card option. Developed as the perfect complement to the m802 mic preamplifier design, this converter card provides pristine, musical A/D conversion to rival even the finest stand alone units available. Included is our proprietary unique s-Lock™ dual stage PLL for extremely low intrinsic jitter and rock solid digital performance. The m802 now includes ribbon mic mode, which shifts the preamplifier’s entire gain range up 10dB, while deactivating 48V phantom power, optimizing input impedance and bypassing the decoupling capacitors. While the m802 works beautifully as a stand alone mic preamplifier, the optional Remote Control Unit (RCU) provides fantastic ergonomics and enhanced system control. This updated RCU now offers dedicated individual channel select switches and a new highly visible blue LED numeric display for channel gain settings. Both the RCU and the m802 now come with a high contrast, neutral backlight LCD. Whatever your application, we invite you to discover the remarkable sonic performance, functionality and reliability of the new m802. We’re confident that it will help you make the finest recordings of your career.
    Microphone Preamps
See the product
