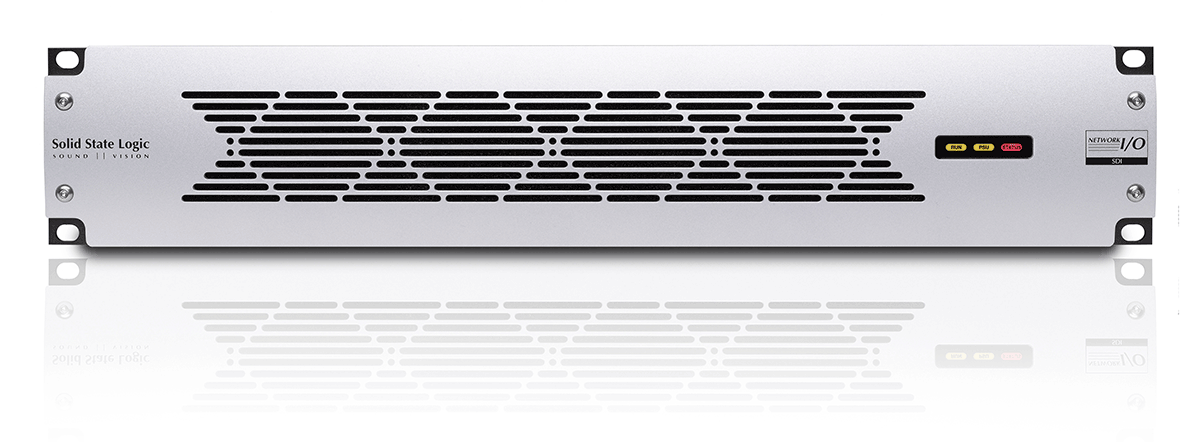

SSL – Network I/O SDI

I/O Interfaces

More details

Similar Products

CgAGfFw9V1yAW18CAADD19-Dau0611
  • Soundking

Soundking – CXA037

This Dante adapter is designed with one RJ45 Dante input and two XLR analog outputs. This product enables simple connection of analog equipment to a Dante network, and can  receive audio channels from a Dante network and provide studio-quality, low-latency audio via an XLR connector to analog audio equipment. Any audio available on the Dante network can be routed via the XLR outputs to an amplifier, powered speaker, mixing console, digital signal processor(DSP), or other analog audio equipment.

Analog output version:Dante signal turns into analog audio signal output, when connecting an amplifier, a speaker, etc.

Analog input version: analog audio signal turns into Dante signal output, which is suitable for mixer, instrument, etc.

As with other Dante products, the freely available Dante Controller software application is used to automatically discover and configure Dante analog output module to the Dante network. Device names, channel labels, signal routing and other parameters(for example, sample rate and latency) can be configured via the network using Dante Controller. A variety of network and clock synchronisation diagnostic tools are also available in Dante Controller.

This Dante adapter uses Power over Ethernet(PoE). Power can be provided from a PoE-capable network switch, or from a separate PoE injector.

    I/O Interfaces
See the product
AudioScience - Iyo Dante
  • AudioScience

AudioScience – Iyo Dante 0.16LD

The Iyo Dante® is a cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces in a 1U rack mount format. The 0.16LD provides 16 balanced outputs. the output levels are configurable up to +24dBu. With DB-25/AES59 terminations.

RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming status.

The Iyo family feature an embedded web server, allowing configuration and monitoring of input and output levels. Routing is achieved using the Dante Controller.

Power is provided from a built-in universal AC power supply. Redundant power is available using an external 12VDC supply via a locking 2.1mm jack.

All units can also be operated in Livewire+ AES67 interoperability mode.

    I/O Interfaces
  • Dante Ch: 0x16
  • 16-bit, 24-bit, 32-bit
See the product
Transfer_3-4front
  • FRENETIK

FRENETIK – Transfer +

4 x 4 Dante ™ converter
Allows the conversion and distribution of 4 analog sources on the Dante ™ network and 4 Dante ™ sources in analog line level • Microphone (with detachable phantom power) / line inputs • Detachable euroblock input / output connectors • LCD configuration screen • Mains power supply included

Technical data:

Type: Dante™ interface 4x4
Input Connectors: 4 x euroblock
Output Connectors: 4 x euroblock
Input impedance: > 11 kohms
Maximum input level: + 12dBu
Output impedance: < 100 ohms
Maximum output level: + 12 dBu
Frequency reponses: 20 Hz - 20 kHz (+- 0,2dB)
THD: < 0.012% (@ 1kHz +12 dBu)
Power supply: 100 - 240 V, 50/60 Hz
Consumption: 7,5 W
Dimensions (HxWxD): 45 x 215 x 145 mm
Weight: 1.38 kg (excluding accessories)

    I/O Interfaces
See the product
