Soundking – CXA037

Product Information

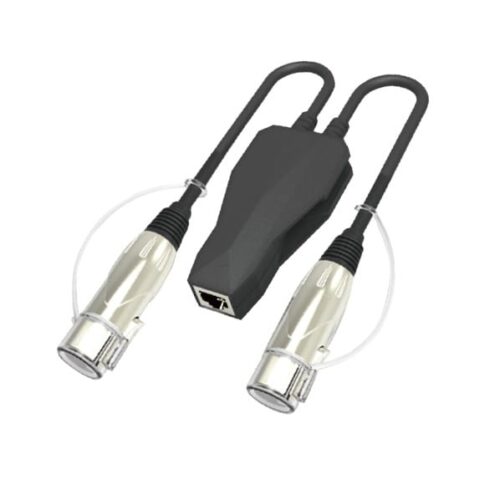

This Dante adapter is designed with one RJ45 Dante input and two XLR analog outputs. This product enables simple connection of analog equipment to a Dante network, and can receive audio channels from a Dante network and provide studio-quality, low-latency audio via an XLR connector to analog audio equipment. Any audio available on the Dante network can be routed via the XLR outputs to an amplifier, powered speaker, mixing console, digital signal processor(DSP), or other analog audio equipment.

Analog output version:Dante signal turns into analog audio signal output, when connecting an amplifier, a speaker, etc.

Analog input version: analog audio signal turns into Dante signal output, which is suitable for mixer, instrument, etc.

As with other Dante products, the freely available Dante Controller software application is used to automatically discover and configure Dante analog output module to the Dante network. Device names, channel labels, signal routing and other parameters(for example, sample rate and latency) can be configured via the network using Dante Controller. A variety of network and clock synchronisation diagnostic tools are also available in Dante Controller.

This Dante adapter uses Power over Ethernet(PoE). Power can be provided from a PoE-capable network switch, or from a separate PoE injector.
