I/O Interfaces
FRENETIK – Transfer +

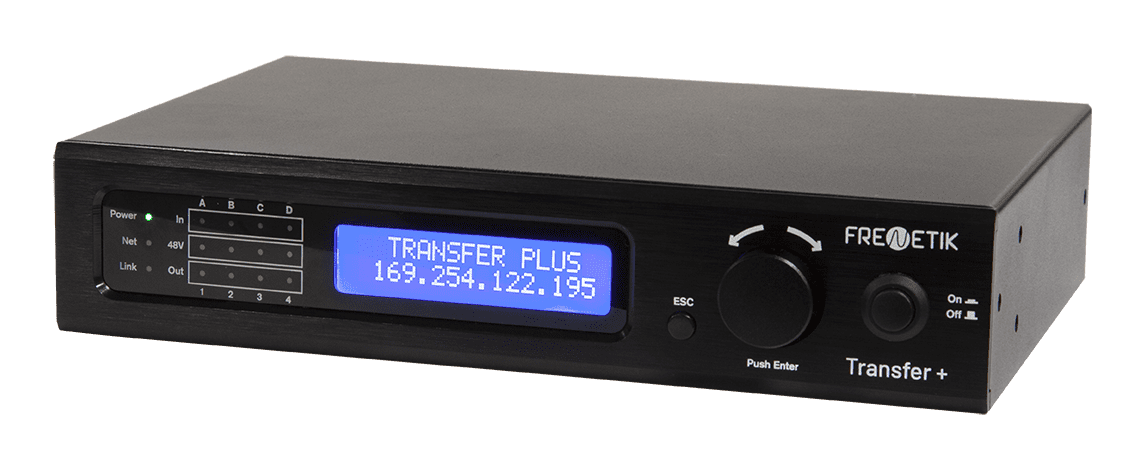

4 x 4 Dante ™ converter
Allows the conversion and distribution of 4 analog sources on the Dante ™ network and 4 Dante ™ sources in analog line level • Microphone (with detachable phantom power) / line inputs • Detachable euroblock input / output connectors • LCD configuration screen • Mains power supply included
Technical data:
Type: Dante™ interface 4×4
Input Connectors: 4 x euroblock
Output Connectors: 4 x euroblock
Input impedance: > 11 kohms
Maximum input level: + 12dBu
Output impedance: < 100 ohms
Maximum output level: + 12 dBu
Frequency reponses: 20 Hz – 20 kHz (+- 0,2dB)
THD: < 0.012% (@ 1kHz +12 dBu)
Power supply: 100 – 240 V, 50/60 Hz
Consumption: 7,5 W
Dimensions (HxWxD): 45 x 215 x 145 mm
Weight: 1.38 kg (excluding accessories)
