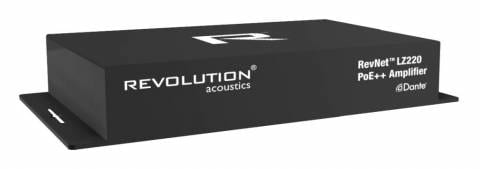

Revolution Acoustics – RevNet LZ220

Now you can power SSP6 Multiducers using audio from your Dante network. The LZ220 amp is a single cable device designed for use in small or medium zones, with no need for a local power outlet. The amp uses a 60W port on a PoE++ switch (or comparable injector) with the convenience of either low impedance or constant voltage speaker outputs.

Now you can power SSP6 Multiducers using audio from your Dante network. The LZ220 amp is a single cable device designed for use in small or medium zones, with no need for a local power outlet. The amp uses a 60W port on a PoE++ switch (or comparable injector) with the convenience of either low impedance or constant voltage speaker outputs.

Specifications

• Configurations
  • 4/8/16 Ω
• Power Output
  • 2 x 20W
• Control Options
  • Dante®
• DSP processes/EQ
  • EQ optimized for SSP6
• Frequency Response
  • 20 Hz – 20 kHz, 4/8 Ω
• Connectors
  • Input: Dante (RJ45)
  • Output: Euroblock
• Regulatory
  • UL 2043 listed, CE, RoHS
• Weight
  • 0.60 lbs (0.27 kg)
• Dimensions
  • 1.20” H x 6.70” W x 4.31” D (30.4mm H x 170.1mm W x 109.4mm D)
