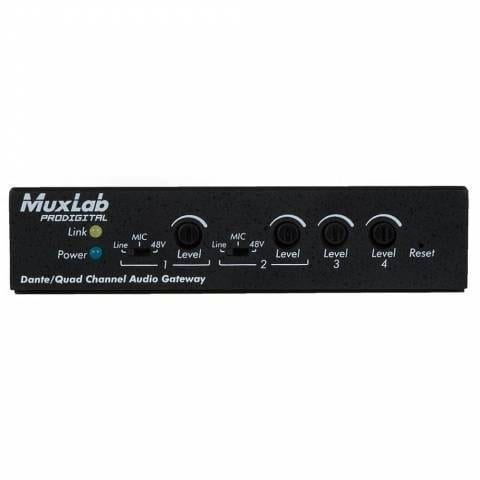

Muxlab – Dante/Quad Channel Audio PoE Gateway

I/O Interfaces

More details

Similar Products

hugel-pru
  • Hugel

Hugel – PRU

The PRU basically serves as a audio router with up to 4 interfaces with 64 channels each in a 19"/1RU case. Every single input can be routed to one or many outputs using the EmBER+ interface. For each of the 4 interfaces the protocol can be chosen to be either Dante (Audinate's Brooklyn II) or SMPTE-2110 (Ross Video's Liberty). The built-in sample rate converters allow therefore up to 4 independently synchonized clock domains to be connected to the PRU. Using two of each module type, a 128-channel bridge between Dante and SMPTE-2110 can be formed. Optionally PRU can be extended by a central intercom matrix. The 256x256 matrix is fully equipped with summing and level adjusting features.

    I/O Interfaces
See the product
mansion-DIC4E3A|mansion-DIC4E3A
  • Mansion

Mansion – DIC4E43A

DIC4E43A is a high quality Dante interface box for converting four Dante channels to Analogue Audio outputs, and four Analogue Audio inputs to Dante network. DIC4E43A is a high quality Dante interface box for converting four Dante channels to Analogue Audio outputs, and four Analogue Audio inputs to Dante network. Features
  • Provides Dante Interface for Four Inputs / Outputs
  • Four Standard MIC or LINE Audio Channels Converts to Dante Network
  • MIC/LINE selectable on Each Input
  • Gain Control on Each Input
  • Provides 48V Phantom Power for Each Condenser Microphone Input
  • Accepts Balanced or Unbalanced Signal Inputs
  • Each Audio Input Signal LED on Front Panel
  • Each Audio Output Signal LED on Front Panel
  • Four Balanced Audio Output Line Level from Dante Network
  • High Resolution 24 Bit Converts Analog to Digital and Digital to Analog
  • LEDs Indicate the Status for Power and Network Sync
  • Powered by External 24VDC Power Supply
  • Normal Operation with PoE Enable Network Switch
