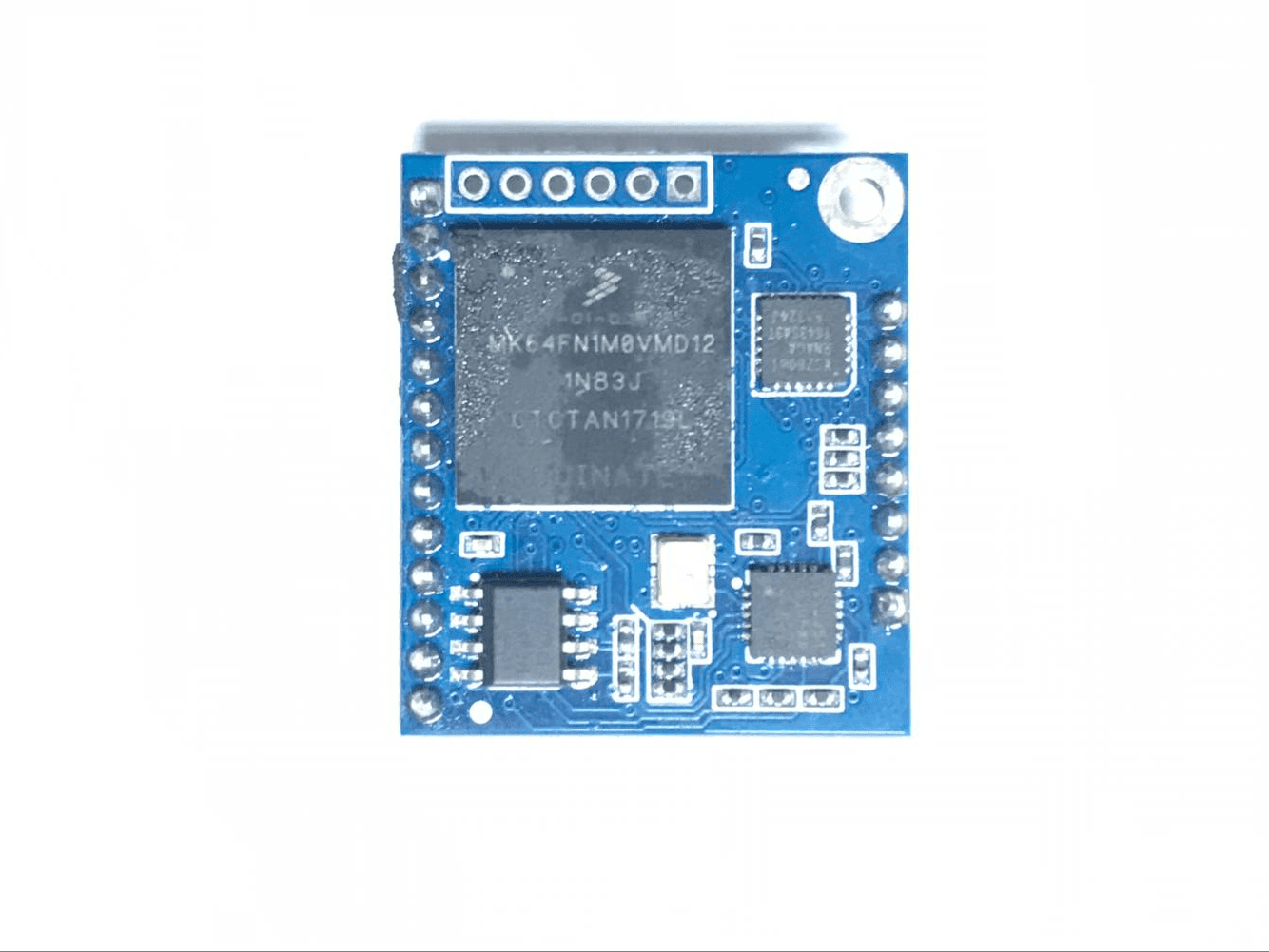

Kingray – MDT22-E1

Dante Interface Cards

More details

Similar Products

Biamp|Biamp
  • Biamp

Biamp – Tesira DAN-1

The Dante-enabled DAN-1 digital server networking card functions as a gateway interface to support 64x64 channels of Dante networked audio.
    Dante Interface Cards
See the product
musicrown-dms-dsp|musicrown-dms-dsp
  • Musicrown

Musicrown – DMS DSP

Musicrown's DMS DSP is a Dante interface card.  Musicrown's DMS DSP is a Dante interface card.
  • 32 bit SHARC DSP processing, 48kHz sampling rate, 24 bit AD/DA convert.
  • 8X8 core matrix, support 4 input channels, 4 output channels, far-end support 4 channels digital input and 4 channels digital output.
  • Dante digital network port configuration is a double standard network interface, which fully supports the function of unite switching and hot backup. Digital audio channel can support 4IN/4OUT, using 24-bit precision and extremely low network latency.
  • DSP input channel including noise gate, gain, mute, phase, link adjustment.
  • DSP output channel including X-over, 7 band PEQ, Gain, mute, compressor/limiter, phase, delay and link adjustment.
  • All PEQ Gain, bandwidth, frequency continues adjustment. Type can be select by PEAK, H-SHELF, L-SHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2.
  • All high cut, low-cut filter type can be select by Butterworth, Link witz-Riley, Bessel, slope can be chosen.
  • Noise gate's threshold, time, ratio can be adjustment for inputs, compressor, limiter, ratio, time can be adjustment for outputs.
  • Maximal delay time 680mS for all input/output channels.
  • Inside single generator(pink, white noise and 20~20K sine wave, amplitude adjustable).
  • Hardware with 4 channel I/O monitor, supporting temperature, level, fault data sampling.
  • 30 user presets, device and each preset can be save and recall alone. Password protection function for high level applications.
  • PC software support USB, network TCP IP, Dante port on-line, real-time display of automatically searched IP address, One-button linkage easy for user’s operation more convenient and swift.
  • Module power supply mode is DC9V-12V 1A.
  • Module size is 100mmx66mmx40mm.
DMS Series:
  • DMS 2.0 - 2 analog input, 2 Dante output
  • DMS 0.2 - 2 analog output, 2 Dante input
  • DMS 2.2 - 2 analog input/output, 2 Dante input/output
  • DMS 4.0 - 4 analog input, 4 Dante output
  • DMS 0.4 - 4 analog output, 4 Dante input
  • DMS 4.4 - 4 analog input/output, 4 Dante input/output
    Dante Interface Cards
See the product
  • AudioScience

ASI5752 Dante sound card

The ASI5751 and ASI5752 provides Dante inputs and outputs on Gigabit Ethernet in a small form factor half height PCIe card. They support both Windows and Linux operating systems with the ability to have up to 8 cards in 1 system to maximize capacity.

The ASI5751 provides either 16 Play/Record Stereo or 32 Play/Record Mono streams of PCM playback and record at 32-bit PCM precision with a sample rate of 48kHz. The ASI5751 also features advanced Mixing and Routing: AudioScience’s unique 'anything to anywhere' mixing and routing capabilities offer unparalleled flexibility and control, making it ideal for intricate audio workflows.

The ASI5752 is designed for low-latency applications and routes 64 channels of Dante input and output to configurable WDM devices that can be set as 1,2,4 or 8 channels, giving you a flexible design and increased capacity for demanding applications while streamlining the signal flow for simpler operation.

For complex or simple audio setups, the ASI5751 and ASI5752 provide unparalleled flexibility and performance. This makes them exceptional choices for broadcast, installation, and live sound applications.

    Dante Interface Cards
See the product
