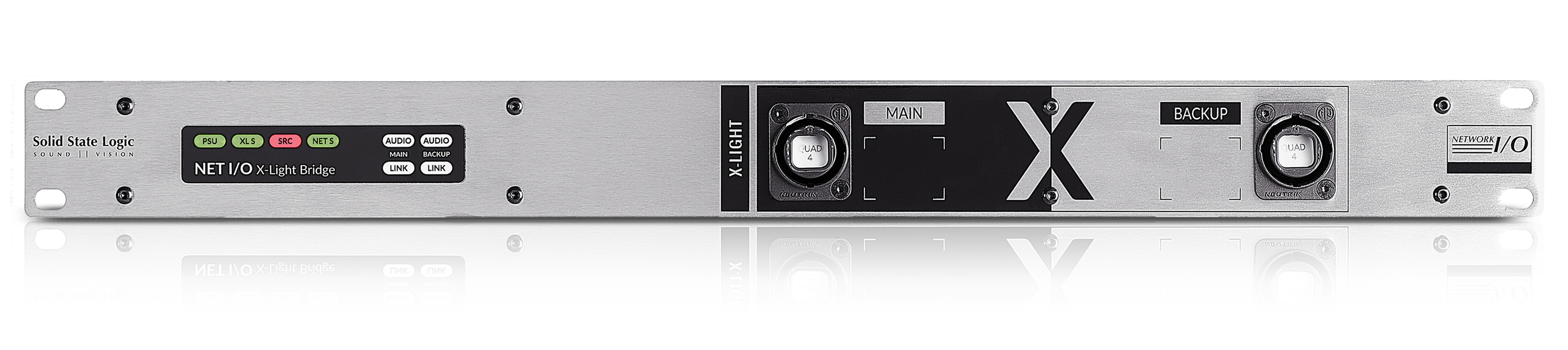

For the touring market, a new 1U X-Light Bridge interface designed to be deployed within stage I/O racks, features a fully redundant pair of X-Light connections using Neutrik opticalCON Quad format connectors on the front panel.
For the touring market, a new 1U X-Light Bridge interface designed to be deployed within stage I/O racks, features a fully redundant pair of X-Light connections using Neutrik opticalCON Quad format connectors on the front panel. On the rear panel there are two redundant pairs of Neutrik etherCON format Dante connections for audio and control distribution. Up to eight SB 32.24 stageboxes can now be connected via a pair of network switches to a single X-Light Bridge redundantly at 96 kHz with gain control of each input. There are no big workflow changes either! X-Light Bridge provides a seamless I/O boost for the user, as the routing process in the console interface is exactly the same via the X-Light Bridge as it is via the existing local Dante Expander Module. This includes the ability to configure the X-Light channel capacity as Virtual Tie Lines, for routing in Dante Controller, or as Dual Domain Routes for seamless routing and control from console channels.
Specifications
- Dante Ch: 256x256
- Bit Depth: 24-bit
- Sample Rate: 48kHz, 96kHz
- AES67 Enabled
