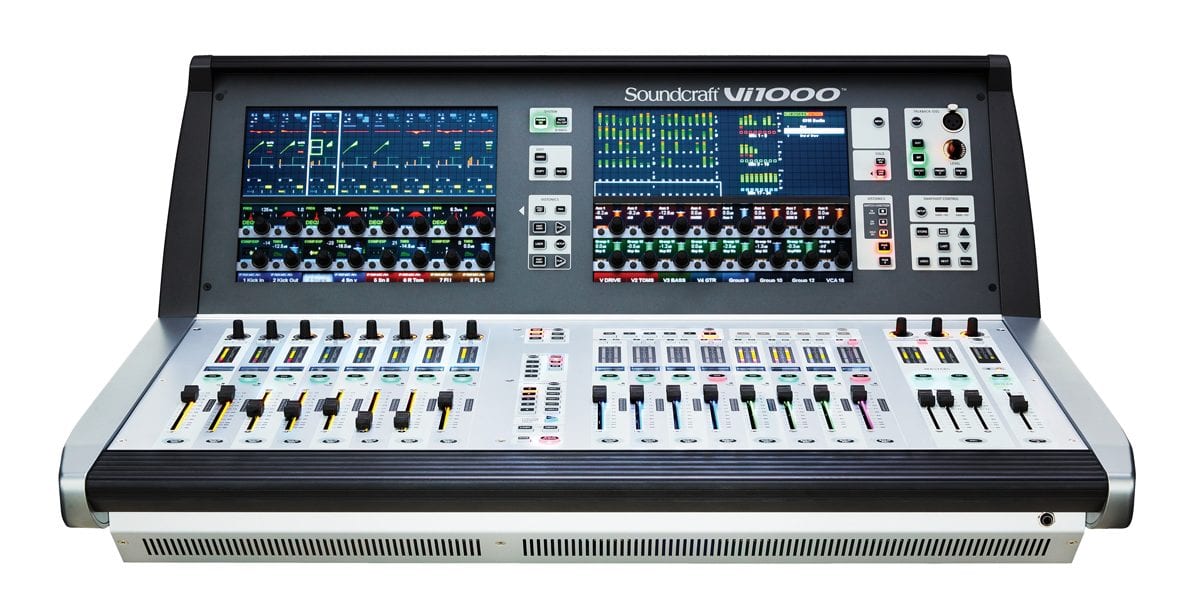

Soundcraft – Vi1000


More details

Similar Products

ssl-system-t_1200px_0|ssl-system-t_1200px_0
  • Solid State Logic

SSL – System T – S500

Next Generation Technology for Large-Scale Broadcast Production System T is the first of a new generation of dedicated broadcast audio production systems from Solid State Logic. For more than 30 years SSL has been at the forefront of innovative broadcast console design, and has incorporated decades of research and customer feedback into the development of System T.
  • System T is a fully networked production environment. New ways to combine multiple Control Interfaces, Processor Cores and I/O devices can be specified to create previously impossible system configurations.
  • Dante AoIP-based Routing & I/O.
  • SSL’s Tempest Engine uses patented Optimal Core Processing for real time CPU based mixing and audio processing.
  • SSL’s pristine SuperAnalogueTM foundations combine with 64-bit floating point processing and mixing to ensure unlimited audio headroom. • System T’s console control surface incorporates the latest multi-gesture touch screen technology and is highly configurable to suit individual preferences.
    Mixers
stacks-image-bcc6051-1200x112-1
  • Nixer

Nixer – RL128

A 1U 19inch rack mounted AoIP monitoring and mixing unit.

4 models are available the RL64, RL128, RL192 and RL256 and each unit can be configured at time of purchase to be Dante or Ravenna

RL Series units allows two modes of operation a mixing mode which can mix up to 256 channels at 48kHz (128 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 259 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.

The outputs of the LR bus are presented to the user via the inbuilt 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RL Series Unit. The mix output is also routed to the AoIP output.

The RL Series units are operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.

A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RL Series unit very quickly.

The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.

Firmware updates of the RL Series unit are achieved via a dedicated USB micro AB connector on the front panel. There is also a dedicated 3.5mm jack socket for the headphone output

Stacks Image 30

On the rear of the RL Series unit there are 4x Primary and Secondary ports for up to 4x AoIP inputs. 2x balanced line outputs on 3 pin male XLRs and AES output also on 3 pin male XLR. These outputs can be configured to follow the main volume settings of the speakers/headphones or they can also be set to follow the main Mute control.

Additionally, there is an AES input via 3 pin female XLR connector

The RL Series unit can be powered via either of the two 2.5mm DC input connectors requiring 24V @ 2A. These inputs also have a screw lock to prevent accidental unplugging. Using both inputs provides redundancy.

    Mixers
Midas_-_M32R_800pxl|Midas_-_M32R_800pxl
  • Midas

Midas – M32R

Digital Console for Live and Studio with 40 Input Channels, 16 MIDAS PRO Microphone Preamplifiers and 25 Mix Buses Digital Console for Live and Studio with 40 Input Channels, 16 MIDAS PRO Microphone Preamplifiers and 25 Mix Buses The ground-breaking M32R console combines legendary MIDAS sound quality with advanced digital technology, future-proof 96 kHz capable open architecture design and industry-leading 192 kHz ADC and DAC converters, creating a revolutionary mid-format live console. M32R features ultra-sleek styling, offering you a truly luxurious mixing experience. High-end construction materials provide unparalleled durability and strength, plus substantially lower weight than comparable consoles.
