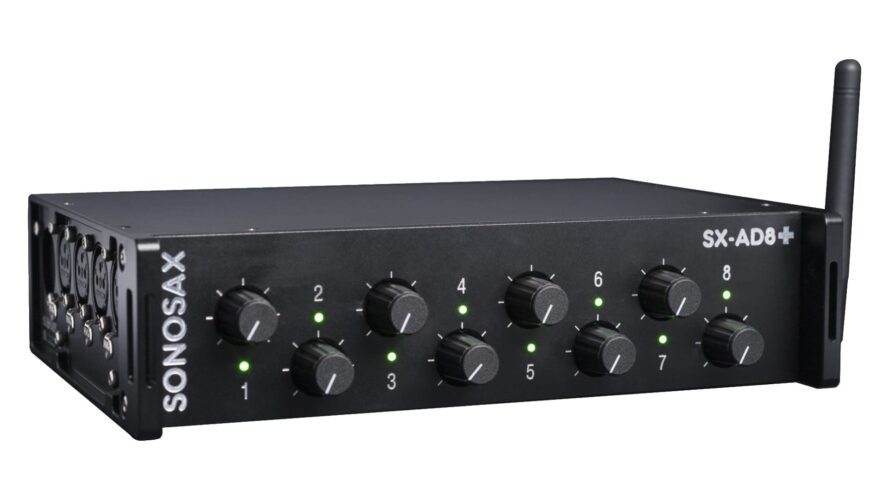

Microphone Preamps


Inputs / Outputs

8x Mic/Line inputs, electronally balanced on XLR-3F, with phase reversal, 48V phantom and LF cut with level control on the front panel
4x AES3 transformer balanced outputs on multi-pin connector
Optional audio over IP on RJ45 connector, for AVB and Dante


135 dB (A-weighted) overall dynamic range
90kHz overall frequency response @192 kHz
40 bits processing
24bits 48/96/192 kHz

User Interface

Using front panel push-buttons
WiFi dynamic web interface
through SX-R4+ user interface


External DC 9..18V on Hirose 4pins
Class 1 IEEE 802.3af PoE (with Dante option board)


Machined aluminum housing
Overall dimension: 200 x 50 x 144.5 mm (7.87” x 1.96” x 5.7”)
Weight: 850g / 1.9lbs
