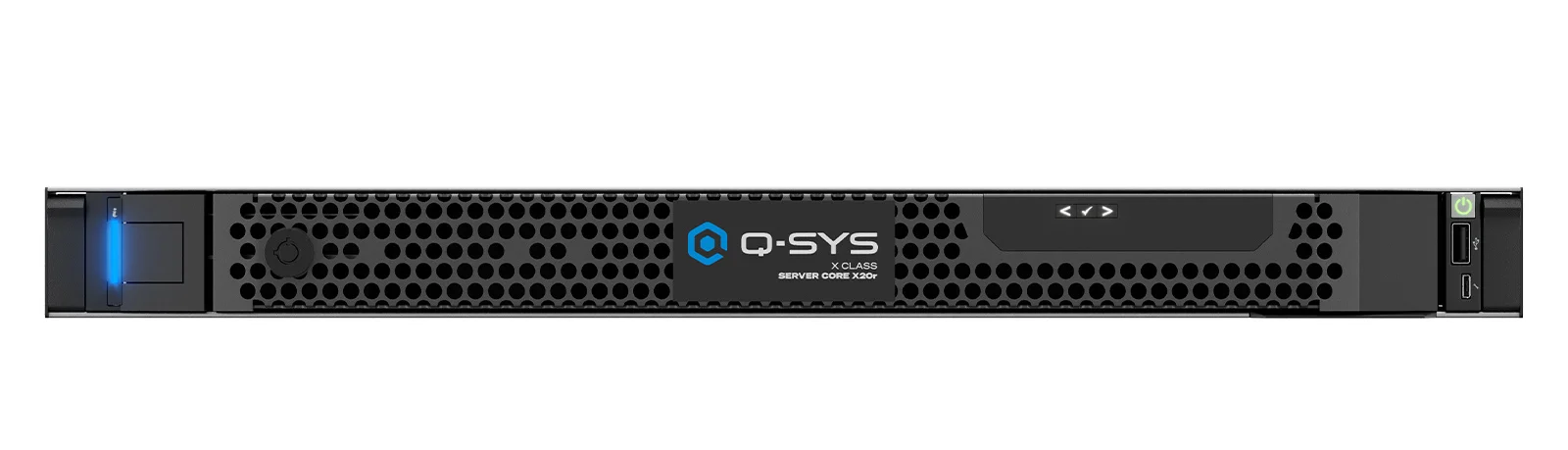

Server Core X20r

I/O Interfaces

More Details

Similar Products

AudioScience - Iyo Dante
  • AudioScience

AudioScience – Iyo Dante 16.0M

The Iyo Dante® is a cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces in a 1U rack mount format. The 16.0M provides 16 balanced analog audio inputs with terminal block connectors

. Each input accommodates microphone through line level signals with a gain range of -60 to +24dBu. +48V phantom power is individually switchable on each input. With Terminal block termination.

RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming status.

The Iyo family feature an embedded web server, allowing configuration and monitoring of input and output levels. Routing is achieved using the Dante Controller.

Power is provided from a built-in universal AC power supply. Redundant power is available using an external 12VDC supply via a locking 2.1mm jack.

All units can also be operated in Livewire+ AES67 interoperability mode.

    I/O Interfaces
See the product
musicrown-df16-16mne|musicrown-df16-16mne
  • Musicrown

Musicrown – DF16.16MNE

Musicrown's DF16.16MNE is a network digital matrix processor. Musicrown's DF16.16MNE is a network digital matrix processor.
  • 32 bit SHARC DSP, 96kHz sampling rate, 24 bit AD/DA convert.
  • 48x48 channels core matrix design, including 16 local analog input channels, 16 local analog output channels, 32 Dante network input channels and 32 Dante network output channels.
  • Fully supports scalable DANTE digital network audio card and AEC automatic echo noise cancellation card, the users can freely configure and choose according to their requirements.
  • Dante digital network audio card configuration is a double standard network interface, which fully supports the function of unite switching and hot backup, hardware system can distinguish automatically, can use immediately when it inserts. Software internal and local analog signal can realize fully sound mixing matrix processing. Each channel has independent DSP processing function.
  • Optional AEC automatic echo cancellation card has powerful automatic echo cancellation function, automatic feedback cancellation and system environmental noise filtering. Effectively reducing the pickup of the speakers and the terrible echo which caused by the reflection of wall. It can also eliminate environmental noise that generated by the feedback of pickup, moreover the noise of air conditioner and fan. Making sure any environment have a noise-free, high definition audio and video system for many conference applications.
  • Each analog input channels with +48V phantom power, MIC/LINK input gain switchable, MIC input sensitivity adjustable.
  • Input including low cut, independent feedback inhibition, PEQ, noise gate, gain, mute, phase, linkage adjustment and volume adjustment.
  • Output including X-over, PEQ, Gain, mute, compressor/limiter, phase, delay, linkage adjustment and volume adjustment.
  • All PEQ Gain, bandwidth, frequency continues adjustment. Type can be select by PEAK, L-SHELF, H-SHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2.
  • All high cut, low cut type can be select by Butterworth, Link witz-Riley, Bessel, slope can be chosen.
  • Noise gate’s threshold, time, ratio can be adjustment for inputs, compressor, limiter, ratio, time can be adjustment for outputs.
  • Maximal delay time 680mS for all output channels.
  • Pre settings can copy for every single channel, every channel can do link adjust.
  • Inside single generator(pink, white noise and 20-20K sine wave, amplitude adjustable).
  • Front panel has level indicator for input/output, USB port, standard Ethernet remote control RJ45 port and RS232&485 at rear panel. IP and ID address can set, network and unite management can realize maximal 255 units link control, but also has remote visit password protected function, make the system more stable and safe.
  • Design has thorough control code, fully support the third-party centre control and management, including all volume control, preset scene recall, parameter inquire and return code, current level return display, every input and output channels control. Etc.
  • 12 user presets, device and each preset can be save and recall alone. System can chose work at immediate storage status, adjusted parameter can store at preset immediately.
    I/O Interfaces
See the product
  • AtlasIED

AZM8-D

The Atmosphere AZM8-D is an 8-zone audio processor and the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces.

    I/O Interfaces
See the product
