Studio Technologies – Model 392 Visual Indicator Unit

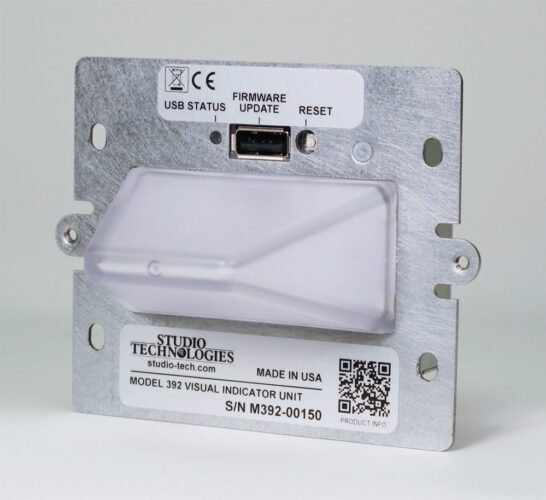

The Model 392 is designed for a variety of applications that require a visual status indicator. An array of red/green/blue (RGB) LEDs provide backlighting for a distinctively shaped polycarbonate (plastic) lens assembly. The Model 392 can serve as a broadcast “on-air” light, a room occupied display, or an intercom call signal indicator. In addition, the unit can serve as an audio level display, with a green, yellow, and red indication of audio level. Full operation requires only a Power-over-Ethernet (PoE) 100 Mb/s data connection. It’s compatible with the popular Dante® audio-over-Ethernet protocol but offers support for a range of additional applications. Configuration is performed using the Studio Technologies’ STcontroller software application. Selected configuration values are stored within the Model 392’s non-volatile memory. A variety of methods are provided to allow control of the Model 392’s LED array. These include using STcontroller’s “virtual” button, receiving network-transported UDP commands, and responding to an audio signal level associated with a Dante digital audio connection.

Key Features

Dante audio-over-Ethernet technology

General-purpose visual indicator with RGB LEDs

On, flashing, and audio level displays

Responds to high-frequency (18-23 kHz) call, UDP commands, and PCM audio data

Mounts in a US-standard 2-gang electrical box

Single Decora-style lens opening dimensions

Configured using STcontroller application

Power-over-Ethernet (PoE) powered
