Product Information

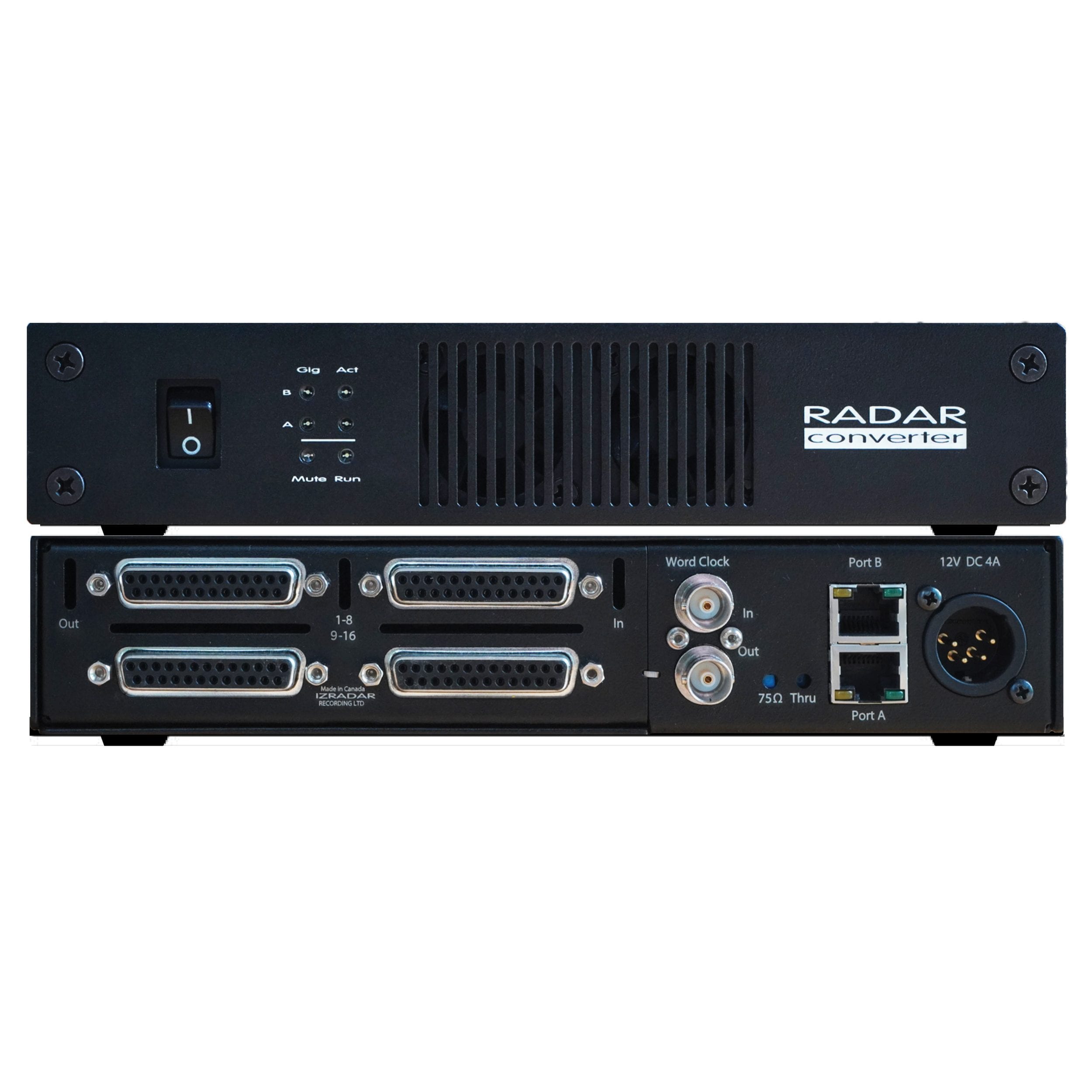

A scalable new interface that combines RADAR analog cards and Dante® connectivity
Similar Products
- Focusrite
Focusrite – RedNet 3
RedNet 3 interfaces your existing digital audio systems and components to the RedNet network, with up to 32 inputs and outputs and full software remote control. The unit includes support for AES/EBU, S/PDIF and ADAT (16 ADAT optical ports support 32 digital channels in and out – even at 96kHz, with S-MUX2) digital audio formats and allows the RedNet system to be synchronised to incoming signal clock or a word clock source.
- I/O Interfaces
- RDL
RDL – AV-NL4
The AV-NL4 is a line-level interface that converts four Dante network audio channels to four balanced audio outputs on XLR connectors. Each channel provides +4 dBu balanced for a network digital audio level of -20 dBFS. Each output is equipped with a selector to set the output to line level or attenuate the output by 50 dB to mic level. Special software is not required to configure the module. The AV-NL4 is a professional grade product for studio quality fidelity and low noise performance.
The AV-NL4 may be powered from an external 24 Vdc power supply, available separately. The AV-NL4 is equipped to operate from a PoE enabled network switch. The AV-NL4 will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an AV-NL4, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply. Valid power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.
The AV-NL4 is constructed in a durable, professional all-metal enclosure suitable for use on stage or in studio, or mounted to any flat surface. For fixed installations, mounting brackets are included. The chassis is designed to protect the front panel slide switches from accidental damage. This full-featured AV-PAK product is engineered and manufactured in the U.S.A for continuous duty in demanding installations.
- I/O Interfaces
- promedias
promedias – proDT 3.5O UP
Flush-mounted connection with 3.5mm jack output from Dante, EDIZIOdue
- AES67 & DDM ready!
- 0x2 LINE OUT (3.5mm Stereo female)
- PoE / 5VDC Input
- Stereo L+R DANTE® Broadway
- Sample Rate: max. 192kHz | Latency: min. 0.25ms
- Network Speed: 1Gb/s / 100Mb/s
- Dimensions: Gr. I (1x1) - 88x88x53mm bzw. 50mm
- Installation dimensions: Ø64x44mm bzw. Ø60x44mm (cutout x depth)
- Color: white (Feller 61), similar to RAL 9010 (also available as standard, e.g. black 60 or option RAL/NCS colour!)
- I/O Interfaces
