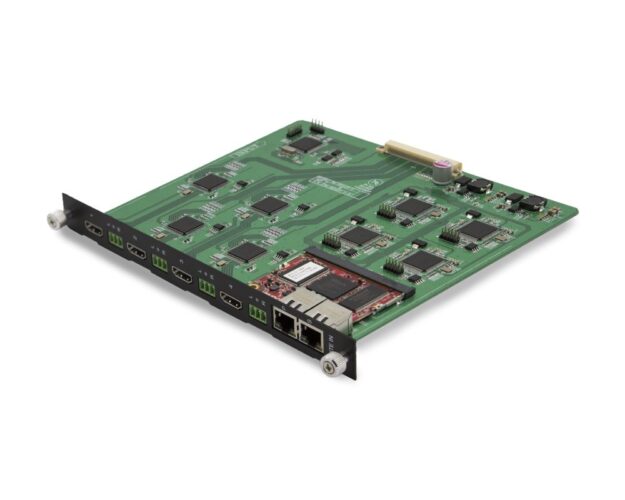

The MAX-AI-DA is a Dante™ Audio with HDMI 2.0 ports input card for Media Axis™ supporting 4K/60 4:4:4 resolutions and Dante™/AES67 IP audio. Each MAX-AI-DA has primary and secondary RJ-45 ports for IP audio, four HDMI ports, and four stereo unbalanced analog ports. Media Axis is the world’s only 4K60 cross platform, multi frame size matrix system with Dante and AV over IP connectivity.
▲ 4 audio (digital signal) inputs, 2 audio (digital signal) outputs, external GPIO
▲ ARM processor cooperates with embedded operating system to expand Cirrus Logic Audio Codec
▲ 24-bit, Σ- △ AD / DA, 44.1kHz, 48kHz, 88.2kHz, 96kHz sampling rates are optional,
▲ I2S digital audio format
▲ Freely set the sampling rate and equipment name
▲ Network audio transmission and control use standard Category 5 network cable (CAT5)
▲ Supports PCM16, PCM24, and PCM32 encodings, and can also use custom encoding formats
With the X-EDAI Ethernet & Dante Audio Interface expansion card, LD Systems complements the possibilities of the X-ECI Ethernet Control expansion card with a Dante Audio Interface with four inputs and outputs. Thus, X-EDAI offers both remote control and access to the DSP settings of LD Systems IPA DSP installation power amplifiers as well as easy integration of the IPA series into existing Dante audio networks.
In conjunction with LD Systems QUESTRA® software, the X-EDAI interface card provides flexible and effective configuration and control of fixed audio installations of various sizes - whether in hotels, restaurants, shopping centres, sports facilities, office environments and more.
The X-EDAI Ethernet Control expansion card has two IP network ports: While the 100 Mbps Ethernet port provides control and DSP access for the IPA installation power amplifiers, the second port can be used to transmit and receive four incoming and four outgoing Dante audio channels. The configuration and routing of the Dante audio channels is done as standard in the Audinate Dante Controller software.
Furthermore, the X-EDAI expansion card has a status LED and an IP reset button for quick and easy troubleshooting. Thanks to the card's asymmetrical pin arrangement, accidental incorrect installation of the interface card in the IPA housing is impossible.
Via the QUESTRA® software, system integrators can access all DSP settings of the IPA installation power amplifier. The possibilities range from signal processing at the input (preamp, compressor, etc.), signal flow in the matrix mixer, output processing (EQ, dynamics, delay, polarity, mute) to priority settings and preset management. In addition, customised control panels can be created in the QUESTRA® software, which can be used by end customers on smartphones, tablets or computers (via the QUESTRA® Panels app) for convenient control of their system.
