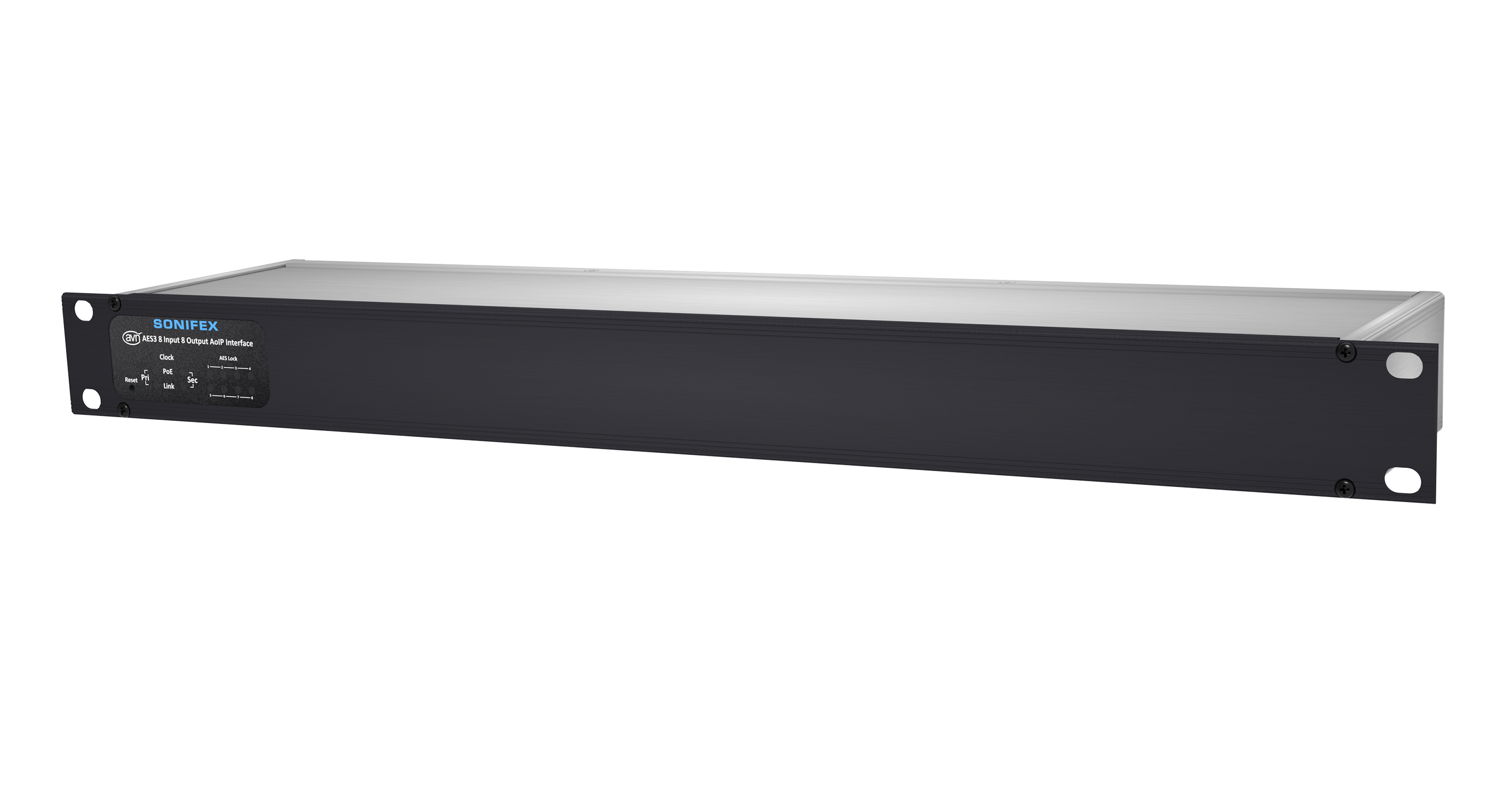

AVN-AESIO8-DNT

Dante Interface Cards, I/O Interfaces

More Details

Similar Products
  • DirectOut

DANTE.MILAN.SRC.IO

DANTE.MILAN.SRC.IO is a dual audio network module for the PRODIGY Series and MAVEN.A to interface with 64 channels each of Dante and MILAN* streams. One module, two audio engines Hosting two audio network boards the module offers 2 x 64 of two different audio protocols - Dante and MILAN*. This allows to interface with two audio protocols in a single A Slot of MAVEN.A or PRODIGY.MC. With the two A Slots of a PRODIGY.MP the coverage can be extended by a third or even fourth audio protocol. Sample Rate Conversion Individual HD SRC for bi-directional sample rate conversion is on board as a standard. The PRODIGY and MAVEN Series also offers low latency sample rate conversion (FastSRC) for input and output. The two audio network boards can be operated at different sample rates. Dual network modules ensure a seamless connection across clock boundaries and different audio protocols on a single module.
    Dante Interface Cards
  • Dante Ch: 64x64
  • 24-bit
See the product
  • Sonifex

AVN-AIO8-DNT

Designed for broadcast, live production, and professional AV environments, the AVN-AIO8-DNT provides a cost-effective and dependable solution for transporting low-latency audio between analogue and Dante network domains.
  • Dante AoIP.
  • 8 x analogue inputs on Neutrik XLR.
  • 8 x analogue outputs on Neutrik XLR.
  • Accepts balanced and un-balanced analogue line signal.
  • Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
  • Powered by PoE on either (or both) Ethernet ports, offering power supply redundancy.
  • Alternative USB-C DC power input, when PoE is unavailable.
  • 2 x RJ45 connector, (1Gb/s Ethernet Port), allowing the unit to operate in redundant or switched modes.
  • PoE and Link LED status indicators for each Ethernet port.
  • Rear-panel mount for single/top locking USB-C cables.
  • Rear-panel cable tie mount to provide strain relief.
  • Clock LED status indicator.
  • Configuration using Dante Controller.
  • AES67 operation & Dante Domain Manager compliant.
  • 1U 19″ rack-mount aluminium chassis.
    Dante Interface Cards
  • Dante Ch: 8x8
  • 16-bit, 24-bit, 32-bit
See the product
  • Adam Hall Group

Adam Hall – LD Systems X-EDAI

With the X-EDAI Ethernet & Dante Audio Interface expansion card, LD Systems complements the possibilities of the X-ECI Ethernet Control expansion card with a Dante Audio Interface with four inputs and outputs. Thus, X-EDAI offers both remote control and access to the DSP settings of LD Systems IPA DSP installation power amplifiers as well as easy integration of the IPA series into existing Dante audio networks.

In conjunction with LD Systems QUESTRA® software, the X-EDAI interface card provides flexible and effective configuration and control of fixed audio installations of various sizes - whether in hotels, restaurants, shopping centres, sports facilities, office environments and more.

The X-EDAI Ethernet Control expansion card has two IP network ports: While the 100 Mbps Ethernet port provides control and DSP access for the IPA installation power amplifiers, the second port can be used to transmit and receive four incoming and four outgoing Dante audio channels. The configuration and routing of the Dante audio channels is done as standard in the Audinate Dante Controller software.

Furthermore, the X-EDAI expansion card has a status LED and an IP reset button for quick and easy troubleshooting. Thanks to the card's asymmetrical pin arrangement, accidental incorrect installation of the interface card in the IPA housing is impossible.

Via the QUESTRA® software, system integrators can access all DSP settings of the IPA installation power amplifier. The possibilities range from signal processing at the input (preamp, compressor, etc.), signal flow in the matrix mixer, output processing (EQ, dynamics, delay, polarity, mute) to priority settings and preset management. In addition, customised control panels can be created in the QUESTRA® software, which can be used by end customers on smartphones, tablets or computers (via the QUESTRA® Panels app) for convenient control of their system.

    Dante Interface Cards
  • Dante Ch: 4x4
See the product
