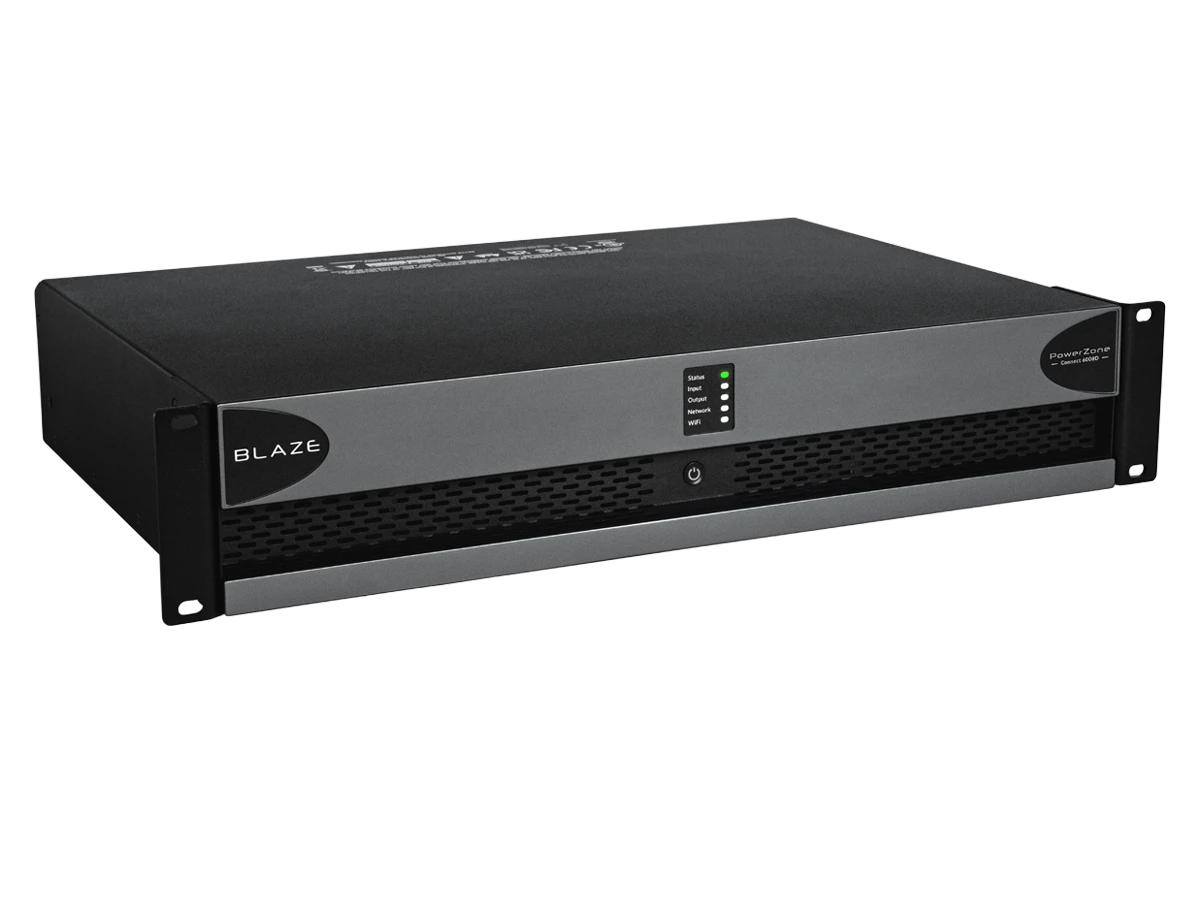

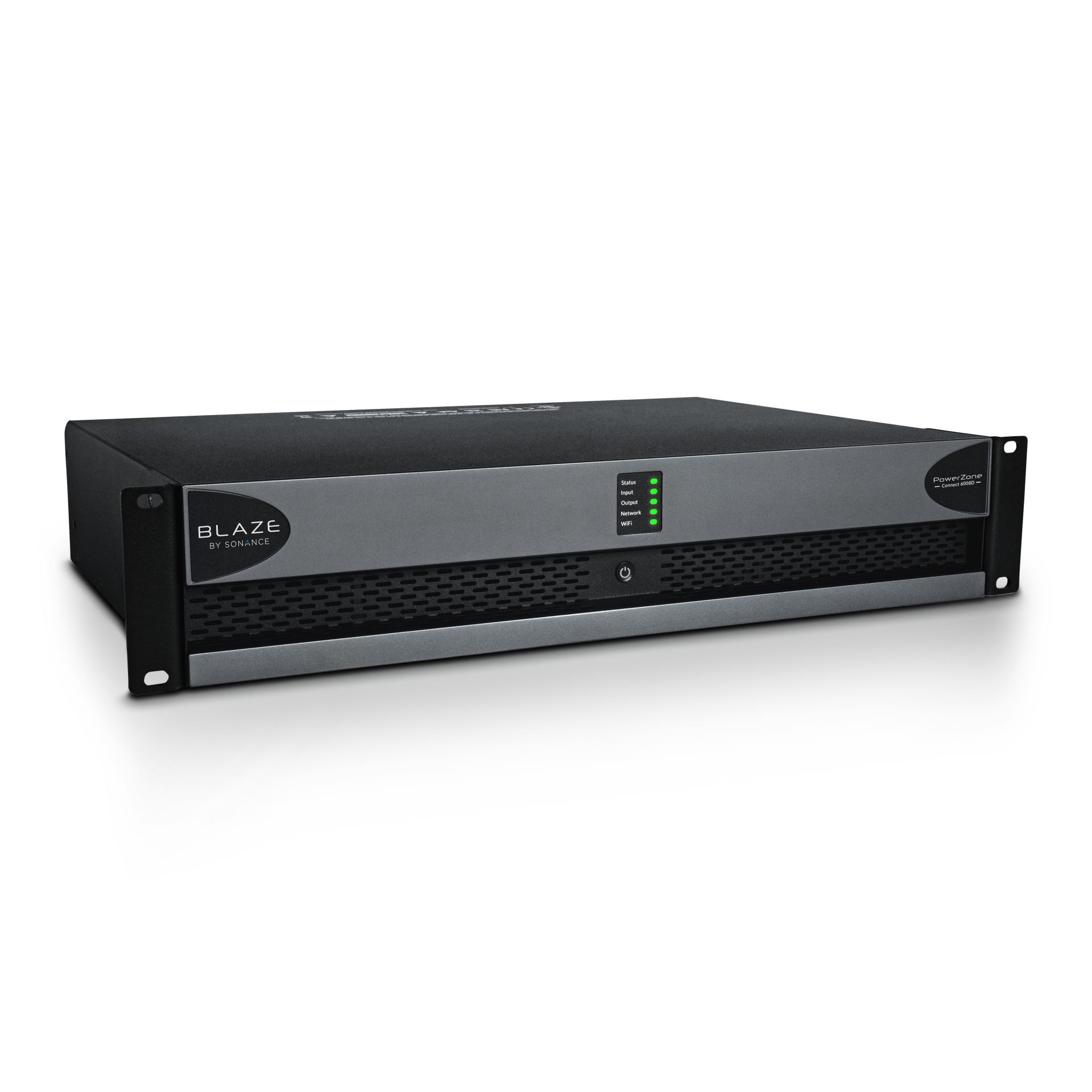

PowerZone™ Connect 6008D

Amplifiers

More Details

Similar Products

vseries
  • RAM Audio

RAM Audio – V6000

RAM Audio® introduces this new generation of professional touring amplifiers based on the field proven QuantaPulse™ Technology: V Series / W Series (with only aesthetic differences).

 These new devices feature two or four channel models, ready for rough handling in the touring world. For this purpose, V/W Series amps implement oversized high efficiency regulated power supply with PFC front end to deliver their full performances independently of mains status.

This together with oversized high efficiency audio power stage, forced front to back cooling through a component-free path with removable front panel dust filters, improved rugged mechanical design with even weight distribution, full digital control from LCD display on the front panel… Resulting in: just power, reliability and robustness for your touring gigs!

V6000 Specifications:

Power tableV6000
2 ohm2x3025W
4 ohm2x1600W
8 ohm2x820W
Bridge 4 ohm1x6050W
Bridge 8 ohm1x3200W
V6000
Frequency Response (power bandwidth ±0.25dB)20Hz – 20kHz
Phase Response (@1W 20Hz-20kHz)±15 deg
Total Harmonic Distortion (20Hz-20kHz)<0.05%
Intermodulation Distortion (SMPTE)<0.05%
Damping Factor (@8ohm)>500
Crosstalk (20Hz-1kHz)>80dB
Voltage Gain26 dB to 38 dB (0.5 dB steps)
Sensitivity (rated power 26/32/38dB Gain)4.0/2.0/1.1V
Signal to noise Ratio (20Hz-20kHz)113dB
Required
AC Mains		Operating Voltage (50Hz-60Hz)
Power On Idling (@230V)0.5A
1/8 rated power (@230V min. Z)7A
Dimensions (WxHxD)483×88.9x460mm – 19×3.5×18.1inches
Weight (Net)10kg – 22.1lb
    Amplifiers
  • AES67 Enabled
See the product
labgruppen-d-80-4l_600px|labgruppen-d-80-4l_600px
  • Lab.gruppen AB

Lab.gruppen – D 80:4L

D 80:4L combines 8000 W of flexible power with latest Lake DSP, Dante digital audio networking and avanced system integrity monitoring. D 80:4L combines 8000 W of flexible power with latest Lake DSP, Dante digital audio networking and avanced system integrity monitoring. The D 80:4L is based on the same foundation of robust, high-power amplifier technologies as our renowned PLM Series – an amplifier platform with a proven record of reliability and sonic performance on the world’s most grueling concert tours and in high-profile, large-scale installations. With the D 80:4L, those same core technologies have been updated and refocused to provide the ultimate solution for the most demanding digitally networked installed sound applications – in stadia, arenas, theme parks, performing arts centers, racecourses and other large commercial sound installations. In addition to legendary Lab.gruppen reliability and sonic excellence, the D Series incorporates newly refined outputs stage technologies along with installation-targeted hardware and software features that optimize amplifier system design and configuration. Together, these new technologies allow systems integrators to minimize both initial equipment costs and end users’ long-term energy consumption.
    Amplifiers
  • Dante Ch: 8x8
  • 24-bit
See the product
marani-MDA4-100M_1200px
  • Marani

Marani – MDA4-1000M

MDA4-1000M is designed to meet the most demanding portable and fixed installation sound systems, providing a full set of value added features such as efficient cooling system, on board DSP and USB/Ethernet for monitoring and control via PC software.  MDA4-1000M is designed to meet the most demanding portable and fixed installation sound systems, providing a full set of value added features such as efficient cooling system, on board DSP and USB/Ethernet for monitoring and control via PC software. The 4 output stages use the well-proven Pascal Class D SA-2 module, obtaining ultra low distortion, high efficiency and also equipped with a full set of circuit protections. MDA4-1000M is also a capable and sophisticated loudspeaker processor, with powerful M716 DSP running 96 kHz / 24 bit and high performance 24bit AD/DA Converters. It offers 4 channels of slope up to 48dB/Oct IIR HP/LP crossover filters, or up to 512 taps FIR filters[FIR coefficients can be imported as .txt file from external application] , RMS compressor, parametric Eqs , alignment delay and white/pink noise internal generator, everything needed to optimize a loudspeaker system. A 12dB headroom process is available.
    Amplifiers
  • Dante Ch: 4x4
  • 24-bit
See the product
