Product Information

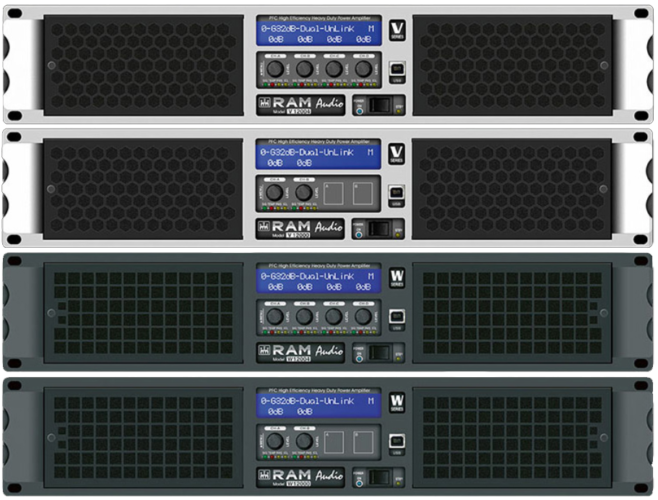

RAM Audio® introduces this new generation of professional touring amplifiers based on the field proven QuantaPulse™ Technology: V Series / W Series (with only aesthetic differences).
These new devices feature two or four channel models, ready for rough handling in the touring world. For this purpose, V/W Series amps implement oversized high efficiency regulated power supply with PFC front end to deliver their full performances independently of mains status.
This together with oversized high efficiency audio power stage, forced front to back cooling through a component-free path with removable front panel dust filters, improved rugged mechanical design with even weight distribution, full digital control from LCD display on the front panel… Resulting in: just power, reliability and robustness for your touring gigs!
V6000 Specifications:
| Power table | V6000 |
| 2 ohm | 2x3025W |
| 4 ohm | 2x1600W |
| 8 ohm | 2x820W |
| Bridge 4 ohm | 1x6050W |
| Bridge 8 ohm | 1x3200W |
| V6000 | |
| Frequency Response (power bandwidth ±0.25dB) | 20Hz – 20kHz |
| Phase Response (@1W 20Hz-20kHz) | ±15 deg |
| Total Harmonic Distortion (20Hz-20kHz) | <0.05% |
| Intermodulation Distortion (SMPTE) | <0.05% |
| Damping Factor (@8ohm) | >500 |
| Crosstalk (20Hz-1kHz) | >80dB |
| Voltage Gain | 26 dB to 38 dB (0.5 dB steps) |
| Sensitivity (rated power 26/32/38dB Gain) | 4.0/2.0/1.1V |
| Signal to noise Ratio (20Hz-20kHz) | 113dB |
| Required AC Mains | Operating Voltage (50Hz-60Hz) |
| Power On Idling (@230V) | 0.5A |
| 1/8 rated power (@230V min. Z) | 7A |
| Dimensions (WxHxD) | 483×88.9x460mm – 19×3.5×18.1inches |
| Weight (Net) | 10kg – 22.1lb |
Specifications
- AES67 Enabled
