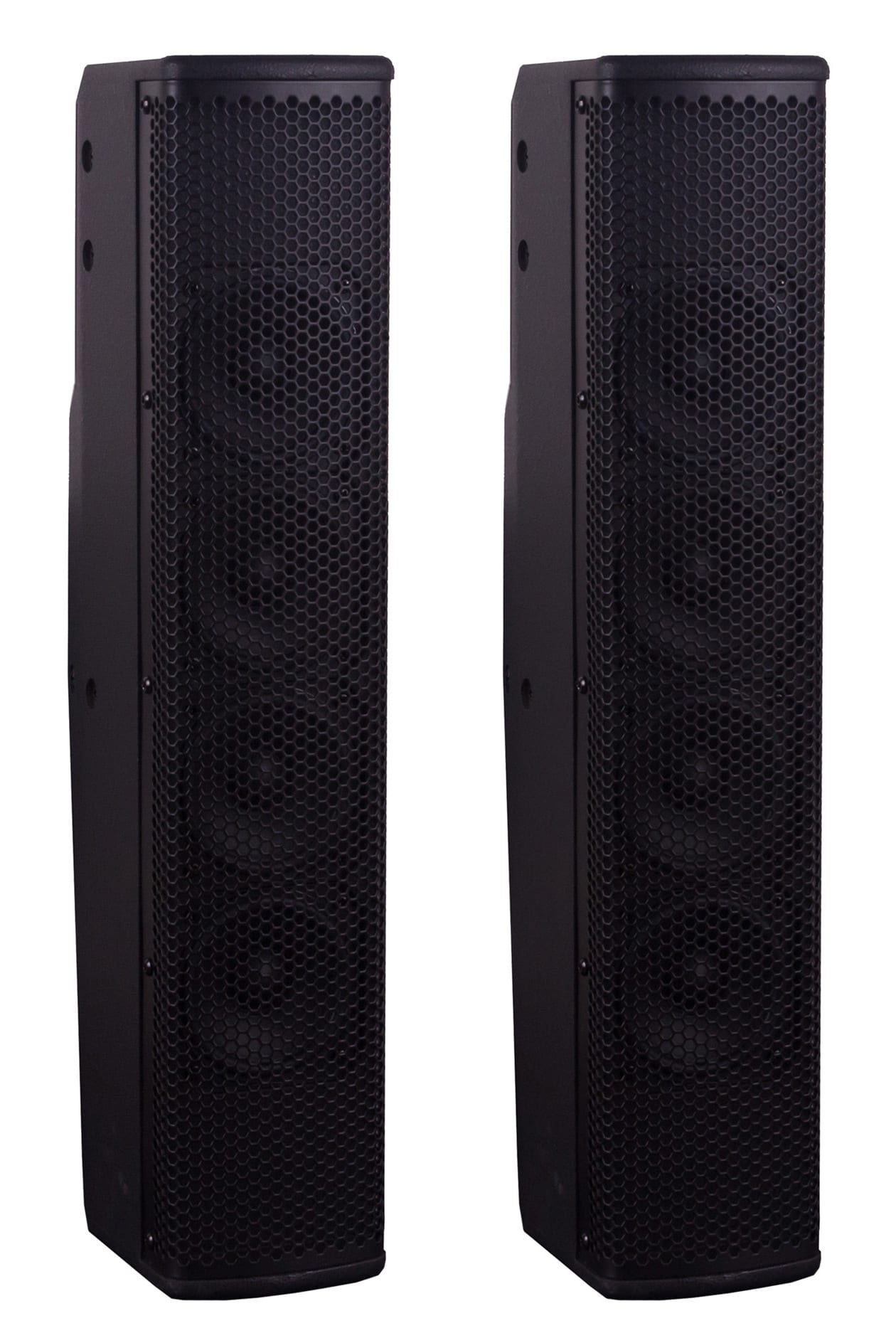

MuxLab – Dante Two Column Speakers PoE, 60W


More details

Similar Products

SpikSub
  • FRENETIK

FRENETIK – Spik Sub

Compact amplified subwoofer, Dante™ processed, PoE+ • Latest generation 60 W class D amplifier board with integrated DSP • Omnidirectional • Wooden cabinet - Euroblock connector for use with external amplification • Base plate for coupling with SPIK 6 (with SMP tube) • Remote control of volume, bass, treble via FRENETIK Adjust software • Board temperature monitoring • No logo on front panel

Technical data:
Type: Amplified Sub, Dante™ PoE+
Power (passive mode): 150 W (8 ohms)
Amplification: 60 W (class D)
Dante™ Receiver: 1 (16 / 24 / 32 bit - 44.1 à 96 kHz)
Transducers: 1 x 8" woofer
Peak SPL capacity (1 m): 119 dB
Bandwidth (-10 dB): 40 Hz - 100 Hz
Input connectors: 1 x RJ45 (Dante™ active mode) + 1 Euroblock (passive mode)
Top plate : for SMP tube
Insert : no
Power supply: PoE+ (IEEE 802.3 at)
Dimensions: 330 x 290 x 400 mm
Weight: 12.00 kg

    Speakers
amk-DT62-A-X
  • AMK

AMK – DT62-A-X

The AMK DT62- A-X loudspeaker is powered by a POE+ network amplifier with Dante™ and AES67 input. It is a 2x2 lay in grille speaker system for easy ceiling tile installation. No external power supply is required. The speaker system has a Class D amplifier which provides efficient use of power. The assembly comes with AMK's CX 602, highly efficient coaxial loudspeaker. This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations. The AMK DT62- A-X loudspeaker is powered by a POE+ network amplifier with Dante™ and AES67 input. It is a 2x2 lay in grille speaker system for easy ceiling tile installation. No external power supply is required. The speaker system has a Class D amplifier which provides efficient use of power. The assembly comes with AMK's CX 602, highly efficient coaxial loudspeaker. This system will solve the issue of having to provide a separate amplifier or I/O interface for speaker installations. The two network speakers broadcast same program under single channel. The CX602 loudspeaker driver has excellent dispersion, wide bandwidth and a smooth frequency response which makes this the top choice for today’s overhead commercial applications. This assembly can be used in wide range of projects for paging and background music applications. The DT62-A-X is ideal for hotels, education, hospitals, retail stores, performing art centers, restaurants, airports, houses of worship, and board rooms. The end users will appreciate both the sound and visual quality of these speakers.
    Speakers
DP02_025_DA-RPO8M
  • Danacoid

Danacoid – DA-PRO8M

Dante Wall Mount Speaker System

Specifications

System Power Efficiency> 85%
Frequency Range±3 dB (70 Hz to 18 kHz)
Maximum SPL114 dB (1 m)
Nominal Sensitivity97 dB (1 W, 1m)
Nominal Coverage Angles (Horizontal×Vertical)100°×60°
Nominal Impedance8 ohms
DriversWoofer: 1×8”; Tweeter: 1×1”
Interface
Ethernet Port1 Dante Audio (RJ-45)
Cascade Port1 Analog Audio (speakON)
Power
Power Consumption50 W, 8 ohms
PoE StandardIEEE 802 3at (PoE+)
PoE SignalingPowered Device (PD)
PoE Power85 W (peak power)
Enclosure
Chassis MaterialWood
Chassis ColorBlack
Chassis Dimensions (Hight×Width×Depth)410×273×192 2 mm
Chassis Weight6 3 kg
Environment
Operating Temperature+32 to +104 °F (0 to +40 °C)
Humidity10% to 90% RH (non-condensing)
Compliance
Regulatory ComplianceFCC, CCC, CE, RoHS
