Product Information

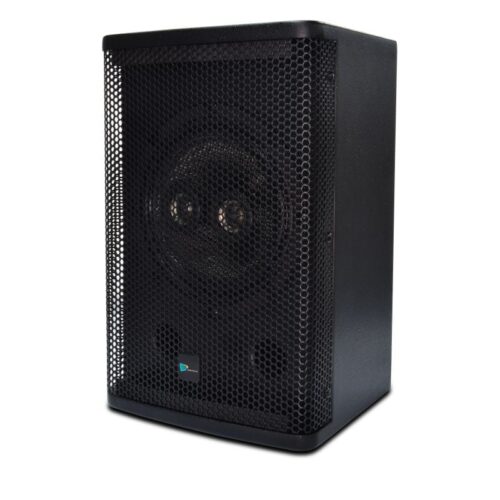

Dante Wall Mount Speaker System
Specifications
| System Power Efficiency | > 85% |
| Frequency Range | ±3 dB (70 Hz to 18 kHz) |
| Maximum SPL | 114 dB (1 m) |
| Nominal Sensitivity | 97 dB (1 W, 1m) |
| Nominal Coverage Angles (Horizontal×Vertical) | 100°×60° |
| Nominal Impedance | 8 ohms |
| Drivers | Woofer: 1×8”; Tweeter: 1×1” |
| Interface | |
| Ethernet Port | 1 Dante Audio (RJ-45) |
| Cascade Port | 1 Analog Audio (speakON) |
| Power | |
| Power Consumption | 50 W, 8 ohms |
| PoE Standard | IEEE 802 3at (PoE+) |
| PoE Signaling | Powered Device (PD) |
| PoE Power | 85 W (peak power) |
| Enclosure | |
| Chassis Material | Wood |
| Chassis Color | Black |
| Chassis Dimensions (Hight×Width×Depth) | 410×273×192 2 mm |
| Chassis Weight | 6 3 kg |
| Environment | |
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Compliance | |
| Regulatory Compliance | FCC, CCC, CE, RoHS |
