Musicrown – DMS DSP

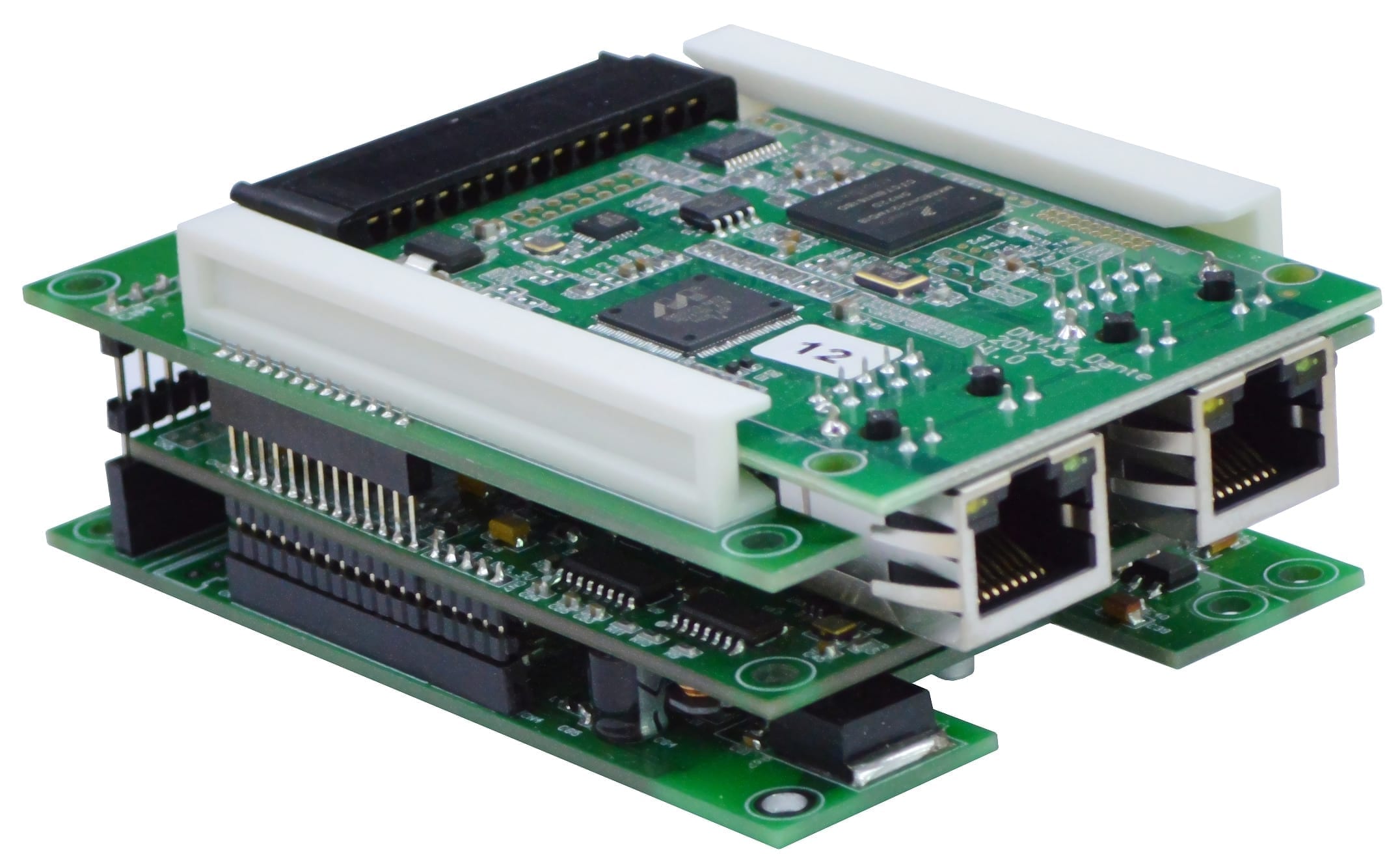

Musicrown’s DMS DSP is a Dante interface card.

Musicrown’s DMS DSP is a Dante interface card.

  • 32 bit SHARC DSP processing, 48kHz sampling rate, 24 bit AD/DA convert.
  • 8X8 core matrix, support 4 input channels, 4 output channels, far-end support 4 channels digital input and 4 channels digital output.
  • Dante digital network port configuration is a double standard network interface, which fully supports the function of unite switching and hot backup. Digital audio channel can support 4IN/4OUT, using 24-bit precision and extremely low network latency.
  • DSP input channel including noise gate, gain, mute, phase, link adjustment.
  • DSP output channel including X-over, 7 band PEQ, Gain, mute, compressor/limiter, phase, delay and link adjustment.
  • All PEQ Gain, bandwidth, frequency continues adjustment. Type can be select by PEAK, H-SHELF, L-SHELF, LOW CUT, HIGH CUT, ALLPASS1, ALLPASS2.
  • All high cut, low-cut filter type can be select by Butterworth, Link witz-Riley, Bessel, slope can be chosen.
  • Noise gate’s threshold, time, ratio can be adjustment for inputs, compressor, limiter, ratio, time can be adjustment for outputs.
  • Maximal delay time 680mS for all input/output channels.
  • Inside single generator(pink, white noise and 20~20K sine wave, amplitude adjustable).
  • Hardware with 4 channel I/O monitor, supporting temperature, level, fault data sampling.
  • 30 user presets, device and each preset can be save and recall alone. Password protection function for high level applications.
  • PC software support USB, network TCP IP, Dante port on-line, real-time display of automatically searched IP address, One-button linkage easy for user’s operation more convenient and swift.
  • Module power supply mode is DC9V-12V 1A.
  • Module size is 100mmx66mmx40mm.

DMS Series:

  • DMS 2.0 – 2 analog input, 2 Dante output
  • DMS 0.2 – 2 analog output, 2 Dante input
  • DMS 2.2 – 2 analog input/output, 2 Dante input/output
  • DMS 4.0 – 4 analog input, 4 Dante output
  • DMS 0.4 – 4 analog output, 4 Dante input
  • DMS 4.4 – 4 analog input/output, 4 Dante input/output
