Product Information
Musicrown’s DL Dante Connect Box series is an I/O interface.
Musicrown’s DL Dante Connect Box series is an I/O interface.
- High quality A/D(24-Bit), D/A(32-Bit) convert, 48KHz sampling rate.
- DL2.2 is 2 channel balanced MIC/LINE XLR input, 2 channel balance XLR output.
- DL2.0 is 2 channel balanced MIC/LINE XLR input.
- DL0.2 is 2 channel balance XLR output.

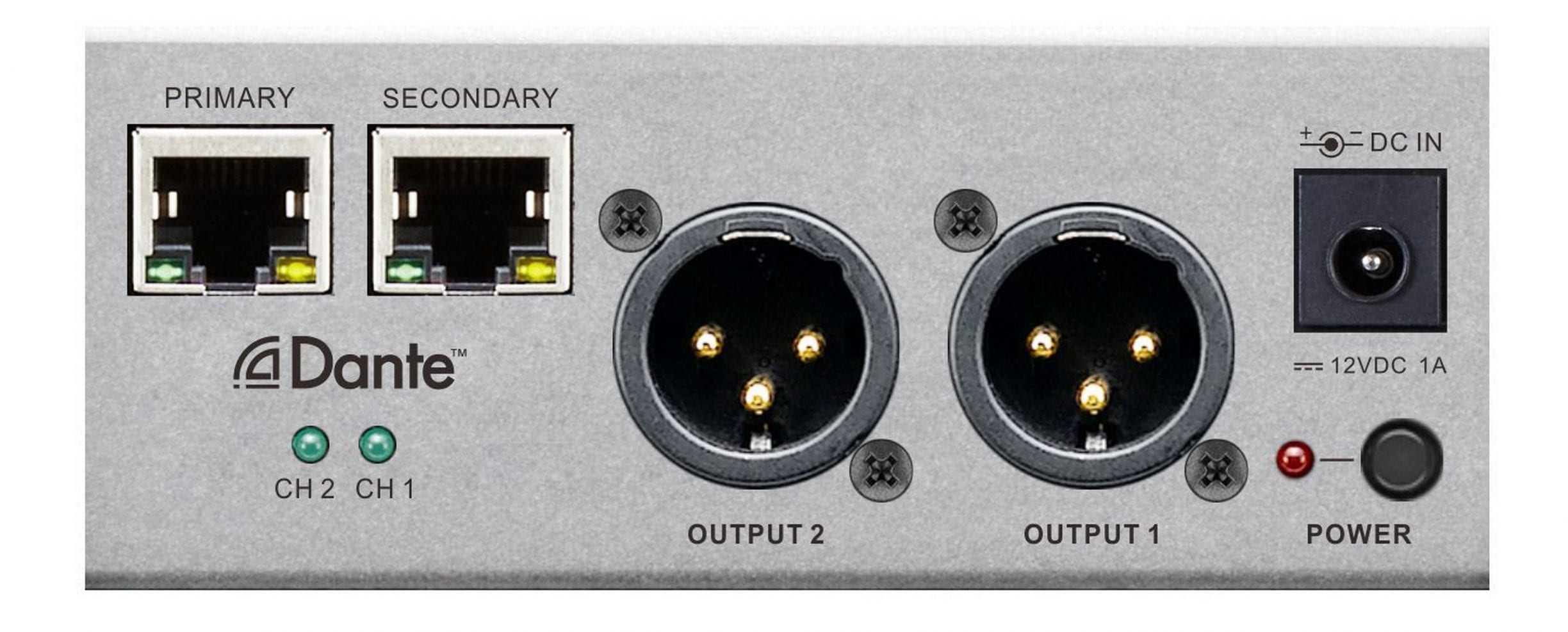

- Dante digital network port configuration is a double standard network interface, which fully supports the function of unite switching and hot backup. Digital audio channel can support 2IN/2OUT, using 24-bit precision and extremely low network latency.
- Each input channel with independent signal light and gain control, also with +48V phantom power controlled by switch. Input channel 1 has high resistance switch select, support guitar, bass, keyboard musical instruments equipment input; input channel 2 extra with two group stereo input port (pair RCA input and one 3.5 socket), supporting media player, notebook computer and other equipments signal input.
- Each output channel with independent signal light.
- Dante can be used in the standard existing network interchanger, has highly interoperability: perfect cooperation with other start using Dante device.
- Outer connect +12VDC power supply, Power switch independently controlled and power indicator light.
DL Series:
- DL2.2 is 2 channel balanced MIC/LINE XLR input, 2 channel balance XLR output
- ● DL2.0 is 2 channel balanced MIC/LINE XLR input
- ● DL0.2 is 2 channel balance XLR output
