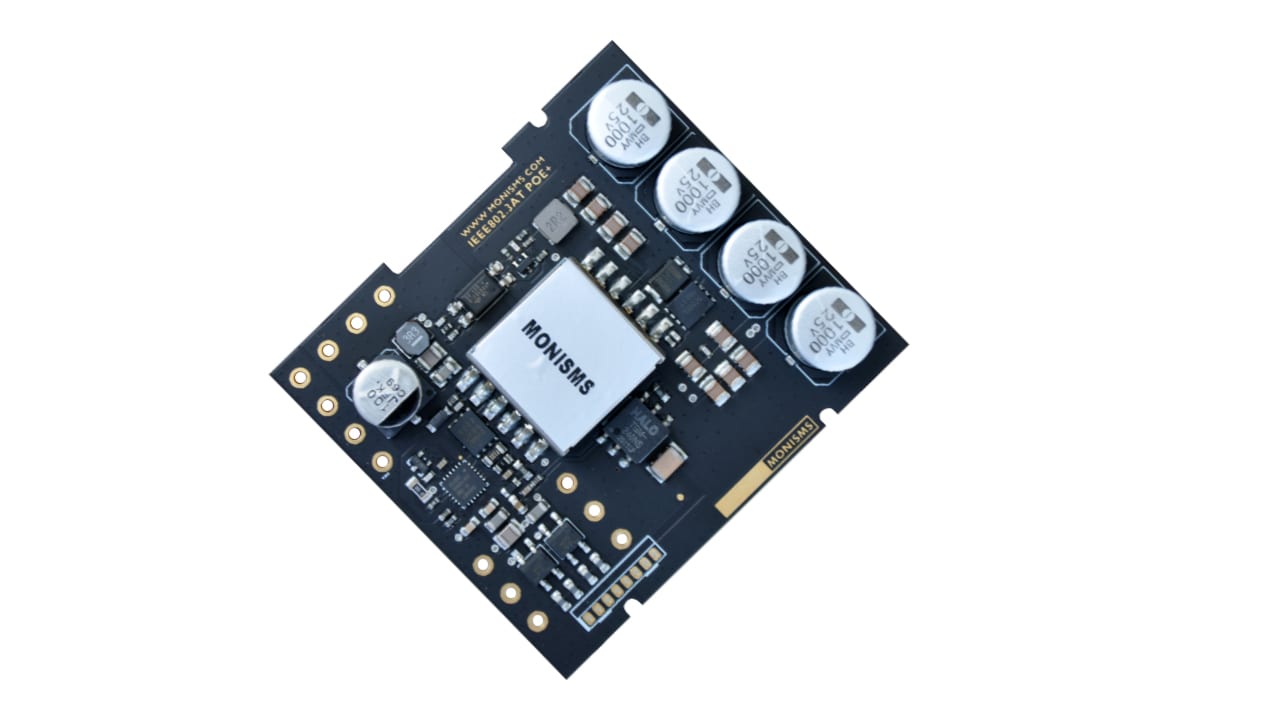

MONISMS – MNS-POE30W14820 DANTE POE POWERED MODULE

I/O Interfaces

More details

Similar Products

fp-nml2p
  • RDL

RDL – FP-NML2P

The FP-NML2 is a high quality Dante network to mic/line interface that converts two Dante channels to two balanced outputs. Each output is individually switch-selectable to mic or line level. The FP-NML2 is ideal for adapting standard audio amplifiers or equipment to a Dante network. Model FP-NML2P operates from PoE. The FP-NML2 is a high quality Dante network to mic/line interface that converts two Dante channels to two balanced outputs. Each output is individually switch-selectable to mic or line level. The FP-NML2 is ideal for adapting standard audio power amplifiers, or other audio equipment, to a Dante network. Each line output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Crosstalk is below the noise floor between all outputs across the entire audio spectrum. The noise floor is better than 80 dB below operating level with greater than 18 dB of headroom. The FP-NML2 operates from 24 Vdc and is available in a PoE version: FP-NML2P. If PoE power and an external 24 Vdc supply are both feeding an FP-NML2P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.
    I/O Interfaces
See the product
dd-rn42
  • RDL

RDL – DD-RN42

The DD-RN42 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, two balanced line inputs on a rear-panel detachable terminal block and two balanced line outputs on front-panel XLR jacks. The module is configured and adjusted using RDL CONSOLE or other network control software. The DD-RN42 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-RN42 is PoE powered, and is available in multiple finishes with optional customized graphics.

Mic/Line to network section

The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are software-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. P48 phantom voltage may be software enabled when an input is set for mic level.

Line to network section

The two rear-panel balanced or unbalanced inputs are each converted to a separate Dante network transmit channel. Control software sets the gain for an input level of either +4 dBu or -10 dBV. RDL Decora®-style jack plates matching the appearance of the DD-RN42 are optionally available for connection of various audio sources to the rear-panel inputs. An input plate may be located together with the DD-RN42 in a triple gang box or may be mounted remotely in a single box.

Network to line section

Two Dante audio channels are converted to balanced line level feeding front-panel XLR jacks. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a software controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 62 dB then OFF. The outputs are connected through a detachable terminal block.

Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.

The DD-RN42 is a professional grade product with RDL mic preamplifiers for studio quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis with dual powder-coated or stainless steel Decora front plates.

The DD-RN42’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.

    I/O Interfaces
See the product
taiden-hcs8600
  • Taiden

Taiden – HCS-8600MIOD

The world's first paperless multimedia congress system, developed by TAIDEN as early as in 2010, has ushered in a new era for the conferencing industry and has been used at many high-profile international conferences and meeting venues, testifying in return to its excellence and superiority.

Not stopping there, TAIDEN later launched its third generation paperless multimedia congress system in 2016. The new system boasts of superb HD paperless

System Features:

  • Especially designed for high-level meetings, such as Summits, congresses, conventions, parliaments and city councils
  • The first Paperless Multimedia Congress System in the world
  • Based on TAIDEN independent intellectual property mMediaCongressTM platform, never subject to viral infection, hacker-proof, safe and reliable
  • Paperless Multimedia Congress Terminal - equipped with a 14" (1920x1080) HD TFT LCD touch panel, offerrng better paperless event experience including document reading, HD video watching, interactive meeting management (discussion, voting, 64 CHs x 2 interpretation) and meeting services
  • Capacitive touch panel supporting multi-touch, convenient and efficient for operation
  • Built-in 8-megapixel camera with flashlight, ingenious video conversation function
  • Based on TAIDEN originated GMC-STREAM Gigabit Multimedia Congress Stream technology, all audio and video signals are transmitted via a Cat.6 Gigabit network cable. GMC-STREAM fully guarantees the real-time performance and stability of the important data stream of the meeting, such as audio, voting information, and control information
  • Based on ingenious CongressMatrixTM technology, integrated n×8 audio matrix processor to realize 8 channels group output function
  • Microphone-array technology for HCS-8368A series
  • E-ink nameplate can be connected
  • Optional printed nameplate
  • Increased reliability with “Closed Loop - Daisy Chain” connection topology
  • 48 kHz audio sampling, 64 audio channels, each with a 30 Hz to 20 kHz frequency response for perfect sound quality
  • Low power consumption design
  • Supports Dante protocol to connect to peripheral digital devices without losing any sound quality
  • Equipped with optical fiber interface to combine two widely separated conference rooms to form one unique coherent system
  • Dual connection backup via optical fiber and Cat.5 cable between Congress Main Unit and Congress Extension Main Unit
  • System power controllable by central control system
  • Supports combining and separating conference rooms
  • Booth combination & share system
  • Connectable to multi channel audio input or output devices for versatile expansion of the system
  • Connection facility for additional condenser or dynamic microphones, expanding user’s application spectrum
  • Integrated USB interfaces in the Congress Main Unit for system upgrading and saving system parameters. Convenient for system maintenance
  • Downward compatible with TAIDEN HCS-4100/50 Fully Digital Congress System
    I/O Interfaces
