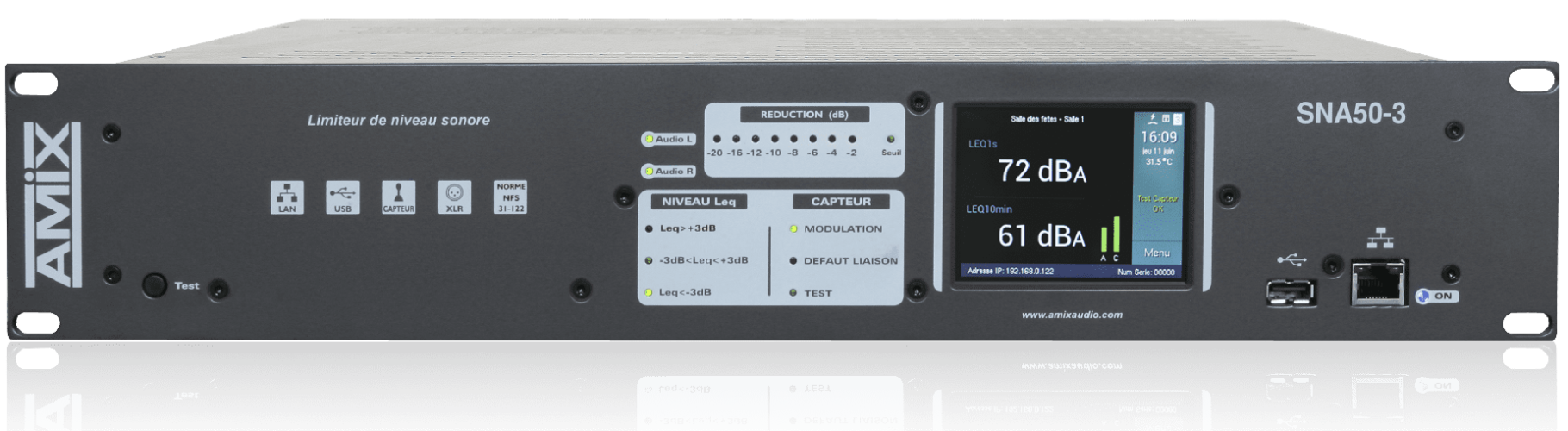

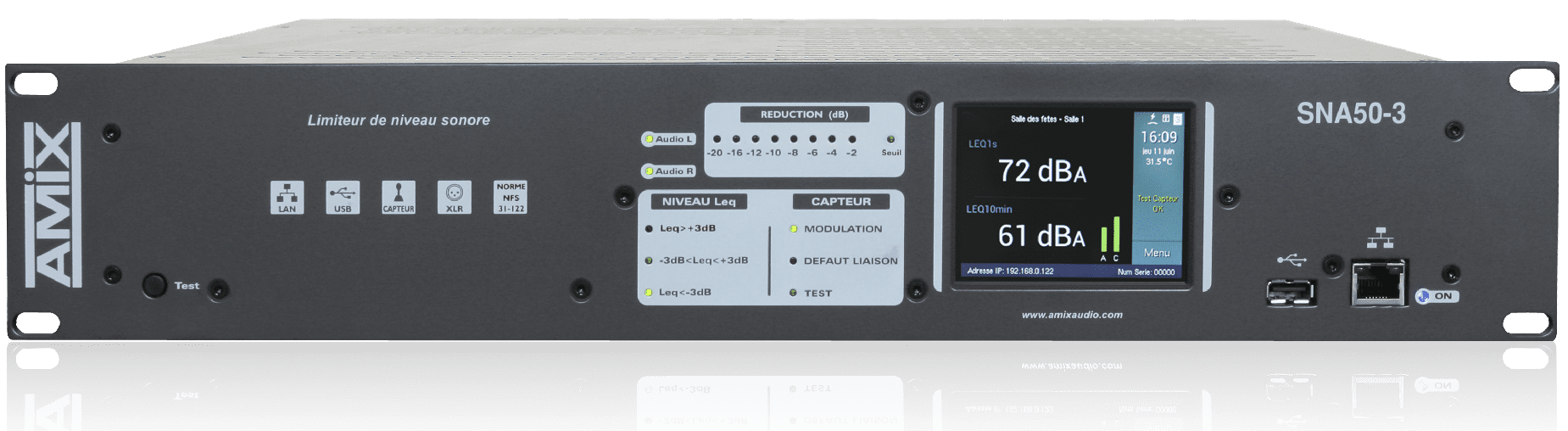

AMIX – SNA50-3R

I/O Interfaces

More details

Similar Products

dark-1616m-front-angle-BAN|dark-1616m-front-angle-BAN
  • Glensound

Glensound – DARK1616M

The DARK 1616M ia an audio interface that provides connections to a Dante or AES67 ip network. The DARK 1616M ia an audio interface that provides connections to a Dante or AES67 ip network. Inputs & Outputs There are 16 digital inputs and 16 digital outputs, available on 8 x AES connections.  There are also 16 analogue inputs and 16 analogue outputs, available in paralell to the digital.  The analogue and digital outputs are always available, and the inputs work on AES input priority. The AES3 inputs have sample rate converters and can accept input frequencies up to 192kHz.  The incoming AES3 circuit is always sample rate converted to match the Dante newtork frequency.  The AES3 outputs are locked to the sample frequency of the Dante network. Connections For ease of cabling, audio I/O is presented on D25 sockets to the AES59 standard (Tascam wiring convention) for which there are a number of reasonably priced break out cables available from multiple suppliers. Remote Mic Amps The analogue inputs are switchable between mic, line and 48v phantom power.  These are controllable across the network via the Dark Controller Windows 10 app.  This allows remote control by an engineer of the input selection, gain adjust and input on/off control.  A meter is also provided for each input on the app, to monitor the input level and help with setting the gain. Network Interface Being designed for resiliant broadcast applications the Dark1616M features both redundant power supplies and redundant Dante network links with link status GPOs (general purpose outputs (solid state relays)). Both primary and secondary network links are provided with both magnetic (copper RJ45) and fibre (SFP) interface connections. The Dante system itself provides a completely transparant redundant link system which means that if the Dark1616M lost its primary link circuit the secondary link would automatically take over with no loss of audio. The primary and secondary network interfaces are routed internally via a network switch and it is possible to set this switch to work as a traditional network switch instead of the default redundant mode meaning that there would be just one link to the Dante network and the other connections of the switch could have other Dante or network devices connected to them. As with all Dante devices once set up Dark1616 units can be directly connected with each other with no external network hardware. Alarms On the front panel 4 bright LEDs indicate the status of the 2 power supplies and the primary and secondary local network links. In parallel to these 4 indicating LEDs there are 4 solid state relay outputs for connecting to external alarm systems for failure notification of a power supply or link fault.
    I/O Interfaces
See the product
TASCAM_-_MM-2D-IN-X
  • TASCAM

TASCAM – MM-2D/IN-X

Built-in DSP 2 mic/line input / 2 line output Dante converter to respond to various needs of contractor market and professional audio scene. Built-in DSP 2 mic/line input / 2 line output Dante converter to respond to various needs of contractor market and professional audio scene. The MM-2D-X is a compact converter that converts 2-channel mic/line input/output signals into Dante signals. With half the size of a standard 1U rack, the MM-2D-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-2D-X supports up to 96kHz/24bit and uses XLR connectors for analog mic/line input/output.
    I/O Interfaces
See the product
Dante官网logo
  • BARE

BARE – G-10AD

Features: The exquisite and minimal structural design highlights the modern atmosphere and conforms to ergonomics. Special electret capacitive dual microphone core design, clear and bright sound quality, high sensitivity; Support mainstream network audio protocols, use network cables to connect to the switch, and transmit audio in the network to realize signal interconnection and intercommunication; Using POE (Power over Ethernet) power supply and analog phantom power supply, digital and analog dual backup, the system is more stable. Provide standard balanced XLR interface to transmit analog audio: Provide standard RJ45 network interface to transmit digital audio: The entire expandable Dante system has 512 two-way audio channels; Original microphone adjustable directivity technology, supports 5 modes: omnidirectional, cardioid directivity, super cardioid directivity, sharp cardioid directivity, figure 8 directivity, etc. Equipped with 5 switch mode options: 1. Power-on mute mode, then press to speak; 2. Power-on speaking mode, and then press mute; 3. Long press the speaking mode to release the mute; 4. Long press the mute mode to release the speech; 5. , Voice control mode; Customizable remote control switch Anti-radio frequency and mobile phone interference; The base is equipped with damping rubber to effectively reduce the noise caused by external vibration to the microphone.
    I/O Interfaces
See the product
