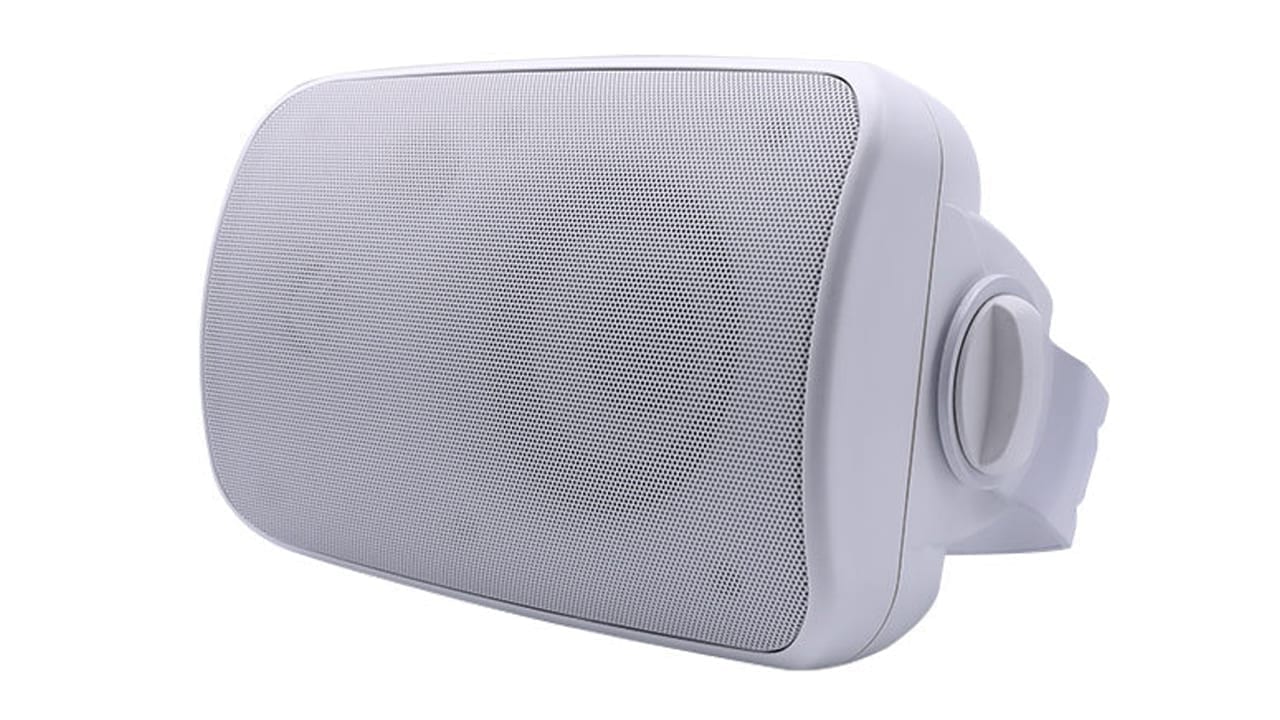

MONISMS – MNS-40011WS


More details

Similar Products

CX108P
  • DMIX

DMIX – CX108P

Speaker model: CX108P

Speaker type: 8”Active coaxial loudspeaker

Unit configuration: LF: 8" unit 2"(50mm)Voice coil

HF: 1.7"(44mm)Voice coil driver

Frequency response: 80Hz-20kHz(-10dB)

Rated power: LF: 140W, HF: 40W

Sensitivity: LF: 95dB, HF: 105dB

Sound pressure level: 121dB (peak)

Radiation Angle: 90°×90°

Crossover point: DSP control

Size (mm) : 344×270×256 (W×H×D)

Module amplifier power: HF:100W,LF:200W (Class D)

Module input link: 1 balanced XLR input / 1 set of Dante signal input and output / 1 set of LINK output

Module DSP control: RS485、USB or Dante

    Speakers
FF1670
  • AVE

AVE – Ascolto FF1670

FF1670 performs 16-channel DSP beam filtering to steer the vertical radiation pattern, making column high directive and featuring main propagation lobe less dependent on the frequency.

FF1670 is equipped with 16 high quality, coaxial loudspeakers, each one mounting 4” neodymium woofer + 1’’ dome tweeter, capable to transmit perfect audio.

FF1670 uses 16 x 70 Wrms class-D audio amplifiers with excellent THD+N and high efficiency (90%) and completely protected against thermal over-load.

FF1670 mounts high-reliable, switching power supply (860 W peak) with universal input (90 – 264 VAC).

FF1670 has analog line input and built-in Dante input both.

FF1670 setup comes easy throughout the AVE Line Array User Control PC software, via RS485 connection.

AVE Line Array User Control includes:
• Beam tilting/broadening control;
• Anti-Reverberation System ARS.
• Delay control;
• 8-biquads user equalizer with high/low shelving and parametric filters;

FF1670 cabinet is aluminum extrusion and it is designed and manufactured in Germany.

    Speakers
CA402D
  • DMIX

DMIX – CA-402D

Technical parameters:

Speaker model: CA-402D

Unit configuration: 2×4"(100mm) Full frequency unit

Frequency range: 110Hz-20kHz

Rated power: 60W

Sound pressure level: 113dB

Sensitivity: 93dB

Coverage Angle: 100°×60°

DSP processing: 1 DSP, with gain, equalization, voltage limit, noise gate, mute control adjustment

Connection mode: RJ45 interface

Size (mm) : 145×344×180 (W×H×D)

    Speakers
