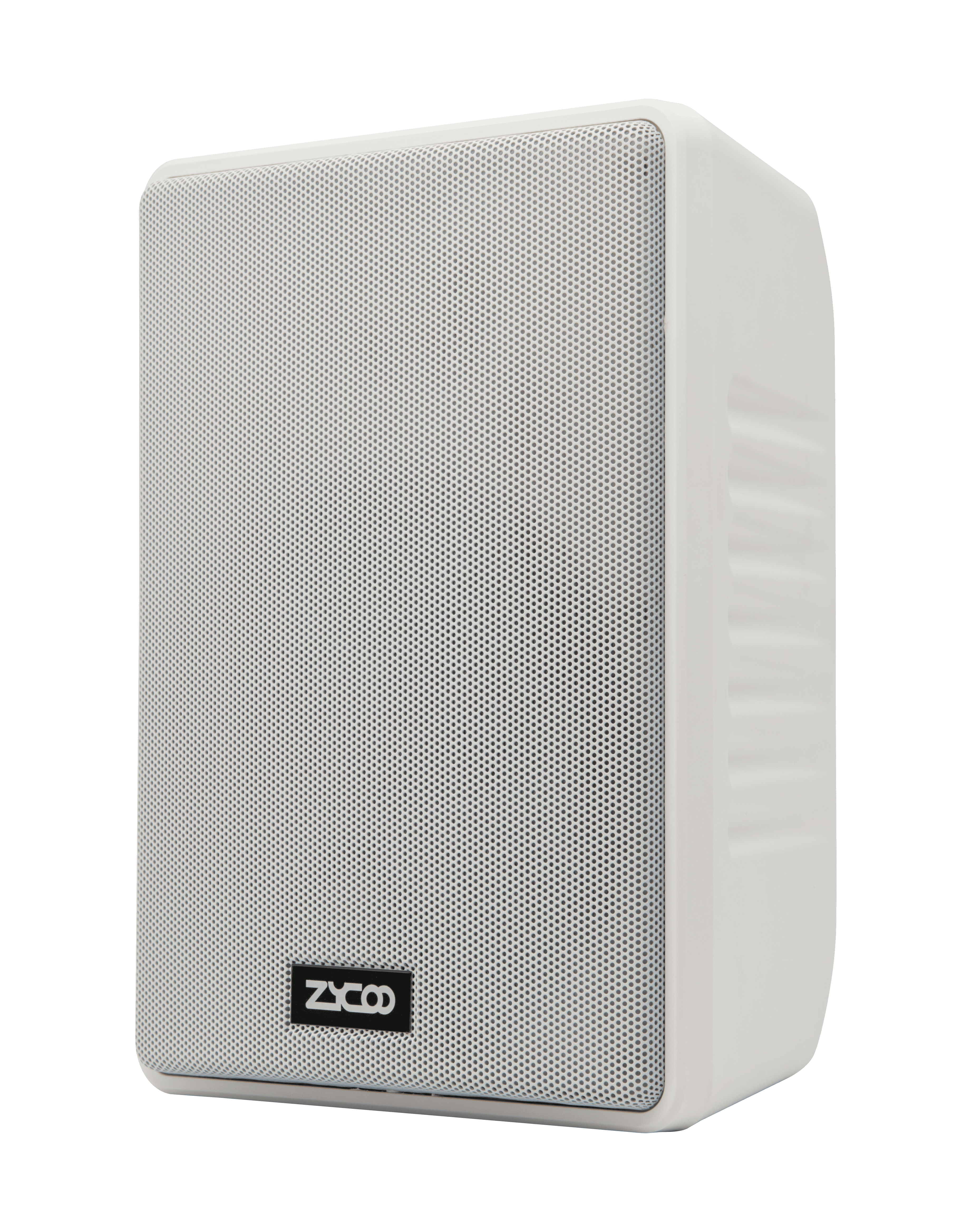

SW15 Cabinet Speaker


More Details

Similar Products

4435A
  • Genelec

4435A

The 4435 in-ceiling loudspeaker combines studio-quality sound with single cable networked convenience. Powered by PoE and compatible with both Dante and AES67 streams, the 4435 can be combined freely on the network with any other Smart IP loudspeaker model. Designed for quick and discreet installation, the 4435 uses PoE to produce uncompromised SPL and acoustic performance. Offering extraordinary coverage, clarity and intelligibility, the 4435 is manufactured in Finland using certified sustainable methods – providing decades of future-proof, reliable service. The 4435 integrates tightly with Genelec Smart IP Manager software – which allows installers to configure an almost unlimited number of rooms, zones, loudspeakers and audio channels, and includes device discovery, a versatile room EQ tool set, system organisation and status monitoring. Day-to-day end user control of basic functions can then be achieved via integration with third party automation systems, or via the simple Smart IP Controller mobile device app.
    Speakers
  • Dante Ch: 2x0
  • 16-bit, 24-bit
GLB218a
  • DMIX

DMIX – GLB218a

Power amplifier:

Rated power (EIAJTHD=1%,1KHZ) : 8Ω: 1200W+1200W 4 Ω: 1600W+1600W

RMS output voltage (THD=1%,1KHZ):98V 8 Ω

THD+N (10% power rating) :<1%

Imd-smpte (10% power rating) :<0.5%

Frequency response:-0.5dB 1dB 20-20khz

SNR:>95dB >98dB

Power input: 220-240VAC 50/60Hz

Speaker model: GLA 312a

Speaker category: Dual 18 "active bass reflex ULTRA-low frequency speakers

Unit configuration: 2x18"(460mm)woofer

Frequency response: 40Hz-200Hz(-10dB)

Rated power: 2000W

Sensitivity: 99dB

Nominal impedance: 4Ω

Sound pressure level 139dB(peak)

Power amplifier: 1500W+1500W

Size (mm) : 1066x561x798(WxHxD)

    Speakers
MLA210a
  • DMIX

DMIX – MLA 210a

Speaker model: MLA 210a

Speaker type: Dual 10 "two frequency active line array loudspeakers

Unit configuration: LF: 2×10" woofer 2.5"(65mm)Voice coil

HF: 1×3"(75mm) Voice coil high frequency driver

Frequency response: 55Hz-20kHz (-10dB)

Rated power: LF: 600W , HF: 90W

Sensitivity: LF: 99dB , HF: 110dB

Sound pressure level: 136dB (peak)

Radiation Angle: 100°×10° (adjustable)

Crossover point: DSP control

Size (mm) : 740×294×547 (W×H×D)

Module amplifier power: HF:300W,LF:1000W (Class D)/8Ω

Module input link: 2 balanced XLR inputs or 2 AES inputs or a set of Dante signal inputs and outputs

Module DSP control: RS485、USB or Dante
