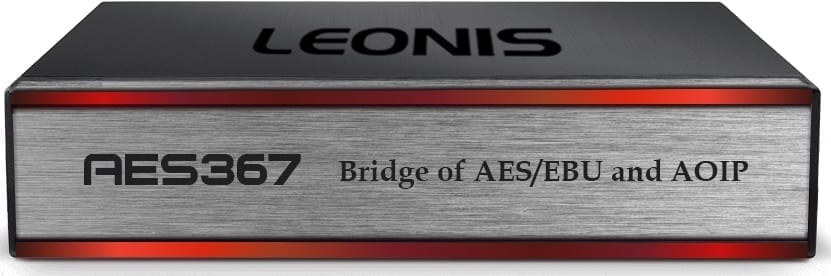

Leonis Cinema – AES367

I/O Interfaces

More details

Similar Products

rdl-sf-nd2|rdl-sf-nd2
  • RDL

RDL – SF-ND2

The SF-ND2 is a digital audio interface that converts two Dante network audio channels to a stereo digital audio output. The SF-ND2 is a digital audio interface that converts two Dante network audio channels to a stereo digital audio output. The output is switch-selectable to provide an AES/EBU on XLR, or coaxial and optical S/PDIF. The switch enables the appropriate output jack and any required electrical and data format conversion. Special software is not required to configure the module. The SF-ND2 is a professional grade product for studio quality performance. The SF-ND2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit. The SF-ND2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems. Features:
  • Converts Two Dante Network Audio Signals to Left/Right Digital Audio
  • AES/EBU or S/PDIF Coaxial or Optical Output
  • Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Digital Audio Output Sample Rate Equals Dante Sample Rate
  • Transformer-Isolated AES/EBU Output
  • Dante Audio Signals Remain in the Digital Domain through the Output
  • Special Software Not Required for Module Setup
  • LED Indicator for Valid Power and Network Sync
  • Operation from PoE Power (Class 0, IEEE 802.3af)
  • Equipped for SysFlex™ Rack Mounting or Surface Mounting
    I/O Interfaces
See the product
digigram-AUDIOWAY-bridge-B3_1200px_0
  • Digigram

Digigram – Audioway Bridge B3

The BRIDGE B3 is an intelligent gateway between AES/EBU digital audio and AES67/Dante™ synchronous audio-over-IP streams. In your infrastructure, the BRIDGE B3 is the ideal solution to connect any digital audio equipment with your Audio-over-IP studio. The BRIDGE B3 is an intelligent gateway between AES/EBU digital audio and AES67/Dante™ synchronous audio-over-IP streams. In your infrastructure, the BRIDGE B3 is the ideal solution to connect any digital audio equipment with your Audio-over-IP studio. Thanks to its redundancy, the BRIDGE B3 can also provide secure distribution of your critical AES/EBU streams on any Dante redundant network.
  • Stainless steel 1U chassis power consumption <50 W
  • Front panel control interface for rapid overview of current status
  • Dual AC/DC power supply 4 configurable GPIOs Wordclock synchronisation 24-bit audio routing: 44.1 kHz to 96 kHz
  • AES67/Dante interface: 64-in/64-out EtherCON connector AoIP stream redundancy Integrated 4-port switch
  • AES/EBU interface: 16-in/16-out mono Wordclock synchronisation and SRC (sample rate conversion) on each input
    I/O Interfaces
See the product
