Lawo - Power Core RP

Product Information

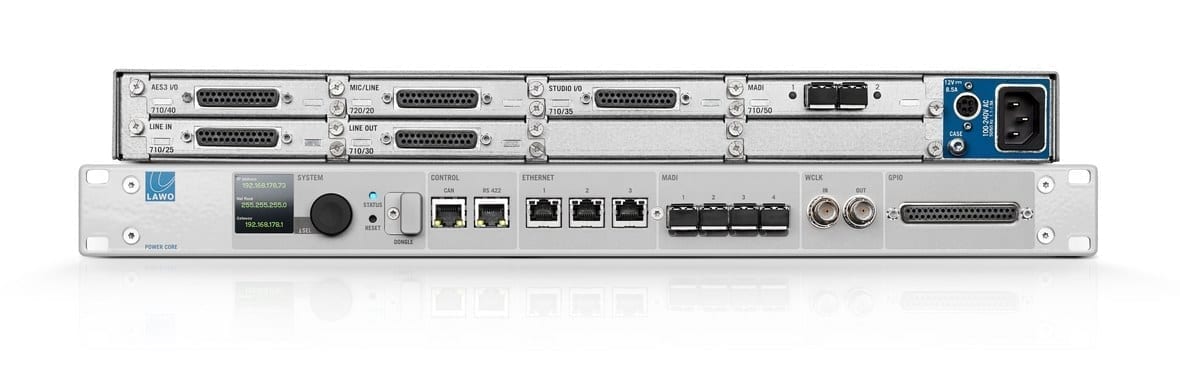

The Power Core RP is a fully featured Remote Production solution for mc² audio consoles with integrated modular I/O, DSP and IP streaming capabilities

The Power Core RP is a fully featured Remote Production solution for mc² audio consoles with integrated modular I/O, DSP and IP streaming capabilities.

Power Core RP combines modular audio I/O and high-density DSP processing functionality into a WAN-capable IP node. The unit’s ST2022-7 network redundancy and its Class-C jitter/network latency robustness eliminate the need for dedicated WAN-gateways from 3rd party suppliers and thus reduces the set-up complexity of remote productions, plus it reduces potential single points of failure. The unit’s comprehensive audio connectivity includes two redundant 1GbE SFP ports for AoIP, four MADI ports plus eight modular I/O slots which can be filled with a mix of Mic/Line, AES3, MADI or DANTE cards. Even a studio card with Mic/Line in/out and two headphone amplifiers is available.

Power Core RP ’s DSP capabilities include 48 fully featured processing channels and provide low-latency on-site monitor and IFB mixing. mc2 consoles at home have full control of all relevant channel parameters (gain, fader, mute, EQ, dynamics, Aux Send Level…) of the DSP node at the remote location. A touch-screen optimized control GUI provides additional control for on-site and remote operation.

The Power Core RP is standards-based and natively supports ST2110-30/-31, AES67 and RAVENNA AoIP networking. The unit is the perfect mate for Lawo’s video contribution solution V__remote4, which provides WAN-capable bi-directional signal transport for 4K/3G/HD/SD-SDI video signals plus a comprehensive set of onboard video processing features.
