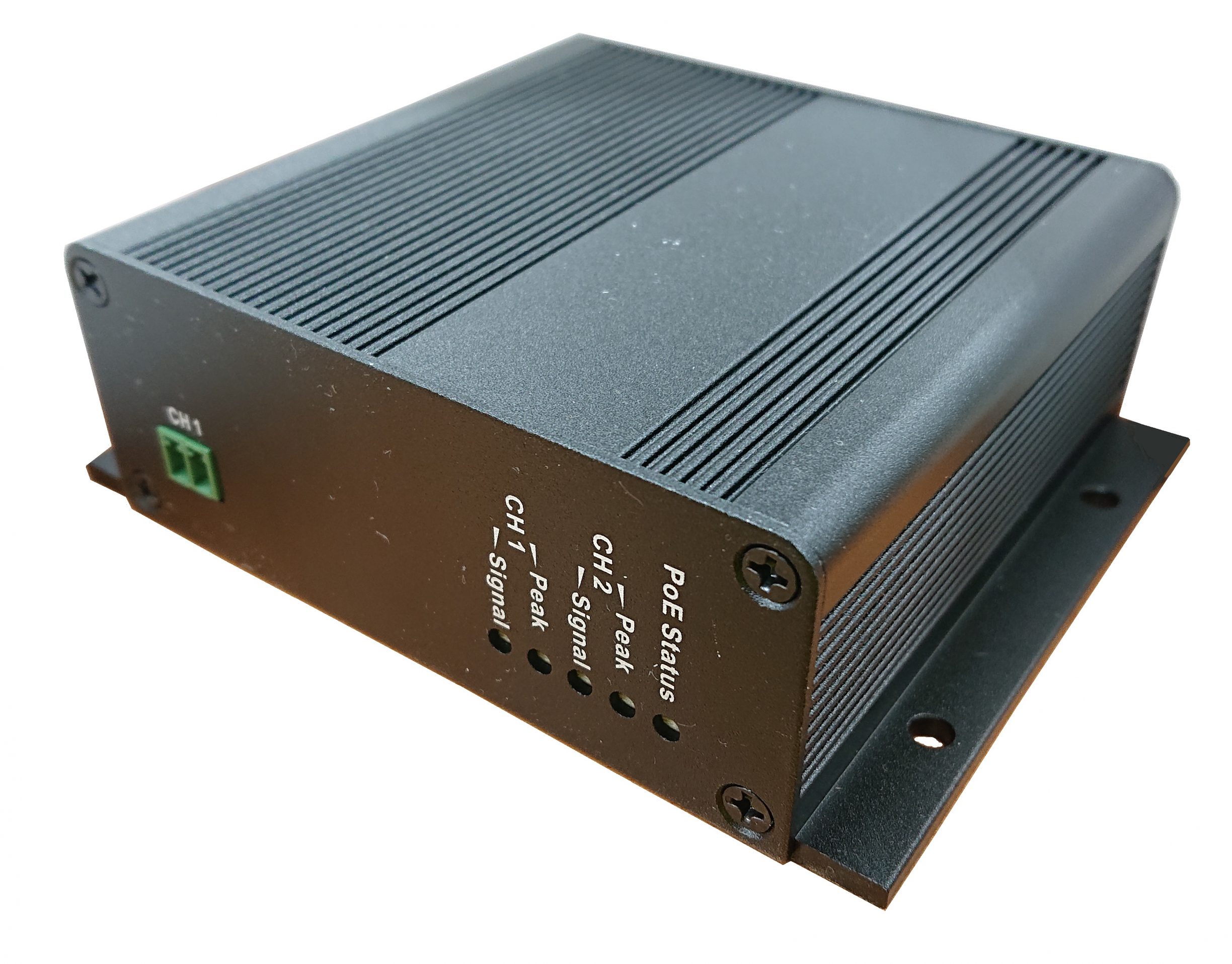

* ED-22, Maximum supports 11Wx2@8Ω or PBTL mode for 22W@4Ω
* Built in Audio DSP for Volume, PEQ, Filter and Input Gain controls
* Dante™ Receiver as the audio input
* 2 sets two pins Euro-block Speaker output
* Signal Noise Ratio: ~ 93 dB
* Crosstalk in stereo mode: ~ – 64 dB
* THD + N (full power): < 0.5%
* Measure size: 114 (W) x 93(D) x 38(H) mm and Weight: 250g.
The intention behind the MAxx series is to offer the highest channel count per rack space in one single unit. This high-density package offers you a completely new design perspective, where it's now possible to deliver a high amount of audio channels in a place where you would never have thought about with conventional solutions.
Offering a comprehensive set of inputs like Dante / MADI / AES3. Paired with a rich set of DSP capabilities including IIR- / FIR-filters with up to 2048 taps which allows to fine-tune every single speaker in room acoustic situations to its best.
The ability to bridge channels denotes the new second-generation MAxx series as the perfect all-round talent for flexible installations.
MA32/HP² delivers 32x 280W @4 Ω combined with a redundancy power supply for double the continuous power or safety-critical projects.
