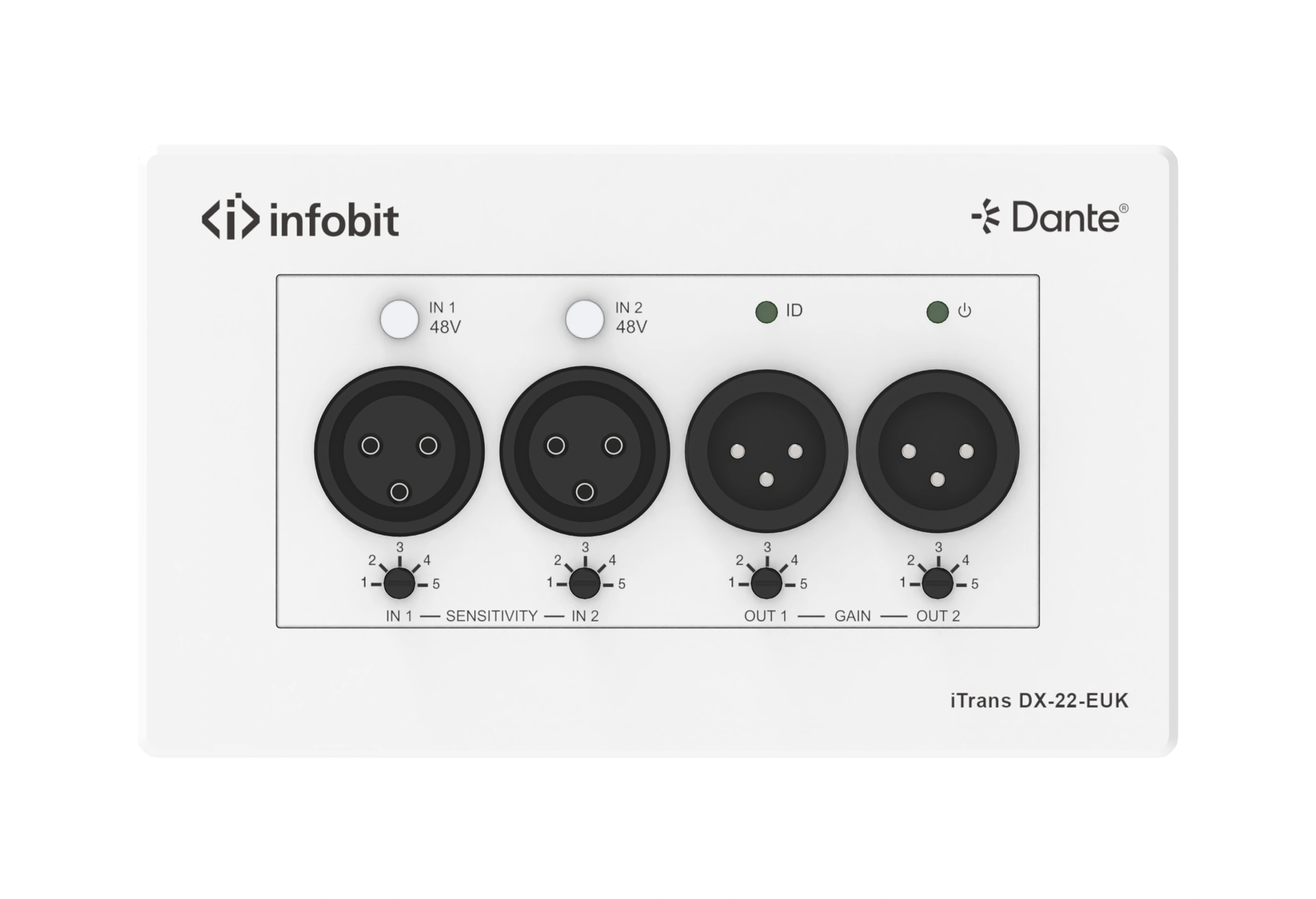

iTrans DX-22-EUK

Wall Plates

More Details

Similar Products
  • AUDAC

NWP400

The NWP400 is a Dante™/AES67 network input panel, featuring a USB Type-C port, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network. Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™. The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP400 is compatible with any PoE network-based installation. Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
    Wall Plates
See the product
dd-rn42
  • RDL

RDL – DD-RN42

The DD-RN42 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, two balanced line inputs on a rear-panel detachable terminal block and two balanced line outputs on front-panel XLR jacks. The module is configured and adjusted using RDL CONSOLE or other network control software. The DD-RN42 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-RN42 is PoE powered, and is available in multiple finishes with optional customized graphics.

Mic/Line to network section

The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are software-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. P48 phantom voltage may be software enabled when an input is set for mic level.

Line to network section

The two rear-panel balanced or unbalanced inputs are each converted to a separate Dante network transmit channel. Control software sets the gain for an input level of either +4 dBu or -10 dBV. RDL Decora®-style jack plates matching the appearance of the DD-RN42 are optionally available for connection of various audio sources to the rear-panel inputs. An input plate may be located together with the DD-RN42 in a triple gang box or may be mounted remotely in a single box.

Network to line section

Two Dante audio channels are converted to balanced line level feeding front-panel XLR jacks. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a software controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 62 dB then OFF. The outputs are connected through a detachable terminal block.

Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.

The DD-RN42 is a professional grade product with RDL mic preamplifiers for studio quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis with dual powder-coated or stainless steel Decora front plates.

The DD-RN42’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.

    Wall Plates
See the product
fp-nml2_400px
  • RDL

RDL – FP-NML2

The FP-NML2 is a high quality Dante network to mic/line interface that converts two Dante channels to two balanced outputs. Each output is individually switch-selectable to mic or line level. The FP-NML2 is ideal for adapting standard audio amplifiers or equipment to a Dante network. Model FP-NML2P operates from PoE. The FP-NML2 is a high quality Dante network to mic/line interface that converts two Dante channels to two balanced outputs. Each output is individually switch-selectable to mic or line level. The FP-NML2 is ideal for adapting standard audio power amplifiers, or other audio equipment, to a Dante network. Each line output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Crosstalk is below the noise floor between all outputs across the entire audio spectrum. The noise floor is better than 80 dB below operating level with greater than 18 dB of headroom. The FP-NML2 operates from 24 Vdc and is available in a PoE version: FP-NML2P. If PoE power and an external 24 Vdc supply are both feeding an FP-NML2P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.
