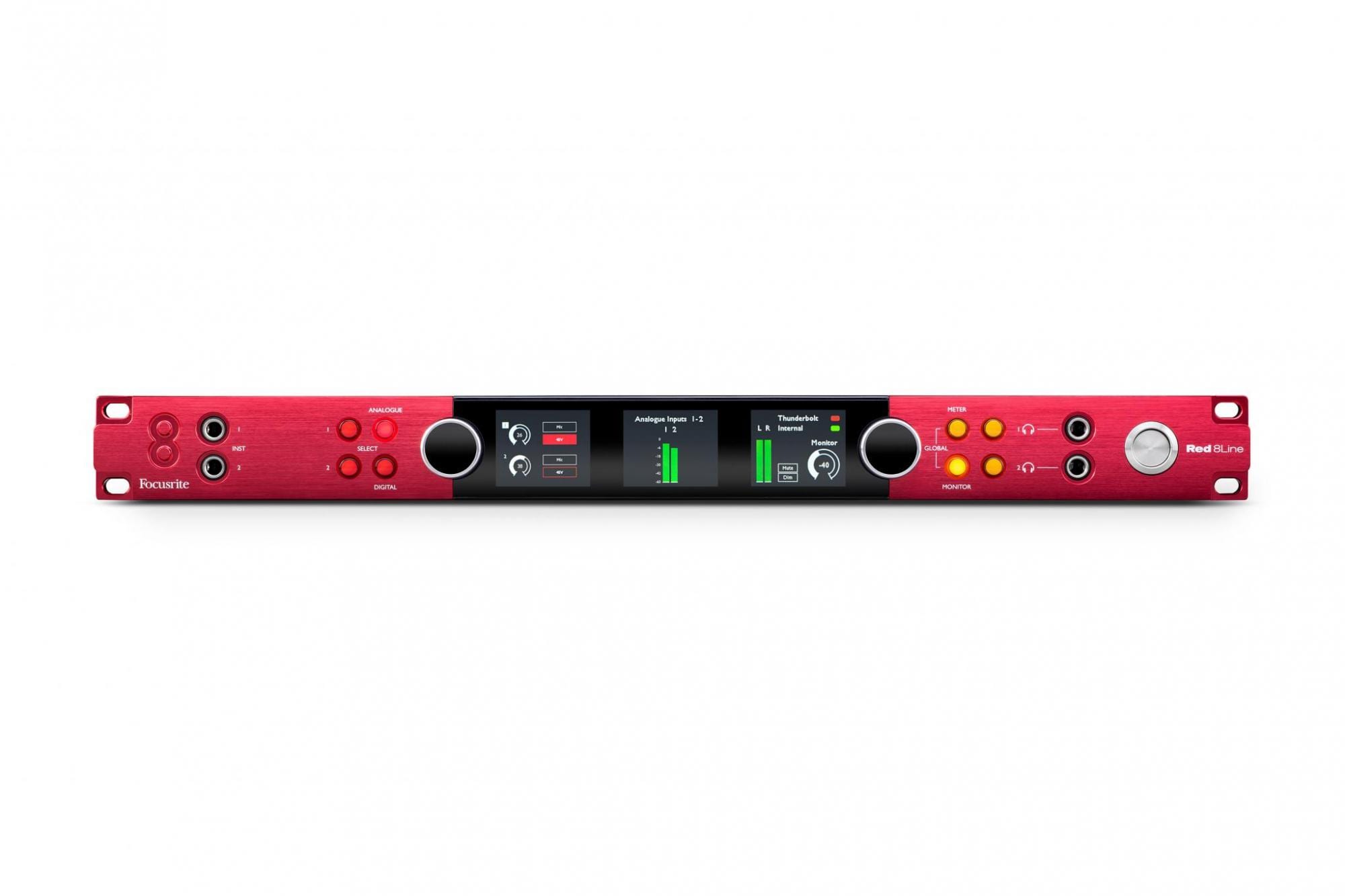

Focusrite – Red 8Line


More details

Similar Products

rdl-dd-bn31_1200px_0
  • RDL

RDL – DD-BN31

The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN31. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom for that input; the second switch selects the mic or line gain range; the third switch sets the gain. The Mini-jack input provides a switch to configure the input for stereo or summed mono. The Mini-jack output provides a switch to configure the output for stereo or left-channel mono. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN31 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN31 is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. The Mini-jack left and right inputs are each converted to a separate Dante network transmit channel. Each input provides a network digital audio level of -18 dBFS for an unbalanced -10 dBV input. The input is equipped with a selector to sum the left and right Mini-jack inputs. The summed signal feeds both Dante transmit channels. Two Dante audio channels are converted to unbalanced line level to feed the front-panel Mini-jack. Each channel provides -10 dBV unbalanced for a network digital audio level of -18 dBFS. The left and right Mini-jack channels are normally fed from Dante receive channels 3 and 4 (stereo). The Mini-jack output is equipped with a selector to feed both output channels from Dante receive channel 3 (mono). This selector may be set from the front of the unit when the cover plate is not installed. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN31. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN31 in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN31 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN31’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
directout-prodigy-mp
  • DirectOut

PRODIGY.MP

PRODIGY.MP is a multifunction audio processor that is designed to address numerous applications in pro audio, broadcast, installation and studio applications. PRODIGY.MP provides flexible I/O, dual networked audio, DSP (EQ, Delay, Limiter, Matrix/Mixing, Inserts…), Sample Rate Conversion, multiple sync generation/handling/distribution and powerful hard- and software.

Housed in a 2U rack frame, it supports networking selectable from Dante, RAVENNA and SoundGrid, while remote options allow access to hardware settings, DSP, SRC, network and a channel-based routing matrix. Fully modular, the hardware can be configured to specific requirements, giving budget savings as well as the flexibility to address changes in the global media environment through future upgrades.

Modular Approach, Maximum Flexibility

I/O includes four local slots for analog line-level/mic input and AES3 modules. With eight channels per module and interface direction, PRODIGY.MP provides up to 32 local inputs and outputs.

The hardware additionally supports two MADI and two network audio options. MADI slots can be equipped with BNC, SC optical and SFP modules, while network audio boards add Dante, RAVENNA/AES67 or SoundGrid, and increase channel capacity to 416 inputs/420 outputs.

DSP, SR & Sync management

With FPGA-based processing, user-definable processing paths and pick-off points, analog and digital inserts, outputs and summing matrices, PRODIGY.MP boasts very low latency DSP for EQ (FIR and IIR filters), Time Adjust/Delays and Limiters. The internal DSP reference can be set to Word Clock or Video input, any network/digital input, or internally generated clock. Sample Rate Converters on AES inputs and free-running MADI and network I/Os are available, allowing simultaneous Media/Format/Sample Rate and Sync conversion, DSP and full routing at up to 192 kHz.

Control Is Key, Multiple Access Locally & Remotely

globcon remote control, a browser-based GUI, and a backlight front panel IPS touch display ensure ultimate usability. Where globcon software offers integrated control of multiple pieces of equipment in Mac/PC/Linux-based systems, an integrated web server supports remote access via HTML and JavaScript-based user interfaces.

The browser-based GUI allows immediate remote access without the need to install software. The management network port is independent of the audio network, and can employ a built-in switch for in-band management of the device.

Third-party remote control protocols can extend system integration further. Automated surveillance and red light control is possible through GPIOs, while standard MIDI input and outputs give communication and active/passive control via MIDI. USB ports on the front and rear panels for connection and control of legacy devices.

Networked Audio & Seamless Interoperability

PRODIGY.MP’s network audio modules accommodate audio formats including DirectOut’s AES67-compliant RAVENNA stack that supports SMPTE ST2110-30/31 and ST2022-7 for redundant streaming. With the 64-channel Dante option, the hardware can be a front-end for audio consoles, or a standalone converter, DSP, SRC and routing system.

Waves Audio’s SoundGrid offers extremely low latency, and 128 channels of audio processing for live sound, studio and broadcast. Waves servers can be connected via SoundGrid for plug-in inserts. Virtual soundcards for macOS and Windows can directly interface with any DAW for multitrack recording and virtual soundchecking.

Secure Operation, Monitoring

Two front panel headphone outputs provide monitoring of any I/O at the device. Two phase-redundant power supplies with separate IEC inlets and AC power switches support hardware redundancy. An internal switch on the network module also ensures redundancy for the network domain. While the Dante module supports Dante redundancy, the RAVENNA module offers stream redundancy in accordance with ST2022-7. EARS (Enhanced Automatic Redundancy Switching) is available for several combinations of inputs.

    I/O Interfaces
  • Dante Ch: 64x64
  • 24-bit
ktdn30
  • Klark Teknik

Klark Teknik – DN 30T

The new DN 30T, a compact Audinate Dante audio transmitter for connecting mic/instrument or line level sources to a Dante network. The DN 30T can be connected to any Dante receiver via a standard CAT5e or CAT6 cable. This same connection can be used to power the device through Power over Ethernet (PoE) or via a 24-volt DC input. The DN 30T has stated 96 kHz analog to digital conversion. Balanced or unbalanced 1/4-inch, RCA or stereo 1/8-inch cables are available for connecting to either a smartphone, tablet, microphone or instrument. Input levels can also be adjusted via the level knob. The compact DN 30T is encased in a thick aluminum extrusion housing to protect the electronics. The enclosure also has rubber corner bumpers. Floor and wall mount brackets are included for fixed installation applications.
    I/O Interfaces
