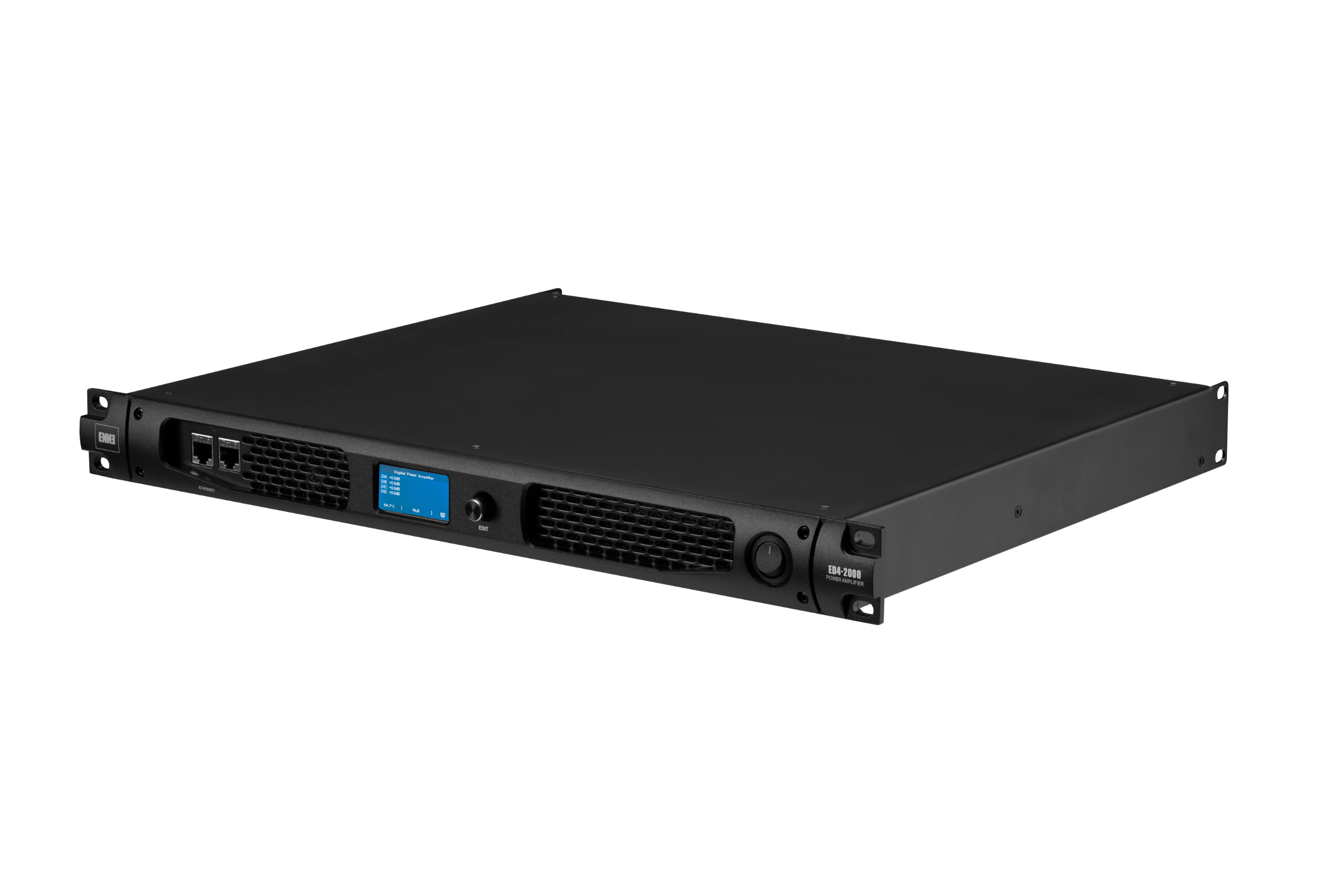

ED4-2000

Amplifiers

More Details

Similar Products

Q2400i
  • DMIX

DMIX – Q2400i

◆ High power density and light body weight, not only can meet the needs of large sound amplification system, but also easy to carry and install;

◆ Powerful DSP functions, including routing control, level adjustment, filtering, equalization, voltage limit, delay, inverting, mute, etc.

◆ Accurate and intuitive status indicator and LCD function display, working status;

◆ Power amplifier built-in DSP front stage, without external signal front stage, you can match different styles of speakers, easily adjust the required effect, and can be stored in the parameters of multiple speakers, convenient access;

◆ Environmental monitoring unit can be used to collect voltage, current, temperature and other parameters;

◆ Precise and sensitive temperature detection and protection, to ensure that the machine work within a safe range during heating.

Technical parameters：

Product Model: Q2400i

Product type: Four-channel Dante digital power amplifier

8 Ω power: 600W X4

4 Ω power: 1000W X4

Analog maximum input： 22dBu

AES maximum input： 0dBS

Dante input： 48k

Frequency response： 20-20KHz +/- 1dB

THD+N： <0.8%

Damping coefficient： 150

Signal to noise ratio： 100

Working voltage： 180V-240V

    Amplifiers
See the product
ashly-nXp-8002_600px
  • Ashly Audio

Ashly – nXp8002d

The nXp8002d is a 2 channel multi-mode amplifier capable of driving 2 Ohm loads at full power. The maximum rated output power is 800W per channel at Low Z, 70V, and 100V mode. There is an automatic but defeatable sleep mode consuming <1W, and instant standby mode controlled by contact closure or software. A switch mode power supply auto-detects 120VAC or 240VAC mains, and a Neutrik® powerCON is used for the AC cord. Each channel has selectable output mode of Low Z, 70V, or 100V, an 80Hz high-pass filter, input limiter, and input gain settings of 26dB, 32dB, 38dB, or 1.4V. Each channel has remote DC level control. Input connectors are Neutrik® XLR/TRS combo jack and Euroblock, while output connectors are Neutrik® speakON. The unit has a front panel power switch and level controls that can be disabled. LEDs indicate Protect, Sleep, Disabled, Com, and Bridge mode status, as well as Temperature, Output Current, Output Signal, and Clipping/Mute status per channel. The unit has Ethernet control with a real-time clock for event scheduling. The unit has serial data remote control, aux preamp outputs, preset control, fault condition logic outputs, optional network audio and AES3 digital audio capability. The unit has 32-bit DSP processing at 48kHz or 96kHz sampling rate. DSP functions include swept load impedance, gain, dynamics including autoleveler and ambient noise compensation, equalization including graphic, parametric, feedback suppressor, and FIR filters, a matrix mixer including automixing, crossover, delay, and a signal generator. The amplifier has temperature dependent variable speed forced-air cooling.
    Amplifiers
  • Dante Ch: 16x16
  • 24-bit
See the product
  • Biamp

Voltera – D-1200-8

8-channel amplified loudspeaker controller, 1200 watts total power. Key Features
  • Audio DSP and amplified loudspeaker controller plus some headroom for Tesira custom processing and hosting of expanders
  • 4 class D channels sharing 1200 watts
  • Power sharing provides up to 50% of total power or 1200 W through any single channel
  • High peak voltage output capability: 145 Vpk
  • Each channel can drive low impedance (2.7, 4, 8, and 16 ohm), 70V, or 100V
  • Each model supports AVB, Dante, and AES67
  • Accurate raised cosine EQ below 160 Hz
  • Group-controlled raised cosine EQ making it attractive for tuning large systems
  • Comprehensive amplifier limiter scheme avoids protective mutes and shutdowns
  • Processor can be sustained through POE – no main power required and no reboots
  • Support for failover-to-analog from networked audio input operation
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)
  • Biamp Workplace Ready
    Amplifiers
  • Dante Ch: 8x8
  • 48kHz-96kHz
See the product
